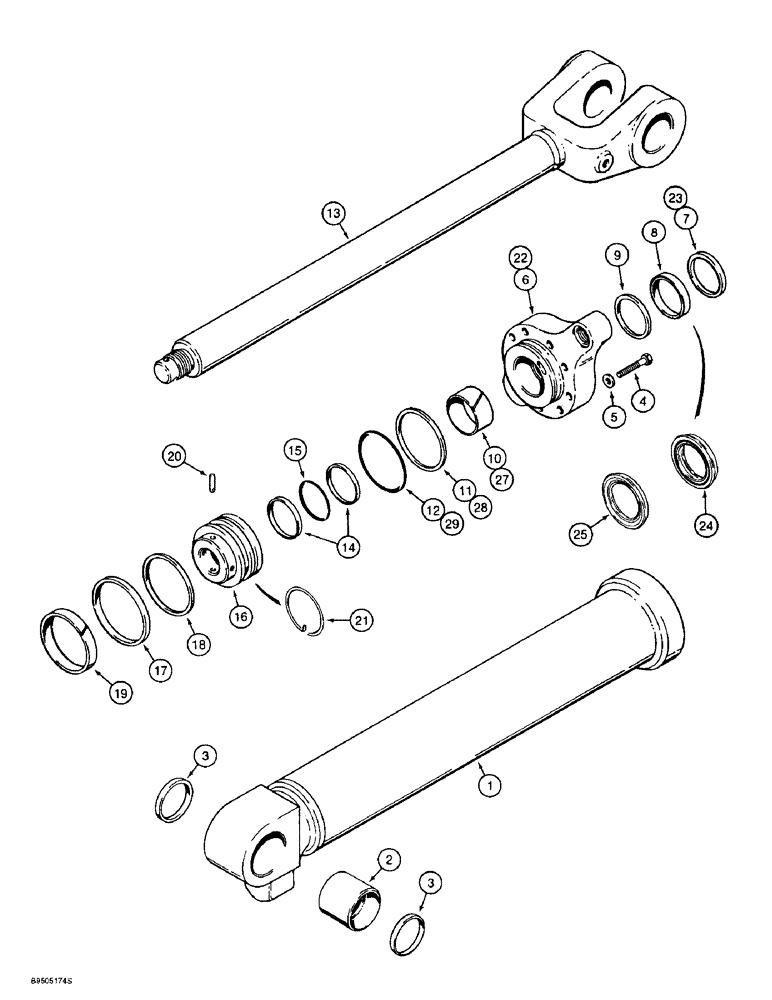

Запчасти Case 621B (8-50) - LIFT CYLINDERS, 1343596C1, 1343595C1 (08) - HYDRAULICS

1343596C1

CYLINDER ASSY.

127 (5) ID x 834 mm (32-13/16 in) stroke, Includes: Ref. 1 - 29, If Used, No Longer Available, Order 280706A1 Cylinder and 280905A1 Tube

1шт.

1343595C1

CYLINDER ASSY.

127 (5) ID x 834 mm (32-13/16 in) stroke, Includes: Ref. 1 - 29, If Used, No Longer Available, Order 280707A1 Cylinder and 280904A1 Tube

1шт.

1

1343597C1

TUBE

Cylinder, 1343596C1 and 1343595C1 Cylinders, Includes: Ref. 2

1шт.

2

L127015

BUSHING,76.38mm ID x 89.03mm OD x 82mm L

tube

1шт.

3

D95148

WIPER SEAL

seal

2шт.

4

28-944

BOLT,Hex, 9/16" - 18 x 2-3/4", Gr 8

9шт.

5

G110688

WASHER

16 x 25 x 2.54 mm

9шт.

G110365

CYLINDER END CAP

Gland Assy, cylinder, If Used, No Longer Available, Order Ref. 22 G110366 Gland, and 1543305C1 Seal Repair Kit, Includes: Ref. 6 - 12

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

For identification purposes, Ref. 22, G110366 gland has a groove on the outside rim around the wiper. G110365 gland assembly does not have a groove.

1шт.

6

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

7

D95148

WIPER SEAL

seal

1шт.

8

G109054

SEAL,76.15mm ID x 88.95mm OD x 10.69mm Thk

U-cup, piston rod

1шт.

9

G109015

SEAL,75.69mm ID x 91.82mm OD x 4.9mm Thk

buffer

1шт.

10

G102429

BUSHING,76.2mm ID x 79.27mm OD x 37.85mm L

, Serial Range: gland-rod

1шт.

11

G107970

BACK-UP RING,120.27mm ID x 127.13mm OD x 1.4mm Thk

Gland O-Ring

1шт.

12

238-5247

O-RING,0.139" Thk x 4.609" ID, -247, Cl 5, 75 Duro

1шт.

13

1343565C1

PISTON ROD

76 mm (3 in) diameter

1шт.

14

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

Backup

2шт.

Part of Gasket Kit P/N 1543305C1

1шт.

15

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

1шт.

Part of Gasket Kit P/N 1543305C1

1шт.

16

G110368

PISTON

rod

1шт.

17

1986753C1

SEAL,Locking, 123.8mm ID x 128.52mm OD x 6.96mm Thk

piston, Replaces G102091 seal

1шт.

Part of Gasket Kit P/N 1543305C1

1шт.

18

G102092

RING,Square, 5.28mm Thk x 113.92mm ID

backup, piston seal

1шт.

Part of Gasket Kit P/N 1543305C1

1шт.

19

G102090

RING,127mm OD, Ext

wear, Serial Range: piston-tube

1шт.

Part of Gasket Kit P/N 1543305C1

1шт.

20

G106602

LOCK PIN

locking, Serial Range: piston-rod

1шт.

21

G110333

CIRCLIP

retaining, locking pin

1шт.

NSS

NOT SOLD SEPARAT

Gland Assy, Cylinder, Includes: Ref. 22 - 29, If Used

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

For identification purposes, Ref. 22, G110366 gland has a groove on the outside rim around the wiper. G110365 gland assembly does not have a groove.

1шт.

22

G110366

CYLINDER END CAP

Gland, Cylinder, Uses Ref. 24 and 25

1шт.

The cylinder assembly part number is stamped on some cylinder glands or tubes.

1шт.

For identification purposes, Ref. 22, G110366 gland has a groove on the outside rim around the wiper. G110365 gland assembly does not have a groove.

1шт.

23

D95148

WIPER SEAL

seal

1шт.

Part of Gasket Kit P/N 1543305C1

1шт.

1542881C1

SEAL KIT

NSS, Order 1543305C1 Seal Kit, Includes: Ref. 24 and 25

1шт.

Part of Gasket Kit P/N 1543305C1

1шт.

24

NSS

NOT SOLD SEPARAT

Seal, Rod, order 1543305C1

1шт.

25

NSS

NOT SOLD SEPARAT

Seal, Buffer, order 1543305C1

1шт.

27

G102429

BUSHING,76.2mm ID x 79.27mm OD x 37.85mm L

, Serial Range: gland-rod

1шт.

Part of Gasket Kit P/N 1543305C1

1шт.

28

G107970

BACK-UP RING,120.27mm ID x 127.13mm OD x 1.4mm Thk

Gland O-Ring

1шт.

Part of Gasket Kit P/N 1543305C1

1шт.

29

238-5247

O-RING,0.139" Thk x 4.609" ID, -247, Cl 5, 75 Duro

1шт.

Part of Gasket Kit P/N 1543305C1

1шт.

1543305C1

SEAL KIT

Includes: Ref. 14, 15, 17-19, 23, P/N 1542881C1, 27-29 and an instruction sheet, used with G110366 gland

1шт.
