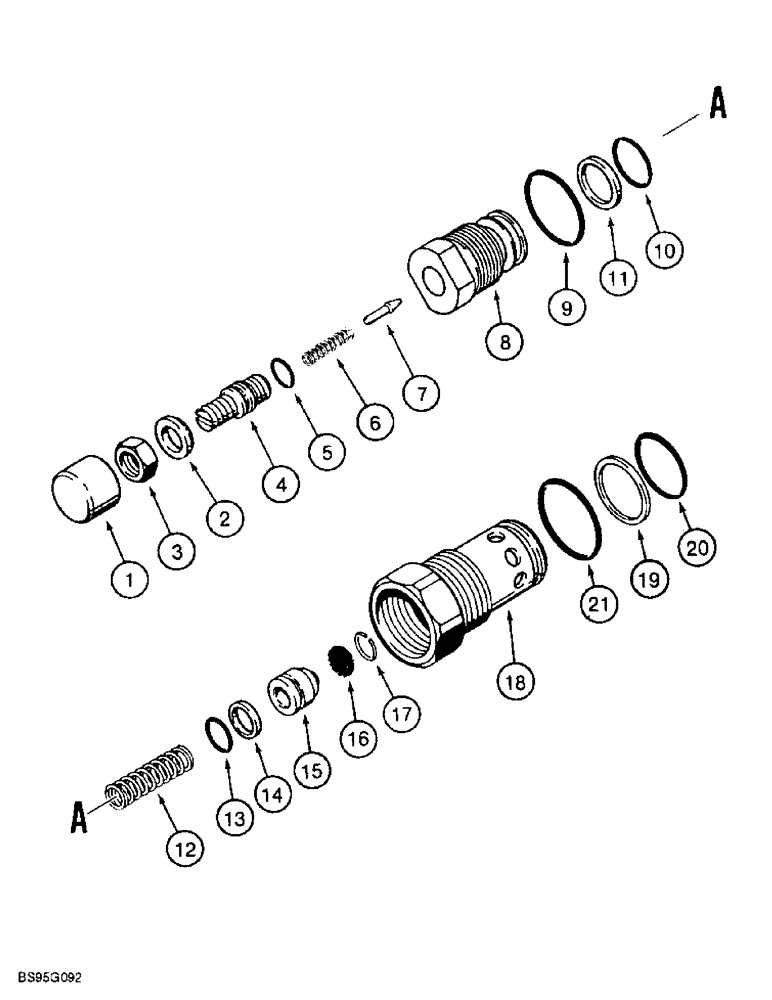

Запчасти Case 621B (8-49A) - CIRCUIT RELIEF VALVE, 121005A1 (08) - HYDRAULICS

121005A1

VALVE

ASSEMBLY circuit relief, Includes: Ref. 1 - 21

1шт.

1

NSS

NOT SOLD SEPARAT

COVER - tamper proof, if used

1шт.

2

1978295C1

WASHER

special

1шт.

3

425-156

JAM NUT,Jam, 3/8"-24, G5

1шт.

4

N9463

ADJUSTMENT SCREW

adjusting

1шт.

5

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

1шт.

6

N9465

SPRING

poppet

1шт.

7

N9464

PLUNGER

POPPETrelief valve

1шт.

8

N9769

BODY

pilot plunger

1шт.

9

238-5019

O-RING,0.07" Thk x 0.801" ID, -19, Cl 5, 75 Duro

Pilot body, large

1шт.

10

A55911

O-RING,0.807" ID

pilot body, small

1шт.

11

N9768

BACK-UP RING,0.831mm ID x 0.939mm OD x 0.052mm

RING backup, small O-ring

1шт.

12

191210A1

SPRING

poppet

1шт.

13

191209A1

SEAL

O-RING poppet

1шт.

14

121038A1

RING

backup

1шт.

15

S300249

VALVE POPPET

relief

1шт.

16

S300248

VALVE POPPET

Screen

1шт.

17

N9473

RING, SNAP

RING SNAP retaining

1шт.

18

NSS

NOT SOLD SEPARAT

Body, relief valve

1шт.

19

1978299C1

BACK-UP RING

Ring, backup

1шт.

20

238-5021

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

1шт.

21

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.
