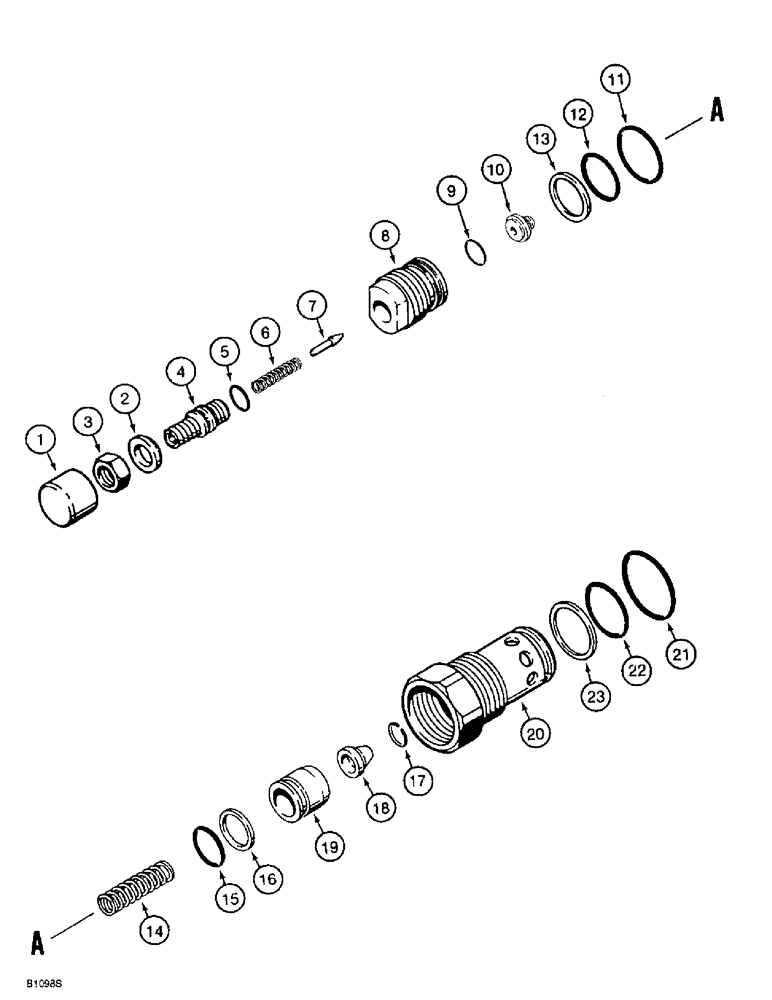

Запчасти Case 621B (8-48) - CIRCUIT RELIEF VALVE, 1978297C2 (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1978297C2
VALVE
ASSEMBLY circuit relief, Includes: Ref. 1 - 23, no longer available, order 121005A1 valve assy, see Figure 8-49A
1шт.
1
NSS
NOT SOLD SEPARAT
COVER - tamper proof, if used
1шт.
2
1978295C1
WASHER
special
1шт.
3
329-156
JAM NUT,Jam, 3/8"-24, G8
1шт.
4
NSS
NOT SOLD SEPARAT
SCREW - adjusting
1шт.
5
NSS
NOT SOLD SEPARAT
O-RING - 3/8 ID x 1/16 inch wide
1шт.
Part of Gasket Kit P/N 1986635C1
1шт.
6
NSS
NOT SOLD SEPARAT
SPRING - plunger
1шт.
7
NSS
NOT SOLD SEPARAT
PLUNGER - relief valve
1шт.
8
NSS
NOT SOLD SEPARAT
BODY ASSEMBLY - pilot plunger, Includes: Ref. 9 and 10
1шт.
9
NSS
NOT SOLD SEPARAT
O-RING - 3/8 ID x 1/16 inch wide, Pilot Seat
1шт.
Part of Gasket Kit P/N 1986635C1
1шт.
10
NSS
NOT SOLD SEPARAT
SEAT - pilot
1шт.
11
NSS
NOT SOLD SEPARAT
O-RING - 3/16 ID x 1/16 inch wide, Body
1шт.
Part of Gasket Kit P/N 1986635C1
1шт.
12
NSS
NOT SOLD SEPARAT
O-RING - body, small
1шт.
Part of Gasket Kit P/N 1986635C1
1шт.
13
NSS
NOT SOLD SEPARAT
RING - backup, O-ring
1шт.
Part of Gasket Kit P/N 1986635C1
1шт.
14
NSS
NOT SOLD SEPARAT
SPRING - poppet
1шт.
15
NSS
NOT SOLD SEPARAT
O-RING - 9/16 ID x 3/32 inch wide
1шт.
Part of Gasket Kit P/N 1986635C1
1шт.
16
NSS
NOT SOLD SEPARAT
RING - backup, poppet O-ring
1шт.
Part of Gasket Kit P/N 1986635C1
1шт.
17
NSS
NOT SOLD SEPARAT
RING - retaining, screen
1шт.
18
NSS
NOT SOLD SEPARAT
SCREEN - poppet
1шт.
19
NSS
NOT SOLD SEPARAT
POPPET - relief valve
1шт.
20
NSS
NOT SOLD SEPARAT
BODY - relief valve
1шт.
21
237-6014
O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro
1шт.
Part of Gasket Kit P/N 1986635C1
1шт.
22
238-5021
O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro
1шт.
Part of Gasket Kit P/N 1986635C1
1шт.
23
1986634C1
SEAL KIT
Small O-ring, Replaces 1978265C1
1шт.
Part of Gasket Kit P/N 1986635C1
1шт.
1986635C1
SEAL KIT
Includes: Ref. 5, 9, 11 - 13, 15, 16, 21 - 23
1шт.
