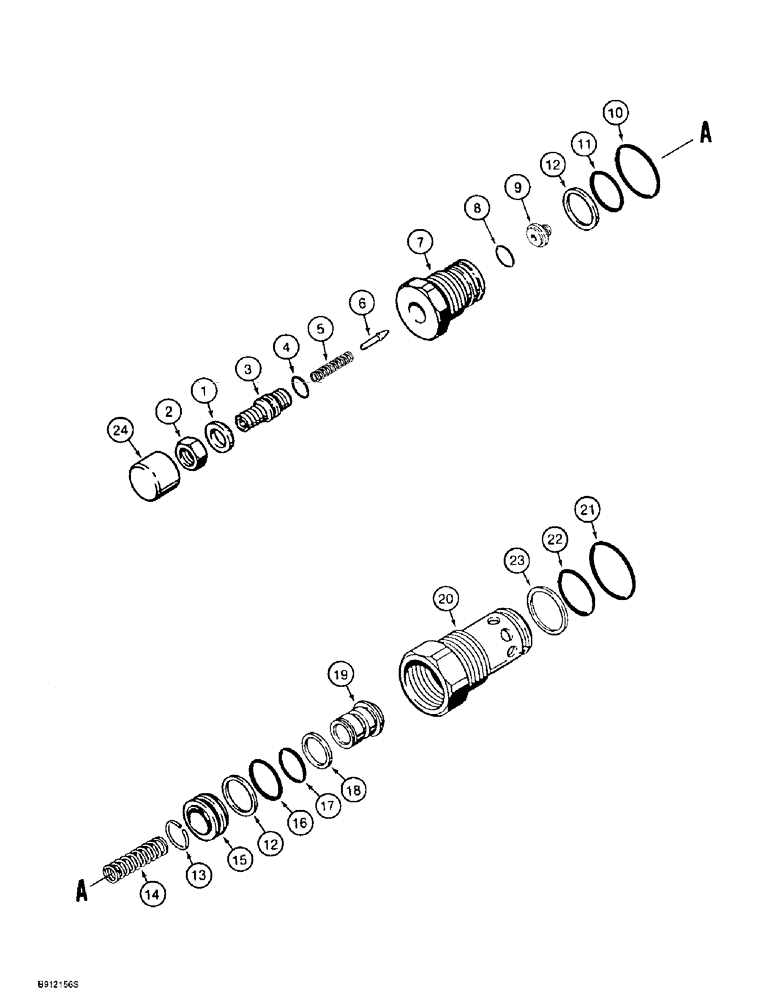

Запчасти Case 621B (8-46) - MAIN RELIEF VALVE, AND CIRCUIT RELIEF AND ANTICAVITATION VALVE (08) - HYDRAULICS

102210A1

VALVE

ASSEMBLY relief, with flat screen on poppet, main relief and circuit relief and anticavitation valve service replacement, Includes: Ref. 1 - 24

2-3шт.

This valve is used as a main relief and also as a replacement for the circuit relief and anticavitation valve. See your service manual for proper pressure settings.

1шт.

102211A1

VALVE

ASSEMBLY circuit Relief and Anticavitation, With Flat Screen on Poppet, Production Only, For Service Order 102210A1 Valve, See Your Service Manual For Proper Pressure Settings, Includes: Ref. 1 - 24

2-3шт.

1

1978295C1

WASHER

special

1шт.

2

329-156

JAM NUT,Jam, 3/8"-24, G8

1шт.

3

NSS

NOT SOLD SEPARAT

SCREW - adjusting

1шт.

4

NSS

NOT SOLD SEPARAT

O-ring

1шт.

Part of Gasket Kit P/N 1986634C1

1шт.

5

NSS

NOT SOLD SEPARAT

SPRING - plunger

1шт.

6

NSS

NOT SOLD SEPARAT

PLUNGER - relief valve

1шт.

7

NSS

NOT SOLD SEPARAT

BODY ASSEMBLY pilot plunger, Includes: Ref. 8 and 9

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING - pilot seat

1шт.

Part of Gasket Kit P/N 1986634C1

1шт.

9

NSS

NOT SOLD SEPARAT

SEAT - pilot

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - body, large

1шт.

Part of Gasket Kit P/N 1986634C1

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - body, small

1шт.

Part of Gasket Kit P/N 1986634C1

1шт.

12

NSS

NOT SOLD SEPARAT

RING - backup, O-ring

2шт.

Part of Gasket Kit P/N 1986634C1

1шт.

13

NSS

NOT SOLD SEPARAT

RING - retaining, poppet sleeve

1шт.

14

NSS

NOT SOLD SEPARAT

SPRING - poppet

1шт.

15

NSS

NOT SOLD SEPARAT

SLEEVE - poppet

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - sleeve

1шт.

Part of Gasket Kit P/N 1986634C1

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING - poppet

1шт.

Part of Gasket Kit P/N 1986634C1

1шт.

18

NSS

NOT SOLD SEPARAT

RING - backup, poppet O-ring

1шт.

Part of Gasket Kit P/N 1986634C1

1шт.

19

NSS

NOT SOLD SEPARAT

Poppet Assy, Relief Valve, With Flat Screen, Component Parts Are Not Serviceable

1шт.

20

NSS

NOT SOLD SEPARAT

BODY - relief valve

1шт.

21

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

Part of Gasket Kit P/N 1986634C1

1шт.

22

238-5021

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

1шт.

Part of Gasket Kit P/N 1986634C1

1шт.

23

1986634C1

SEAL KIT

Small O-ring, Replaces 1978265C1

1шт.

Part of Gasket Kit P/N 1986634C1

1шт.

24

NSS

NOT SOLD SEPARAT

Cover, Tamper Proof, 102211A1 Valve Only

1шт.

1986634C1

SEAL KIT

Includes: Ref. 4, 8, 10 - 12, 16 - 18 and 21 - 23

1шт.
