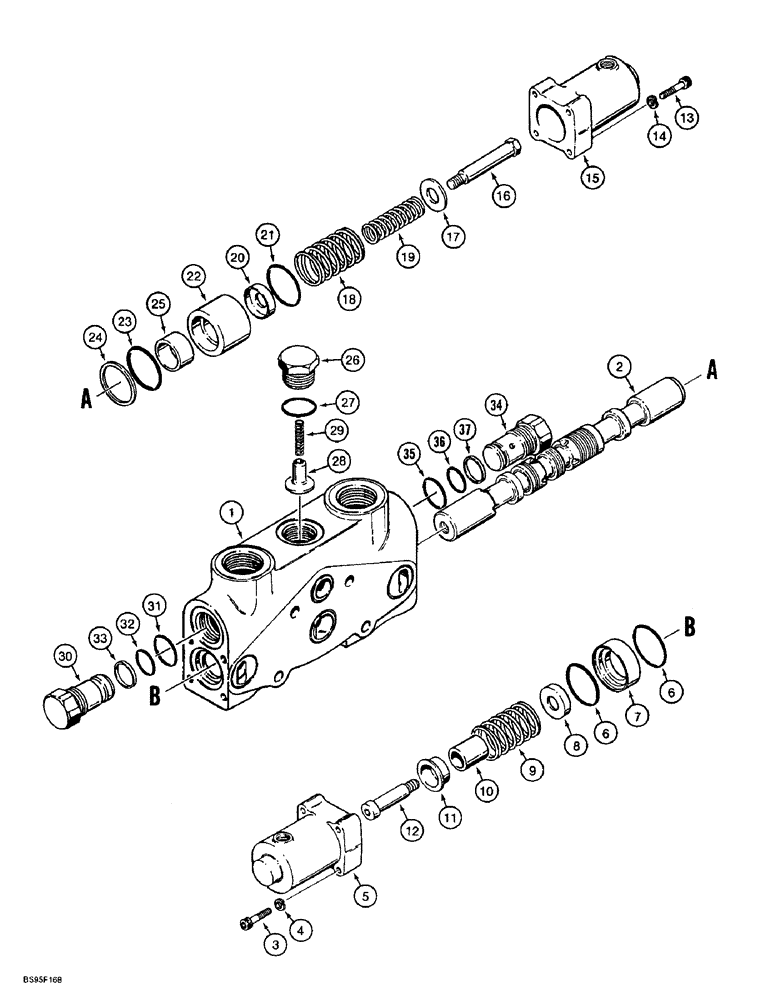

Запчасти Case 621B (8-39C) - LOADER LIFT SECTION, 190298A1 (08) - HYDRAULICS

190298A1

HYD VALVE SECTION

ASSEMBLY lift, Includes: Ref. 1 - 37

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - lift section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - lift section

1шт.

1978303C1

SET

Kit, Positioner, Float, Three Position, Includes: Ref. 3 - 12

1шт.

3

326-432

BOLT,Hex, 1/4" - 20 x 2", Gr 8

4шт.

4

92-61025

LOCK WASHER,1/4"

Hi-Collar lock, 1/4 inch

4шт.

5

NSS

NOT SOLD SEPARAT

CAP - spring

1шт.

6

238-5128

O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro

2шт.

7

NSS

NOT SOLD SEPARAT

SPACER - cap

1шт.

8

NSS

NOT SOLD SEPARAT

RETAINER - spring, inner

1шт.

9

NSS

NOT SOLD SEPARAT

SPRING - spool positioner

1шт.

10

NSS

NOT SOLD SEPARAT

SLIDE - spool positioner

1шт.

11

NSS

NOT SOLD SEPARAT

SEAT - spring, outer

1шт.

12

NSS

NOT SOLD SEPARAT

BOLT - spool guide

1шт.

1978310C1

SET

Kit, Positioner, Float, Regeneration, Includes: Ref. 13 - 25

1шт.

13

NSS

NOT SOLD SEPARAT

Screw, Hex Socket, 1/4 NC x 3 inch

4шт.

14

92-61025

LOCK WASHER,1/4"

Hi-Collar lock, 1/4 inch

4шт.

15

NSS

NOT SOLD SEPARAT

CAP - spring

1шт.

16

NSS

NOT SOLD SEPARAT

BOLT - spool positioner

1шт.

17

NSS

NOT SOLD SEPARAT

SPACER - spring retainer

1шт.

18

NSS

NOT SOLD SEPARAT

Spring - Spool Postioner, Large

1шт.

19

NSS

NOT SOLD SEPARAT

Spring - Spool Postioner, Small

1шт.

20

NSS

NOT SOLD SEPARAT

SPACER - spring

1шт.

21

238-5128

O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro

1шт.

22

NSS

NOT SOLD SEPARAT

SPACER - cap

1шт.

23

238-5128

O-RING,0.103" Thk x 1.487" ID, -128, Cl 5, 75 Duro

1шт.

24

NSS

NOT SOLD SEPARAT

SPACER - seal

1шт.

25

NSS

NOT SOLD SEPARAT

SLEEVE - cap spacer

1шт.

102204A1

SET

Kit, plug, load check, Includes: Ref. 26 - 29

1шт.

26

NSS

NOT SOLD SEPARAT

PLUG - load check

1шт.

27

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

28

NSS

NOT SOLD SEPARAT

POPPET - load check

1шт.

29

NSS

NOT SOLD SEPARAT

SPRING - load check

1шт.

1978318C1

PLUG

ASSEMBLY no relief, Includes: Ref. 30 - 33

1-2шт.

133729A1, 133731A1, and 133732A1 lift sections have two plug asemblies, Ref. 30 - 33. They do not have an anti-cav check valve, Ref. 34 - 37. The second plug assembly is in the location of Ref. 34 - 37 shown on the illustration. The plug and anti-cav check valve are not interchangeable.

1шт.

30

NSS

NOT SOLD SEPARAT

PLUG - lift section

1шт.

31

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

32

238-5021

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

1шт.

33

1986635C1

SEAL KIT

Small O-ring Replces 1978299C1 Ring

1шт.

125846A1

VALVE

ASSEMBLY anti-Cav Check, If Used, Includes: Ref. 34 - 37

1шт.

133729A1, 133731A1, and 133732A1 lift sections have two plug asemblies, Ref. 30 - 33. They do not have an anti-cav check valve, Ref. 34 - 37. The second plug assembly is in the location of Ref. 34 - 37 shown on the illustration. The plug and anti-cav check valve are not interchangeable.

1шт.

34

NSS

NOT SOLD SEPARAT

Valve , Lift Section, Internal Components Not Serviced Separately

1шт.

35

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

36

238-5021

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

1шт.

37

1978299C1

BACK-UP RING

RING backup, small O-ring

1шт.
