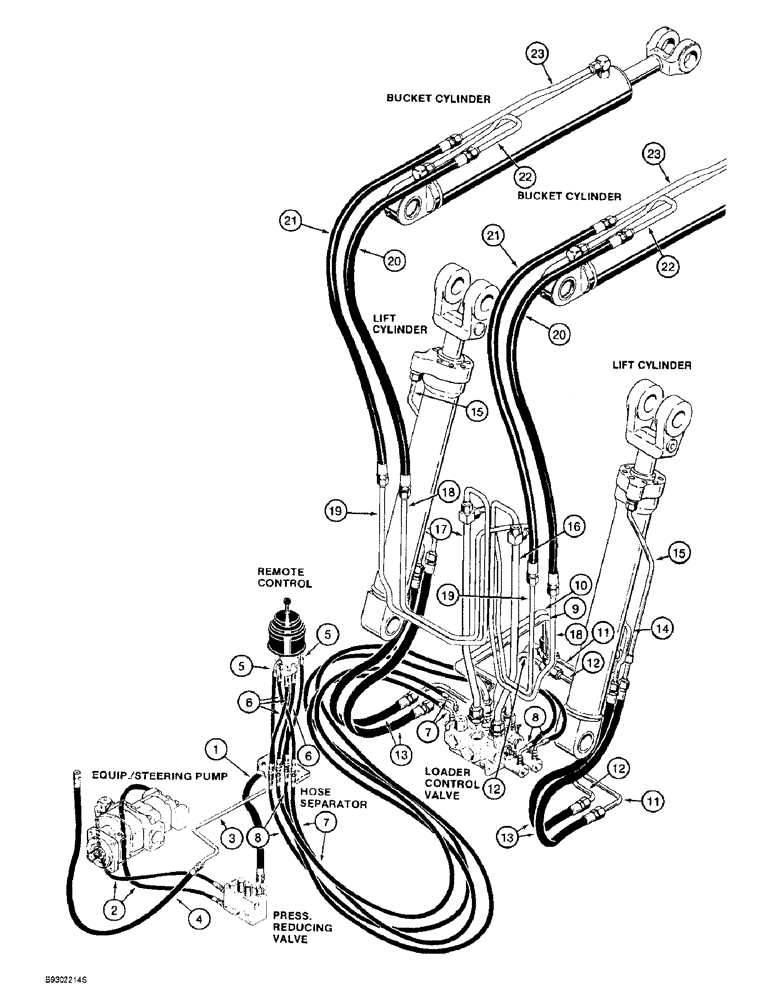

Запчасти Case 621B (1-26) - PICTORIAL INDEX, LOADER HYDRAULIC CIRCUIT - XT LOADER, TWO SPOOL CONTROL VALVE (00) - PICTORIAL INDEX

1

Hose, hose separator to pressure reducing valve - Figure 8-78

1шт.

2

Hose, pressure reducing valve to elbow at steering pump - Figure 8-78

1шт.

3

Tube, hose separator to hose at hydraulic reservoir - Figure 8-78

1шт.

4

Hose, tube to hydraulic reservoir - Figure 8-78

1шт.

5

Hose, remote control to hose separator, hydraulic reservoir and pressure reducing valve ports- Figure 8-62, 8-64

1шт.

6

Hose, hose separator to remote control - Figure 8-62, 8-64

1шт.

7

Hose, hose separator to ports 1B and 2A - Figure 8-66

1шт.

8

Hose, hose separator to ports 1A and 2B - Figure 8-66

1шт.

9

Tube, right-hand, at valve to lift cylinders - Figure 8-10

1шт.

10

Tube, left-hand, at valve to lift cylinders - Figure 8-10

1шт.

11

Tube, tube to lift cylinder, rod end - Figure 8-10

1шт.

12

Tube, tube to lift cylinder, closed end - Figure 8-10

1шт.

13

Hose, at cylinders - Figure 8-10

1шт.

14

Tube, lift cylinder, closed end - Figure 8-10

1шт.

15

Tube, lift cylinder, rod end - Figure 8-10

1шт.

16

Tube, right-hand, at valve to bucket cylinders - Figure 8-14, 8-15A

1шт.

17

Tube, left-hand, at valve to bucket cylinders - Figure 8-14, 8-15A

1шт.

18

Tube, tube to bucket cylinder, closed end - Figure 8-14, 8-15A

1шт.

19

Tube, tube to bucket cylinder, rod end - Figure 8-14, 8-15A

1шт.

20

Hose, to bucket cylinder, closed end - Figure 8-14, 8-15A

1шт.

21

Hose, to bucket cylinder, rod end - Figure 8-14, 8-15A

1шт.

22

Tube, at bucket cylinder, closed end - Figure 8-14, 8-15A

1шт.

23

Tube, at bucket cylinder, rod end - Figure 8-14, 8-15A

1шт.
