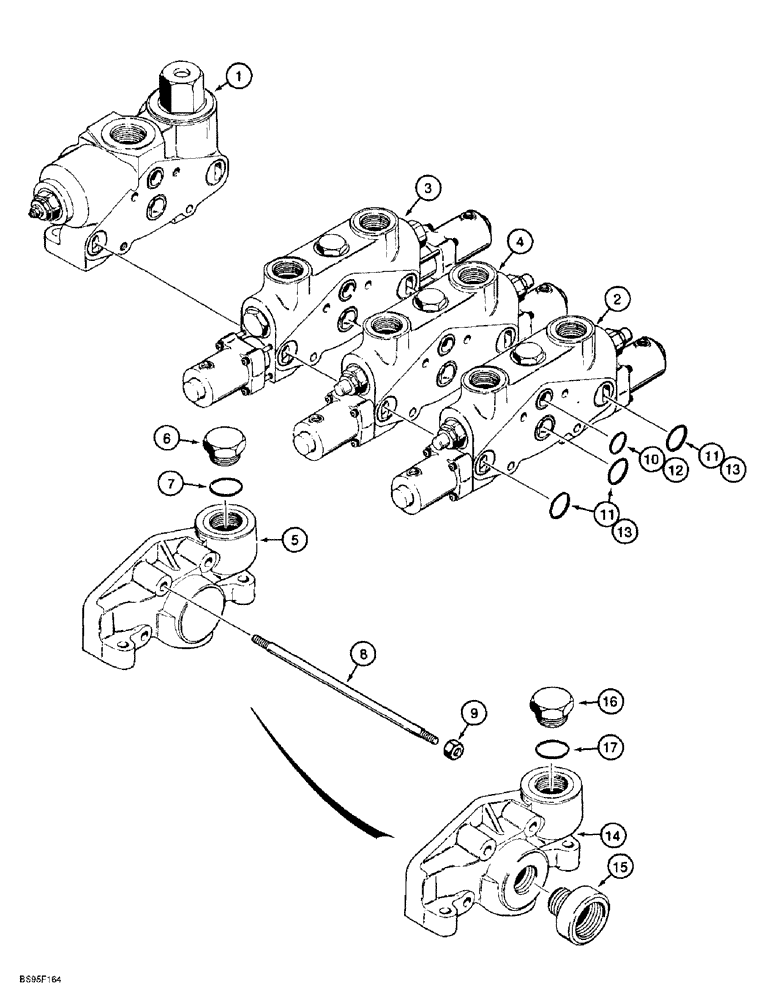

Запчасти Case 621B (8-32) - LOADER CONTROL VALVE, THREE SPOOL, Z-BAR LOADER, L123678 VALVE ASSEMBLY (08) - HYDRAULICS

L123678

VALVE

ASSEMBLY control, three spool, Includes: Ref. 1 - 13

1шт.

1

1978263C1

VALVE

Section Assembly, inlet and outlet, see Figure 8-36

1шт.

2

1978280C1

SECTOR

ASSEMBLY auxiliary, see Figure 8-44

1шт.

3

1978296C1

VALVE

Section Assembly, bucket, see Figure 8-40

1шт.

4

1978302C1

VALVE

Section Assembly, lift, see Figure 8-38

1шт.

5

1978278C1

SECTOR

PLATE cover, end, Includes: Ref. 6 and 7

1шт.

6

86512512

PLUG,7/8" - 14 ORB

Replaces D54275 plug

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

8

189909A1

STUD

three spool control valve

4шт.

9

425-107

NUT,7/16"-14, G5

4шт.

1542847C1

SEAL KIT

Includes: Ref. 10 and 11, no longer available, order 120988A1 seal kit

4шт.

1542847c1 kit actually consists of 238-6122 (1), 238-6126 (3), 238-5024 (1), and 238-5028 (3). The 238-5024 and 238-5028 have thinner cross section (1/16") than the 238-6122 and 238-6126. 12/22/99 BW CAM

1шт.

10

238-6122

O-RING,0.103" Thk x 1.11" ID, -122, Cl 6, 90 Duro

1шт.

11

238-6126

O-RING,0.103" Thk x 1.362" ID, -126, Cl 6, 90 Duro

3шт.

120988A1

SEAL KIT

between sections, Includes: Ref. 12 and 13

1шт.

12

238-6122

O-RING,0.103" Thk x 1.11" ID, -122, Cl 6, 90 Duro

4шт.

13

238-6126

O-RING,0.103" Thk x 1.362" ID, -126, Cl 6, 90 Duro

12шт.

L36348

KIT

power beyond, Includes: Ref. 14 - 17 plus instructions

1шт.

14

S301432

COVER

outlet

1шт.

15

S301433

SLEEVE

power beyond

1шт.

16

273916

PLUG,Hex, 1-5/16" - 12 ORB

Includes Ref. 17

1шт.

17

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.
