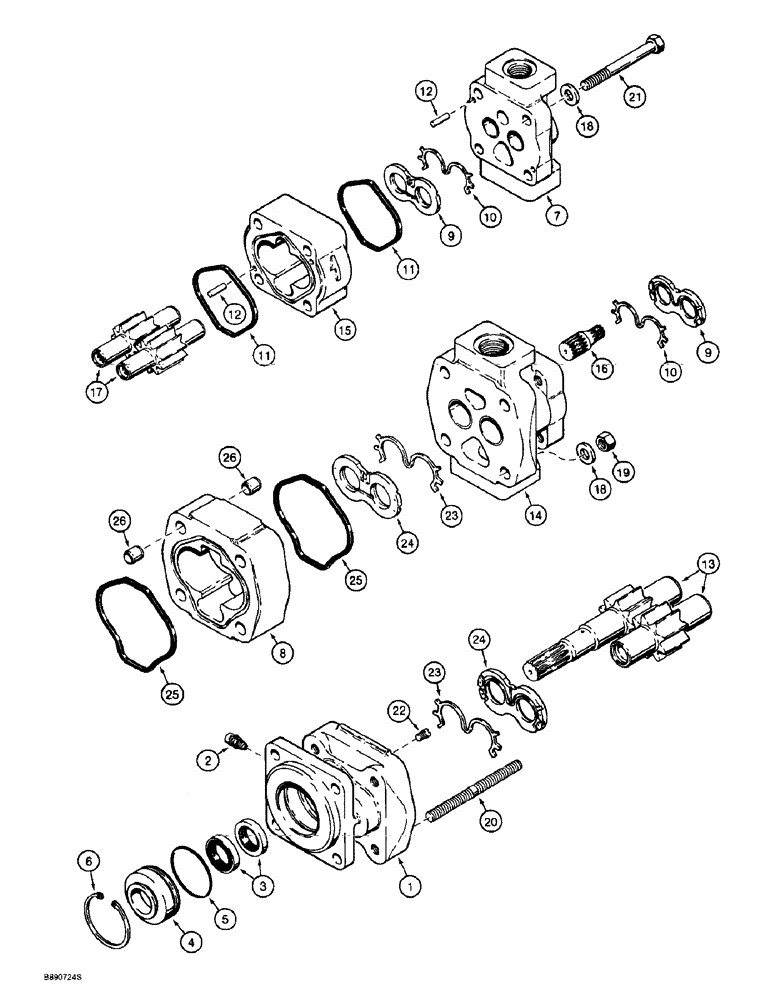

Запчасти Case 621B (8-28) - EQUIPMENT AND STEERING PUMP, L127270 (08) - HYDRAULICS

L127270

PUMP, HYDRAULIC

ASSEMBLY hydraulic equipment and steering, Includes: Ref. 1 - 27

1шт.

L127270R

REMAN-HYD PUMP

621B (3/93-12/98)

1шт.

L127270C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

S300592

COVER

shaft end, includes bushings

1шт.

2

1978259C1

VALVE POPPET

VENT air

1шт.

3

S300419

SEAL,34.92mm ID x 54.08mm OD x 7.92mm Thk

lip

2шт.

4

1978254C1

SEAL RETAINER

retainer

1шт.

5

S300727

O-RING,0.103" Thk x 2.862" ID, -150, Cl 5, 75 Duro

O-RING special, replaces S300420 O-ring

1шт.

6

100-21315

SNAP RING,3.156", Int, #315

1шт.

7

S300594

COVER

port end, includes bushing

1шт.

8

1340773C1

BODY

HOUSING gear, shaft end

1шт.

9

N13582

THRUST PLATE

Port end gear housing

2шт.

10

N13583

SEAL

gear housing, formed, port end

2шт.

11

L32100

SEAL,Square, 3.17mm Thk x 101.6mm ID, 70 Duro

gear housing, port end

2шт.

12

W16323

DOWEL

PIN gear housing, port end

4шт.

13

1340775C1

GEAR

set, shaft end

1шт.

14

S300593

BODY

CARRIER bearing, includes bushings

1шт.

15

1340774C1

HOUSING

gear, port end

1шт.

16

1340777C1

SHAFT

connecting

1шт.

17

S300726

GEAR-SET

port end, replaces 1340776C1 gear

1шт.

18

19-488

WASHER

flat, replaces 524443R1 washer

8шт.

19

429-1010

NUT,5/8"-11, G8

4шт.

20

1978260C1

STUD

pump

4шт.

21

426-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 8

5/8 NC x 5 inch, grade 8

4шт.

22

L32320

PLUG

slotted, 7/16 inch NF

1шт.

23

1978256C1

SEAL

grooved, shaft end

2шт.

24

194255A1

BACK-UP RING

PLATE thrust, bronze, shaft end gear housing, replaces 1978255C1 plate

2шт.

25

1978257C1

SEALING RING

SEALRING square section, shaft end

2шт.

26

1978258C1

CENTERING RING

BUSHING alignment, gear housing, shaft end

8шт.

27

S300421

RESTRICTOR

REDUCER special, cover to air vent, not shown

1шт.
