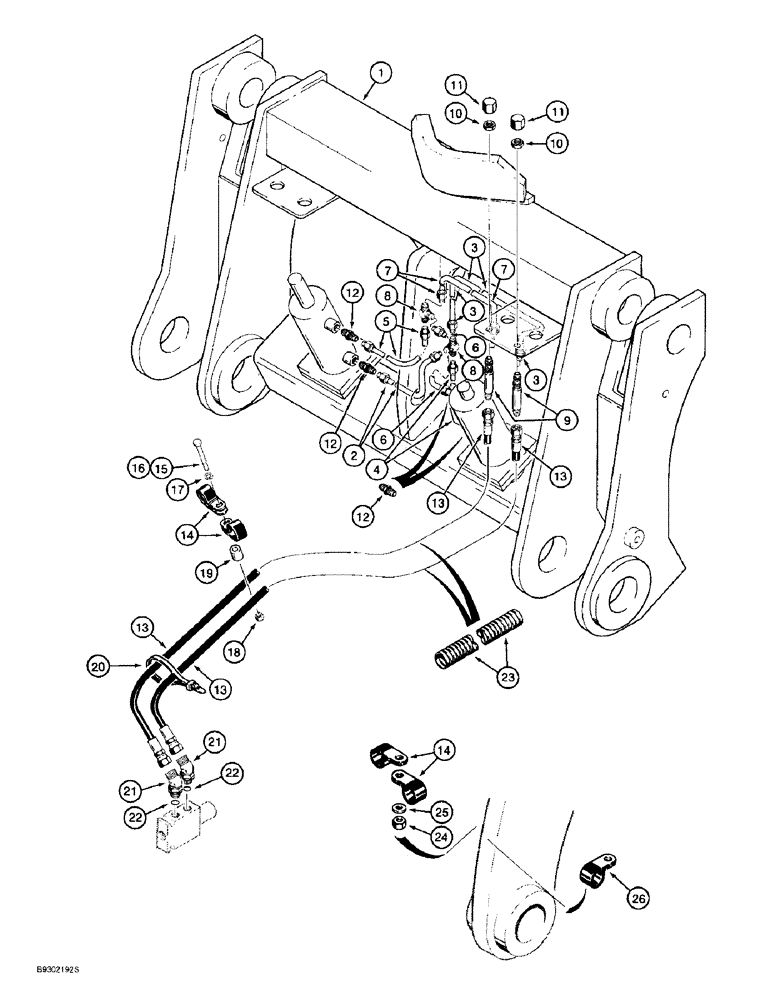

Запчасти Case 621B (8-26) - HYDRAULIC CIRCUIT, SOLENOID VALVE TO MALE MASTER COUPLER, XT LOADER (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
114513A1
COUPLING
ASSEMBLY male master
1шт.
This part is available from the supplier through your local dealer. See Figure 9-12 for pins to attach male master coupler to lift arm.
1шт.
2
118173A1
TUBE,9.52 mm OD, 162, 99 mm Length
unlock, left-hand
1шт.
3
118176A1
TUBE
unlock, supply
1шт.
4
118178A1
TUBE,9.52 mm OD, 119, 27 mm Length
unlock, right-hand
1шт.
5
118180A1
TUBE
lock, left-hand
1шт.
6
118182A1
TUBE
lock, right-hand
1шт.
7
118184A1
TUBE,9.52 mm OD, 219, 83 mm Length
lock, supply
1шт.
8
218-593
TEE,9/16"-18, 37 Degree
9/16-18 inch flare branch x flare x flare
2шт.
9
218-1240
FITTING
TEE, 9/16-18 inch flare branch x flare x bulkhead flare
2шт.
10
218-1254
LOCK NUT,Blkhd, 9/16"-18
2шт.
12
HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF
ADAPTER straight, 9/16-18 flare x 1/4 inch PT
4шт.
13
115783A1
HOSE ASSY.
4900 mm (193 in) long, Coupler To Solenoid Valve
2шт.
14
515-23190
CLAMP,3/4", Insul, 3/8" Bolt
P-type
6шт.
15
326-644
BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 8
3 and 4 spool valve models
2шт.
16
426-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8
2 Spool valve models
2шт.
17
492-11038
LOCK WASHER,3/8"
2шт.
18
425-106
NUT,3/8"-16, Cl 5
2шт.
19
D146035
SPACER,10.31mm ID x 16mm OD x 15.5mm L
SPACER clamp
2шт.
20
L18337
CABLE TIE,9.95"-12.1" lg
CABLE STRAP tie, 15 inch, nylon
1шт.
21
218-5135
ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB
45°, 9/16-18 inch flare x adj O-ring boss, Includes: Ref. 22
2шт.
23
118979A1
COVER
spiral, hose
1шт.
24
231-1446
NUT,3/8" - 16, Gr 5
1шт.
25
495-11041
WASHER,0.406" ID x 0.812" OD x 0.065" W
(13/32 x 13/16 x 1/16")
1шт.
26
515-23190
CLAMP,3/4", Insul, 3/8" Bolt
P-type, Mounting hardware shown on page 8-25, items 8 - 11
2шт.
22
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
