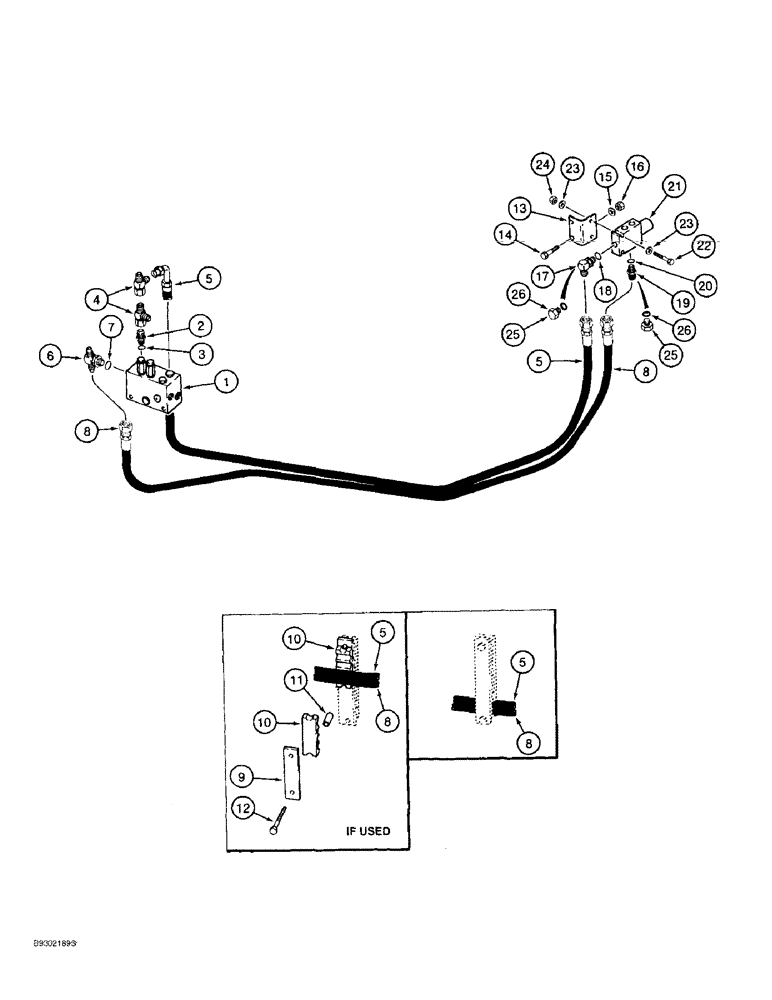

Запчасти Case 621B (8-24) - HYDRAULIC CIRCUIT, COUPLER LOCKING, XT LOADER (08) - HYDRAULICS

1

REF

INSTRUCTION

Valve Assy, Sequence, Pressure Reducing, see Ref. 15, Figure 8-78

1шт.

2

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. Ref. 3

1шт.

4

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

2шт.

5

115782A1

HOSE ASSY.

1605 mm (63-3/16 in) long, Pressure Reducing Valve to Coupler Locking Solenoid Valve

1шт.

6

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

9/16-18 inch adj O-ring branch x flare x flare, Includes: Ref. 7

1шт.

8

115781A1

HOSE ASSY.

1745 mm (68-3/4 in) long, Coupler Locking Solenoid Valve To Pressure Reducing Valve

1шт.

9

L124270

LARGE PLATE

PLATE, LARGE If Used

2шт.

10

L124271

FIXING BRACKET

If Used

4шт.

11

L126936

SPACER

34 mm long, if used

4шт.

12

326-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 8

If used

4шт.

13

115784A1

BRACKET

valve mounting

1шт.

14

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

2шт.

15

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

2шт.

16

231-1446

NUT,3/8" - 16, Gr 5

2шт.

17

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90°, 9/16-18 inch flare x adj O-ring boss, Includes: Ref. 18

1шт.

19

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. Ref. 20

1шт.

21

118857A1

VALVE

ASSEMBLY solenoid, coupler locking, see Figure 8-60

1шт.

22

426-432

BOLT,Hex, 1/4" - 20 x 2", Gr 8

1/4 x 2 in

2шт.

23

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16")

4шт.

24

231-1444

NUT,1/4"-20, GB

2шт.

25

76349

PLUG,9/16" - 18 ORB

Incl. Ref. 26, Used on models without coupler to plug work ports on Ref. 21 coupler locking solenoid valve

2шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

18

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

20

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

26

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
