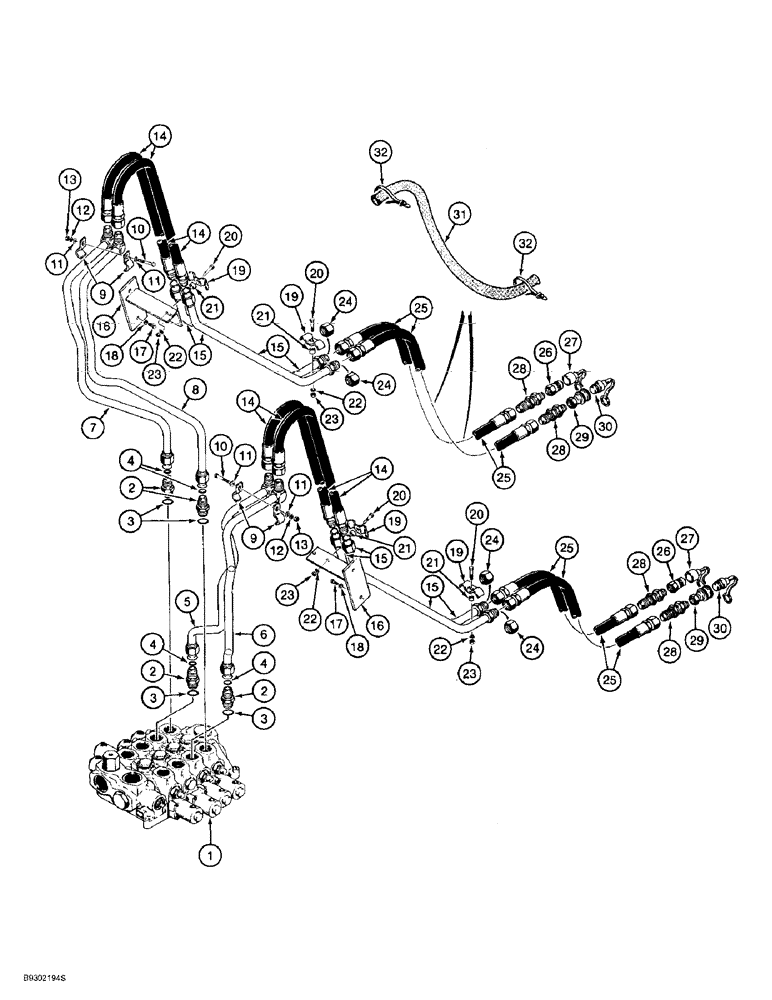

Запчасти Case 621B (8-22) - HYDRAULIC CIRCUIT, FOUR SPOOL VALVE TO AUXILIARY BUCKET COUPLINGS, XT LOADER (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
Valve Assy, loader control, see Figure 8-07A for correct assembly
1шт.
2
L124291
FITTING
ADAPTER straight, special, Includes: Ref. 3 and 4, Serial Range: valve-tubes
4шт.
4
238-6020
O-RING,0.07" Thk x 0.864" ID, -20, Cl 6, 90 Duro
Flare end
1шт.
5
L126182
TUBE,25.4 mm OD
left-hand, third spool to right-hand hoses
1шт.
6
L126180
TUBE,25.4 mm OD x 802, 248 mm L
right-hand, third spool to right-hand hoses
1шт.
7
118741A1
TUBE,25.4 mm OD, 752, 369 mm Length
left-hand, fourth spool to left-hand hoses
1шт.
8
118743A1
TUBE
right-hand, fourth spool to left-hand hoses
1шт.
9
L32065
CLAMP
tube
4шт.
10
426-640
BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 8
2шт.
11
496-81003
WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk
4шт.
12
492-11038
LOCK WASHER,3/8"
2шт.
13
425-106
NUT,3/8"-16, Cl 5
2шт.
14
L126184
HOSE,19.1mm ID x 1100mm L, SAE 100R12
1100 mm (43-5/16 inch) long
4шт.
15
114371A1
TUBE,25.4 mm OD, 683, 422 mm Length
auxiliary, at loader arms
4шт.
16
L126511
SUPPORT
BRACKET mounting, tubes
2шт.
17
426-616
BOLT,Hex, 3/8" - 16 x 1", Gr 8
4шт.
18
492-11038
LOCK WASHER,3/8"
4шт.
19
R15257
CLAMP
tube
4шт.
20
426-628
BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8
4шт.
21
D146035
SPACER,10.31mm ID x 16mm OD x 15.5mm L
SPACER tube
4шт.
22
492-11038
LOCK WASHER,3/8"
4шт.
23
425-106
NUT,3/8"-16, Cl 5
4шт.
24
218-335
CAP,37 Degree, 1 1/16"-12
Hex, Used on models without auxiliary bucket
4шт.
25
114374A1
HOSE ASSY.
1650 mm (65 inch) long, auxiliary
4шт.
26
114531A1
COUPLING
quick disconnect
2шт.
27
114533A1
DUST CAP
dust
2шт.
28
31-2090
ADAPTER
special
4шт.
29
114532A1
COUPLING
quick disconnect, right-hand
2шт.
30
114534A1
PLUG
dust
2шт.
31
S120577
COVER
hose
2шт.
32
L18337
CABLE TIE,9.95"-12.1" lg
CABLE STRAP tie, 15 inch, nylon
1шт.
Выбрано товаров: 32
