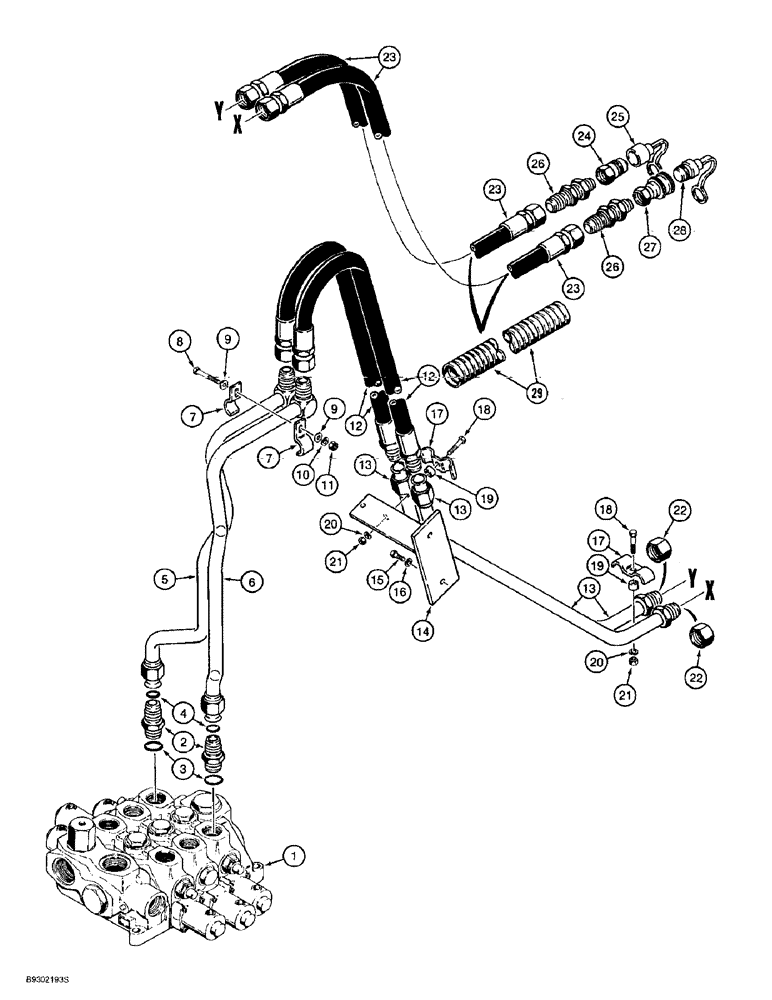

Запчасти Case 621B (8-20) - HYDRAULIC CIRCUIT, THREE SPOOL VALVE TO AUXILIARY BUCKET COUPLINGS, XT LOADER (08) - HYDRAULICS

1

REF

INSTRUCTION

Valve Assy, loader control, see Figure 8-07A for correct assembly

1шт.

2

L124291

FITTING

ADAPTER straight, special, valve to tubes, Includes: Ref. 3 and 4

4шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Boss End

1шт.

4

238-6020

O-RING,0.07" Thk x 0.864" ID, -20, Cl 6, 90 Duro

Flare end

1шт.

5

L126182

TUBE,25.4 mm OD

left-hand, auxiliary section to hose

1шт.

6

L126180

TUBE,25.4 mm OD x 802, 248 mm L

right-hand, auxiliary section to hose

1шт.

7

L32065

CLAMP

tube

2шт.

8

426-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 8

1шт.

9

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

2шт.

10

492-11038

LOCK WASHER,3/8"

1шт.

11

425-106

NUT,3/8"-16, Cl 5

1шт.

12

L126184

HOSE,19.1mm ID x 1100mm L, SAE 100R12

1100 mm (43-5/16 inch) long

2шт.

13

114371A1

TUBE,25.4 mm OD, 683, 422 mm Length

auxiliary, at loader arms

2шт.

14

L126511

SUPPORT

BRACKET mounting, tubes

1шт.

15

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

2шт.

16

492-11038

LOCK WASHER,3/8"

2шт.

17

R15257

CLAMP

tube

2шт.

18

426-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

2шт.

19

D146035

SPACER,10.31mm ID x 16mm OD x 15.5mm L

SPACER tube

2шт.

20

492-11038

LOCK WASHER,3/8"

2шт.

21

425-106

NUT,3/8"-16, Cl 5

2шт.

22

218-335

CAP,37 Degree, 1 1/16"-12

Used on models without auxiliary bucket

2шт.

23

114374A1

HOSE ASSY.

1650 mm (65 inch) long, auxiliary

2шт.

24

114531A1

COUPLING

quick disconnect

1шт.

25

114533A1

DUST CAP

CAP dust

1шт.

26

31-2090

ADAPTER

special

2шт.

27

114532A1

COUPLING

quick disconnect, right-hand

1шт.

28

114534A1

PLUG

dust

1шт.

29

118979A1

COVER

spiral, hose

1шт.
