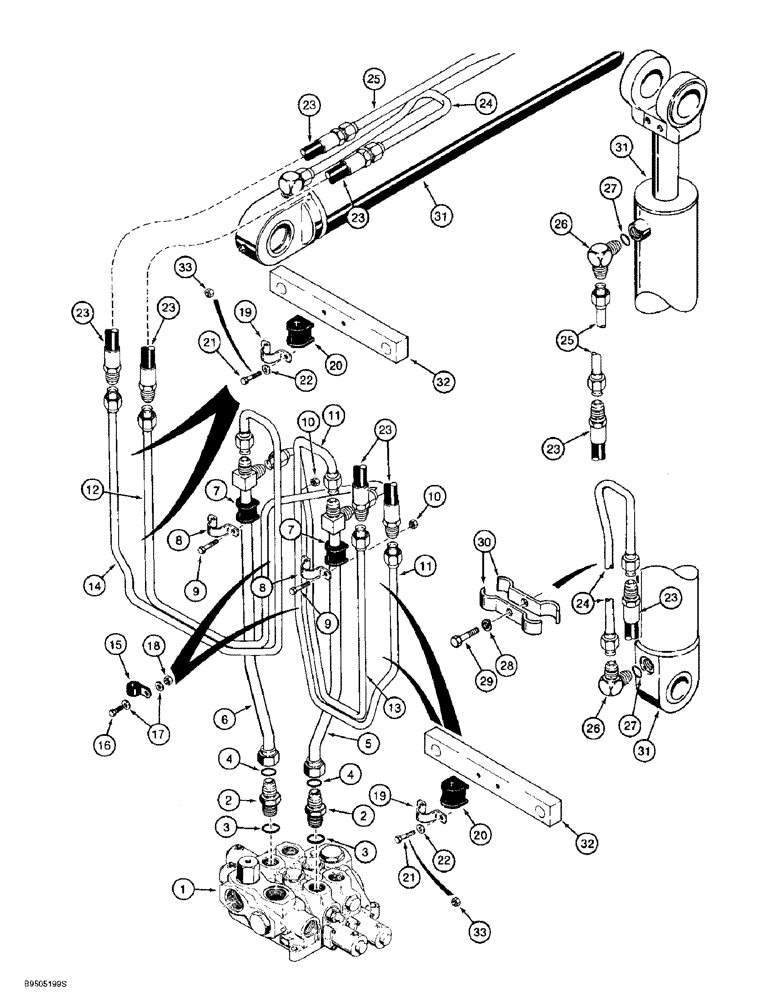

Запчасти Case 621B (8-14) - HYDRAULIC CIRCUIT, LOADER BUCKET, XT LOADER, PRIOR TO P.I.N JEE0041109 (08) - HYDRAULICS

1

REF

INSTRUCTION

Valve Assy, control, loader, see Figure 8-07A for correct assembly

1шт.

2

L124290

CONNECTOR, ELEC

CONNECTOR ADAPTER straight, special, Includes: Ref. 3 and 4

2шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Boss End

1шт.

4

238-6024

O-RING,0.07" Thk x 1.114" ID, -24, Cl 6, 90 Duro

Flare end

1шт.

5

113539A1

TUBE,31.75 mm OD, 817, 51 mm Length

valve to cylinder, closed end

1шт.

6

113537A1

TUBE,31.75 mm OD, 817,222 mm Length

valve to cylinder, rod end

1шт.

7

D67298

INSULATOR

rubber

2шт.

8

L124293

MOUNTING CLIP

tube

2шт.

9

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

4шт.

10

231-1446

NUT,3/8" - 16, Gr 5

4шт.

11

113541A1

TUBE

bucket, to right-hand cylinder, closed end

1шт.

12

113546A1

TUBE

bucket, to left-hand cylinder, closed end

1шт.

13

113543A1

TUBE

bucket, to right-hand cylinder, rod end

1шт.

14

113548A1

TUBE

bucket, to left-hand cylinder, rod end

1шт.

15

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type

4шт.

16

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

4шт.

17

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

8шт.

18

231-1446

NUT,3/8" - 16, Gr 5

4шт.

19

113532A1

CLAMP

tube

8шт.

20

D74182

GROMMET,3/4" ID x 1.46" L

INSULATOR tube

8шт.

21

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

8-16шт.

Ref. 32, 113533A1, bar and 33, 231-1446, nut replace Ref. 21, 413-612, bolt, in the clamping arrangement for the cylinder tubes, Ref. 11 - 14.

1шт.

22

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

16шт.

23

113607A1

HOSE ASSY.

1260 mm (49-5/8 inch) long, to bucket cylinder tubes

4шт.

24

113550A1

TUBE

cylinder, closed end

2шт.

25

113552A1

TUBE,19.04 mm OD, 784, 58 mm Length

cylinder, rod end

2шт.

26

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref. 27

4шт.

27

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

28

492-11038

LOCK WASHER,3/8"

2шт.

29

426-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

2шт.

30

L119234

CLAMP

cylinder tubes

4шт.

31

112551A1

JACK BODY

CYLINDER ASSEMBLY, 114 (4-1/2) ID x 1001 mm (39-13/32 inch) stroke, see Figure 8-54

2шт.

32

113533A1

SUPPORT

BAR tapped

4шт.

Ref. 32, 113533A1, bar and 33, 231-1446, nut replace Ref. 21, 413-612, bolt, in the clamping arrangement for the cylinder tubes, Ref. 11 - 14.

1шт.

33

231-1446

NUT,3/8" - 16, Gr 5

8шт.

Ref. 32, 113533A1, bar and 33, 231-1446, nut replace Ref. 21, 413-612, bolt, in the clamping arrangement for the cylinder tubes, Ref. 11 - 14.

1шт.
