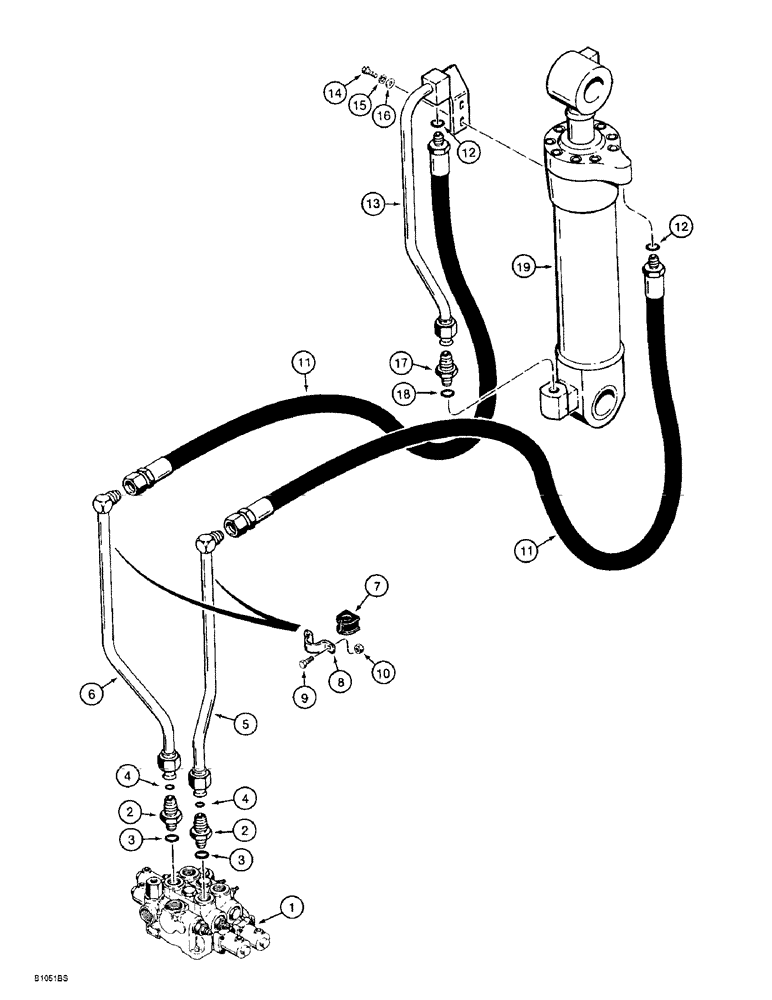

Запчасти Case 621B (8-12) - HYDRAULIC CIRCUIT, LOADER BUCKET, Z-BAR LOADER (08) - HYDRAULICS

1

REF

INSTRUCTION

Valve Assembly, control, loader, see Figure 8-06 for correct assembly

1шт.

2

L124290

CONNECTOR, ELEC

CONNECTOR ADAPTER straight, special, valve to tubes, Includes: Ref. 3 and 4

2шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Boss End

1шт.

4

238-6024

O-RING,0.07" Thk x 1.114" ID, -24, Cl 6, 90 Duro

Flare end

1шт.

5

L118810

TUBE,31.75 mm OD

valve to cylinder, rod end

1шт.

6

L118808

TUBE,31.75 mm OD x 812, 222 mm L

valve to cylinder, closed end

1шт.

7

D67298

INSULATOR

rubber

2шт.

8

L124293

MOUNTING CLIP

tube

2шт.

9

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

4шт.

10

231-1406

LOCK NUT,3/8"-16, GB

4шт.

11

L124255

HOSE ASSY.,25.4mm ID x 1125mm L, SAE 100R12

1125 mm (44-1/4 inch) long, tube to cylinder, Includes: Ref. 12

2шт.

12

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

13

L118694

PIPE,31.75 mm OD

bucket cylinder

1шт.

14

426-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

2шт.

15

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

16

495-21056

WASHER,1/2"

9/16 x 1-3/8 x 7/64 inch

2шт.

17

218-5039

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER straight, 1-5/8-12 flare x 1-1/16-12 inch O-ring boss, Includes: Ref. 18

1шт.

18

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

19

1343552C2

CYLINDER ASSY.

152 (6) ID x 544 mm (21-13/32 inch) stroke, see Figure 8-52

1шт.
