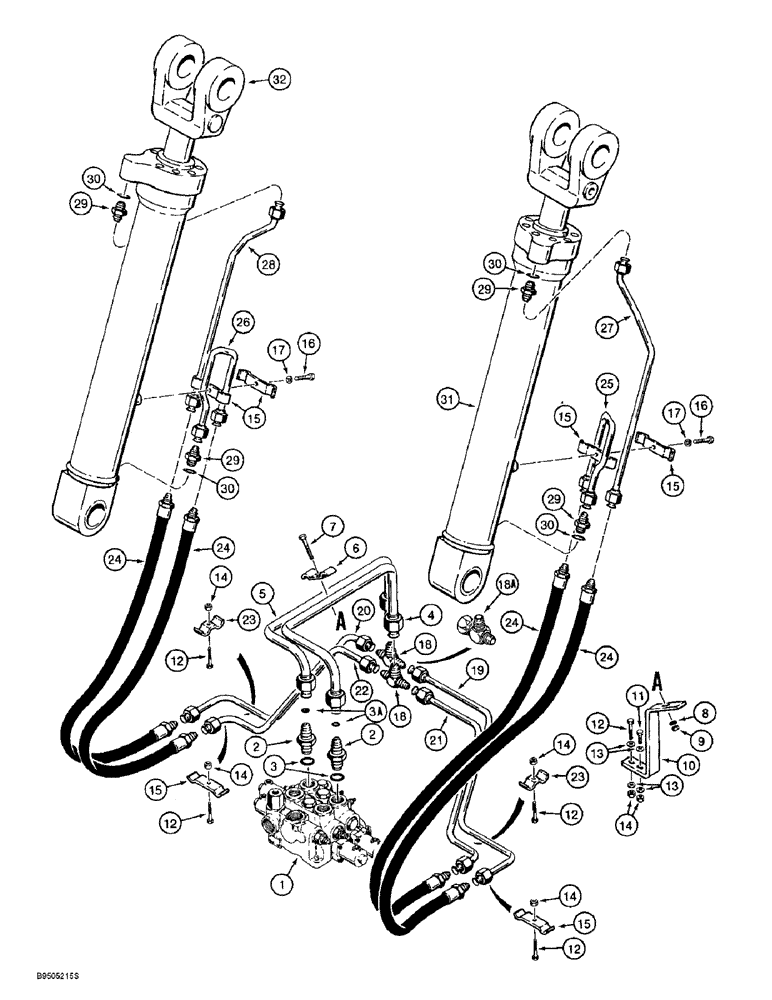

Запчасти Case 621B (8-10) - HYDRAULIC CIRCUIT, LOADER LIFT, Z-BAR AND XT LOADERS (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION
Valve Assy, Control, Loader, See Figure 8-06 For Correct Assy
1шт.
2
L124291
FITTING
ADAPTER straight, special, valve to lift tubes, Includes: Ref. 3 and 3A
2шт.
3a
238-6020
O-RING,0.07" Thk x 0.864" ID, -20, Cl 6, 90 Duro
Flare end
1шт.
4
L118618
PIPE,25.4 mm OD
supply, right-hand, valve
1шт.
5
L118616
PIPE
supply, left-hand, valve
1шт.
6
L124257
CLAMP
tubes
1шт.
7
426-636
BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 8
3/8 x 2-1/4, grade 8
1шт.
8
495-21044
WASHER,3/8"
(7/16 x 1 x 5/64 inch)
1шт.
9
231-1406
LOCK NUT,3/8"-16, GB
1шт.
10
L119010
SUPPORT
tube
1шт.
11
426-624
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8
1шт.
12
426-628
BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8
5шт.
13
496-81003
WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk
4шт.
14
231-1406
LOCK NUT,3/8"-16, GB
6шт.
15
L119234
CLAMP
tube
6шт.
16
426-624
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8
2шт.
17
492-11038
LOCK WASHER,3/8"
2шт.
18
218-606
TEE,37 Degree, 1 1/16"-12 x 1 5/16"-12, Br
1-5/16-12 flare branch x 1-1/16-12 inch flare x flare
2шт.
18a
218-5221
TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run
Used on models with ride control
2шт.
See Figures 8-94 - 8-98 for the ride control hydraulic circuit
1шт.
19
L118620
PIPE,19.04 mm OD
Lift Cylinder, Right- Hand Rod End
1шт.
19a
132798A1
TUBE
Lift Cylinder, Right- Hand Rod End, Not Illustrated, Used on Models With Ride Control
1шт.
See Figures 8-94 - 8-98 for the ride control hydraulic circuit
1шт.
20
L118622
PIPE,19.04 mm OD x 431, 407 mm L
Lift Cylinder, Left-Hand Rod End
1шт.
21
L118624
PIPE,19.04 mm OD
Lift Cylinder, Right-Hand Closed End
1шт.
21a
132796A1
TUBE
lift cylinder, right-hand closed end, not illustrated, used on models with ride control
1шт.
See Figures 8-94 - 8-98 for the ride control hydraulic circuit
1шт.
22
L118626
PIPE,19.04 mm OD
Lift Cylinder, Left-Hand Closed End
1шт.
23
R15257
CLAMP
tubes
2шт.
24
L124240
HOSE,19.1mm ID x 1100mm L, SAE 100R12
1100 mm (43-3/8 in) long, Tube To Tube
4шт.
25
L118686
PIPE,19.04 mm OD
Right-Hand, Cylinder Closed End
1шт.
26
L118684
PIPE,19.04 mm OD
Left-Hand, Cylinder Closed End
1шт.
27
L118682
PIPE,19.04 mm OD
Right-Hand, Cylinder Rod End, Used With 1343596C1 Cylinder, Ref. 31
1шт.
27a
280905A1
TUBE,805, 187 mm Length
Right-Hand, Cylinder Rod End, Used With 280706A1 Cylinder, Ref. 33, Replaces 241520A1
1шт.
28
L118680
PIPE,19.04 mm OD
Left-Hand, Cylinder Rod End, Used With 1343595C1 Cylinder, Ref. 32
1шт.
28a
280904A1
TUBE,805, 187 mm Length
Left-Hand, Cylinder Rod End, Used With 280707A1 Cylinder, Ref. 34, Replaces 242076A1
1шт.
29
218-5064
HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB
Adapter, Straight, O-Ring boss, Incl. Ref. 30
4шт.
30
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
31
1343596C1
CYLINDER ASSY.
127 (5) ID x 834 mm (32-13/16 in) Stroke, Right Hand, See Figure 8-50, No Longer Available, Order 280706A1 Cylinder and 280905A1 Tube
1шт.
If you are replacing either 1343596C1 or 1343595C1 cylinders with 280706A1 or 280707A1, you must replace both cylinders. The old and new cylinders can not be mixed.
1шт.
32
1343595C1
CYLINDER ASSY.
127 (5) ID x 834 mm (32-13/16 in) Stroke, Left Hand, See Figure 8-50, No Longer Available, Order 280707A1 Cylinder and 280904A1 Tube
1шт.
If you are replacing either 1343596C1 or 1343595C1 cylinders with 280706A1 or 280707A1, you must replace both cylinders. The old and new cylinders can not be mixed.
1шт.
33
CYLINDER ASSY.
127 (5) ID x 834 mm (32-13/16 in) Stroke, Right Hand, See Figure 8-51A
1шт.
If you are replacing either 1343596C1 or 1343595C1 cylinders with 280706A1 or 280707A1, you must replace both cylinders. The old and new cylinders can not be mixed.
1шт.
34
CYLINDER ASSY.
127 (5) ID x 834 mm (32-13/16 in) Stroke, Left Hand, See Figure 8-51A
2шт.
If you are replacing either 1343596C1 or 1343595C1 cylinders with 280706A1 or 280707A1, you must replace both cylinders. The old and new cylinders can not be mixed.
1шт.
Выбрано товаров: 47
