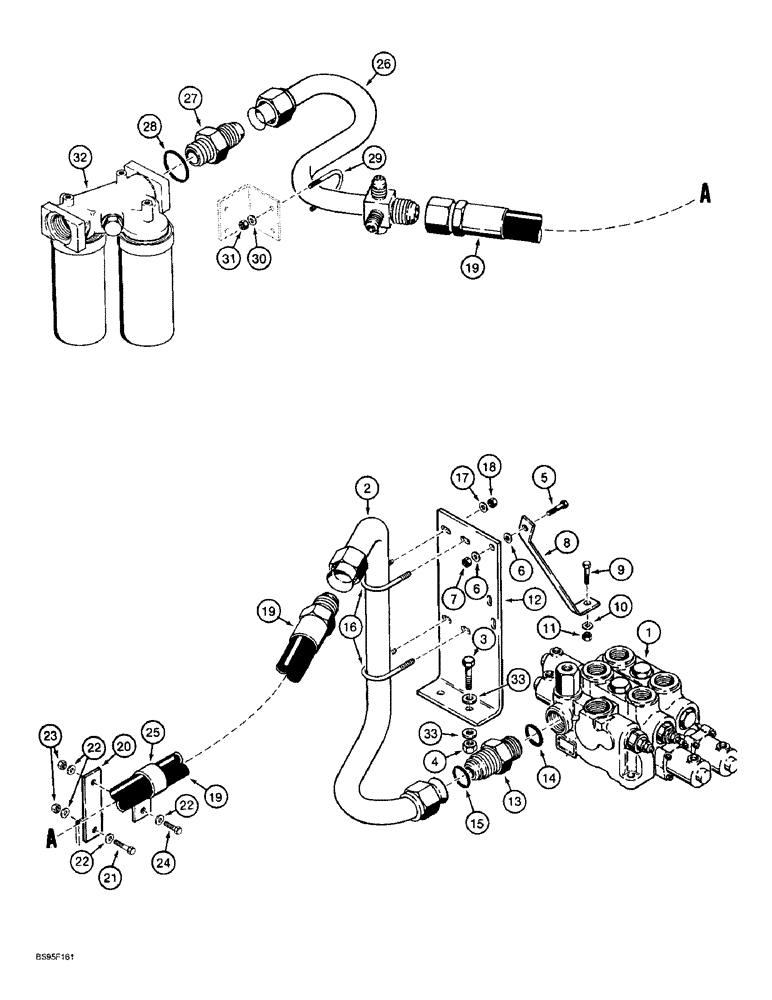

Запчасти Case 621B (8-06) - HYDRAULIC CIRCUIT, LOADER CONTROL VALVE TO FILTER, Z-BAR LOADER (08) - HYDRAULICS

1

L123735

VALVE

ASSEMBLY control, two spool, see Figure 8-30, see Figure 8-66 for mounting hardware

1шт.

1

L123678

VALVE

ASSEMBLY control, three spool, see Figure 8-32, see Figure 8-72 for mounting hardware, not shown

1шт.

1

L123736

VALVE

ASSEMBLY control, four spool, see Figure 8-34, see Figure 8-76 for mounting hardware, not shown

1шт.

2

L127085

PIPE,38.09 mm OD

Return, From Loader Valve

1шт.

See Figure 8-07E for noise reduction kit, if used.

1шт.

3

426-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

2шт.

4

231-1448

NUT,1/2"-13, GB

2шт.

5

426-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

1шт.

6

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

2шт.

7

231-1406

LOCK NUT,3/8"-16, GB

1шт.

8

L119251

SUPPORT

BRACE tube mounting bracket

1шт.

9

426-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

1шт.

10

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

1шт.

11

231-1406

LOCK NUT,3/8"-16, GB

1шт.

12

L119013

SUPPORT

BRACKET mounting, supply tube

1шт.

13

L124289

CONNECTOR, ELEC

CONNECTOR ADAPTER special, tube to valve, Includes: Ref. 14 and 15

1шт.

14

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

Boss end

1шт.

15

S300418

O-RING,1.375" ID x 0.07" Width

- adapter, flare end

1шт.

16

L105791

U-BOLT

special

2шт.

17

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

4шт.

18

231-1445

NUT,5/16"-18, GB

4шт.

19

L124235

HOSE,31.8mm ID x 1050mm L, SAE 100R3

1050 mm (41-5/16 in) long, Return, Valve To Filter

1шт.

See Figure 8-07E for noise reduction kit, if used.

1шт.

20

L50641

CONNECTING STRIP

mounting, hose clamp

1шт.

21

426-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

1шт.

22

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64 inch)

4шт.

23

231-1406

LOCK NUT,3/8"-16, GB

2шт.

24

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

1шт.

25

R14097

CLAMP

P-type

1шт.

26

L126399

TUBE,38.09 mm OD

return, hose to filter

1шт.

27

218-5074

HYD CONNECTOR,1-7/8" - 12 Male JIC x 1-7/8" - 12 Male ORB

ADAPTER straight, 1-7/8-12 inch flare x O-ring boss, Includes: Ref. 28

1шт.

28

237-6024

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

1шт.

29

L105791

U-BOLT

special

1шт.

30

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

2шт.

31

231-1445

NUT,5/16"-18, GB

2шт.

32

L126373

FILTER ASSY

Hydraulic Oil, see Figure 8-08

1шт.

33

187563A1

SPACER

13 x 25 x 28 mm

4шт.
