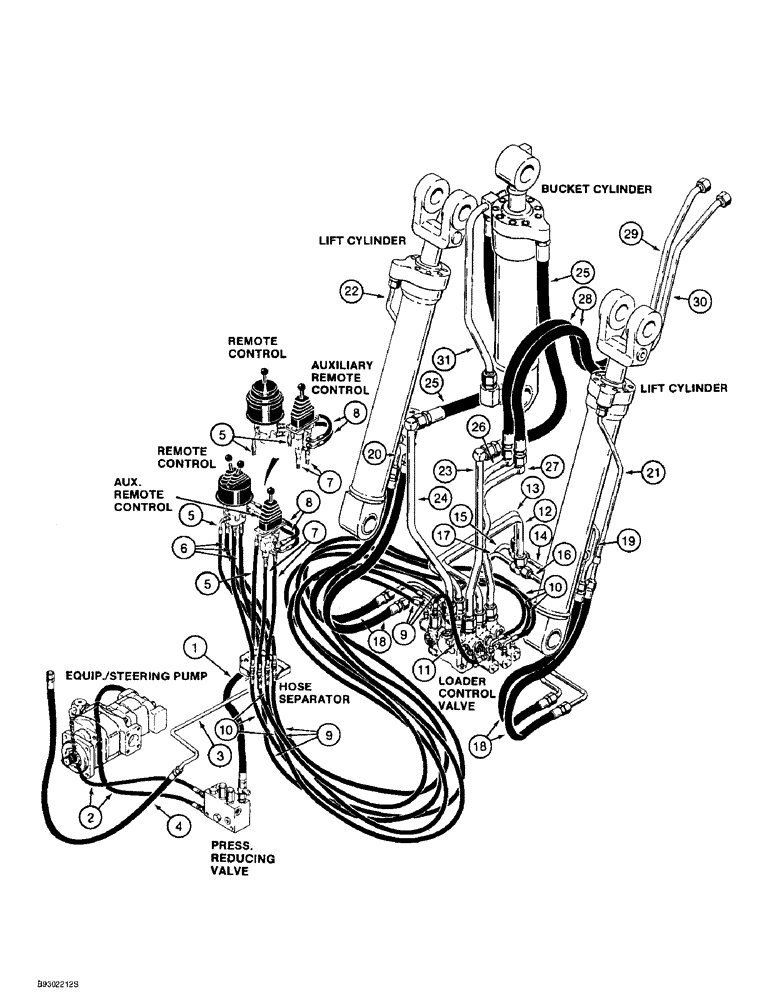

Запчасти Case 621B (1-22) - PICTORIAL INDEX, LOADER HYDRAULIC CIRCUIT - Z-BAR LOADER, THREE SPOOL CONTROL VALVE (00) - PICTORIAL INDEX

1

Hose, hose separator to pressure reducing valve - Figure 8-79

1шт.

2

Hose, pressure reducing valve to elbow at steering pump - Figure 8-79

1шт.

3

Tube, hose separator to hose at hydraulic reservoir - Figure 8-79

1шт.

4

Hose, tube to hydraulic reservoir - Figure 8-79

1шт.

5

Hose, remote controls to hose separator, hydraulic reservoir and pressure reducing valve ports - Figure 8-69, 8-71

1шт.

6

Hose, remote control to hose separator ports 1A, 1B, 2A and 2B - Figure 8-69, 8-71

1шт.

7

Hose, auxiliary remote control to hose separator ports 3A and 3B - Figure 8-69, 8-71

1шт.

8

Hose, auxiliary remote control to remote control - Figure 8-69, 8-71

1шт.

9

Hose, hose separator to ports 1B, 2A, and 3B - Figure 8-73

1шт.

10

Hose, hose separator to ports 1A, 2B, and 3A - Figure 8-73

1шт.

11

Hose, inlet and outlet section to tee at port 1A - Figure 8-73

1шт.

12

Supply tube, right-hand, at valve to cylinders - Figure 8-11

1шт.

13

Supply tube, left-hand, at valve to cylinders - Figure 8-11

1шт.

14

Lift tube, right-hand rod end - Figure 8-11

1шт.

15

Lift tube, left-hand rod end - Figure 8-11

1шт.

16

Lift tube, right-hand closed end - Figure 8-11

1шт.

17

Lift tube, left-hand closed end - Figure 8-11

1шт.

18

Hose, at cylinders - Figure 8-11

1шт.

19

Tube, right-hand, cylinder closed end - Figure 8-11

1шт.

20

Tube, left-hand, cylinder closed end - Figure 8-11

1шт.

21

Tube, right-hand, cylinder rod end - Figure 8-11

1шт.

22

Tube, left-hand, cylinder rod end - Figure 8-11

1шт.

23

Supply tube, right-hand - Figure 8-13

1шт.

24

Supply tube, left-hand - Figure 8-13

1шт.

25

Hose, tube to bucket cylinder - Figure 8-13

1шт.

26

Tube, left-hand, auxiliary section to hose - Figure 8-17

1шт.

27

Tube, right-hand, auxiliary section to hose - Figure 8-17

1шт.

28

Hose, tube at loader valve to tube on lift arm - Figure 8-17

1шт.

29

Tube, left-hand, at loader arm - Figure 8-17

1шт.

30

Tube, right-hand, at loader arm - Figure 8-17

1шт.

31

Tube, bucket cylinder, closed end - Figure 8-13

1шт.
