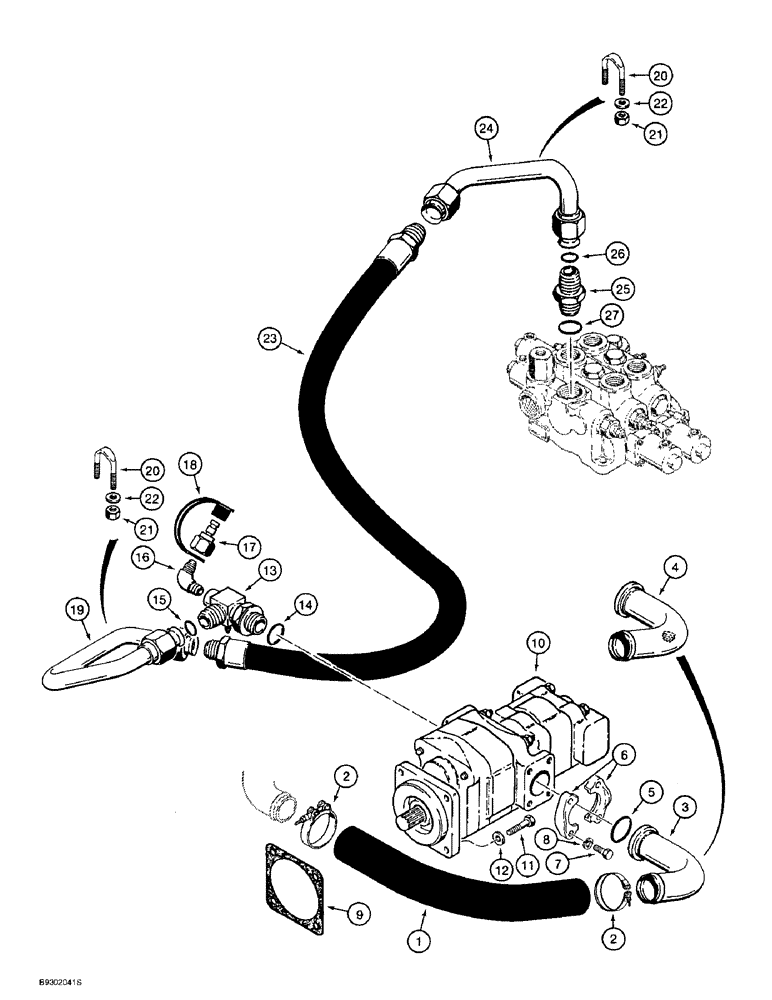

Запчасти Case 621B (8-04) - HYDRAULIC CIRCUIT, RESERVOIR TO PUMP AND LOADER CONTROL VALVE (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
245005A1
HOSE,50.8mm ID x 850mm L
Suction, Hydraulic reservoir to pump, Replaces L125344
1шт.
2
L126871
CLAMP
adj, hose
2шт.
3
L125356
PIPE,50.8 mm OD x 183, 180 mm L
suction, at pump, use on models without auxiliary steering
1шт.
4
L125583
TUBE
suction, at pump, use on models with auxiliary steering
1шт.
5
238-5228
O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro
1шт.
6
A14141
FLANGE
split, 2 inch, tube
2шт.
7
426-824
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8
4шт.
8
80679
LOCK WASHER,1/20.507 CST ZND
4шт.
9
A12304
GASKET,0.4mm Thk
mounting, pump
1шт.
10
L127270
PUMP, HYDRAULIC
ASSEMBLY equipment and steering, see Figure 8-28
1шт.
L127270R
REMAN-HYD PUMP
621B (3/93-12/98)
1шт.
L127270C
CORE-HYDRAULIC PUMP
Return Number
1шт.
11
828-12045
BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd
4шт.
12
896-11012
WASHER,13.5mm ID x 24mm OD x 3mm Thk
4шт.
13
L127385
FITTING
MANIFOLD pump, at tube to control valve, Includes: Ref. 14 and 15
1шт.
14
237-6020
O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro
Boss end
1шт.
16
218-486
ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF
1шт.
17
D137625
QUICK MALE COUPLING,1 - 1/16" - 12UNF - 2B ID
Quick disconnect
1шт.
18
H434163
DUST CAP
Coupler
1шт.
19
L129859
TUBE,31.75 mm OD
hydraulic pressure, at pump to control valve
1шт.
20
L104253
U-BOLT
U, tube retaining
2шт.
21
231-1445
NUT,5/16"-18, GB
4шт.
22
495-21038
WASHER,5/16"
(flat, 3/8 x 7/8 x 3/32")
4шт.
23
L124231
HOSE,25.4mm ID x 1000mm L, SAE 100R12
Supply, Pump to Control Valve
1шт.
24
L118737
PIPE,31.75 mm OD
supply, at control valve
1шт.
25
L124289
CONNECTOR, ELEC
CONNECTOR ADAPTER straight, special, Includes: Ref. 26 and 27
1шт.
26
238-6024
O-RING,0.07" Thk x 1.114" ID, -24, Cl 6, 90 Duro
Flare end
1шт.
27
237-6020
O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro
Boss end
1шт.
Выбрано товаров: 29
