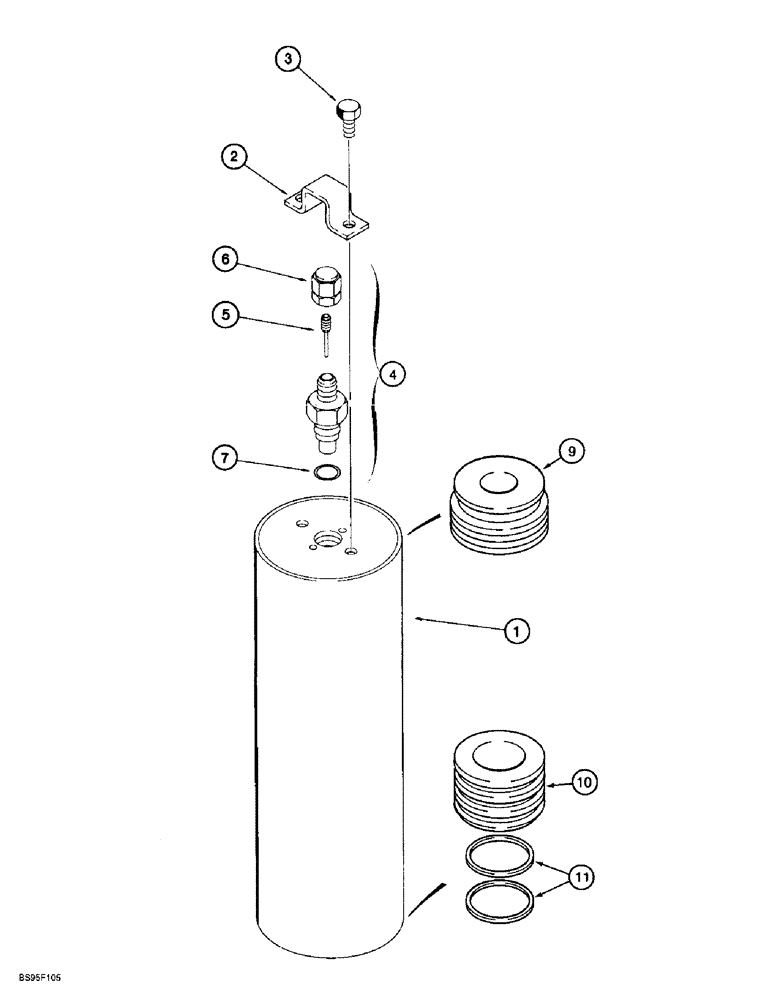

Запчасти Case 621B (7-24) - BRAKE ACCUMULATOR, ACCUMULATOR ASSEMBLY, 1978111C1, 128191A1 (07) - BRAKES

1978111C1

TANK

ACCUMULATOR ASSEMBLY hydraulic, with welded ends, Includes: Ref. 1 - 8, no longer available, order 128191A1

2шт.

1

NSS

NOT SOLD SEPARAT

TUBE accumulator

1шт.

2

1341920C1

PROTECTOR

valve

1шт.

3

276-14912

SELF-TAP SCREW,Hex Hd, 3/8" x 3/4"

3/8 NC x 3/4 inch

2шт.

4

1978142C1

VALVE

ASSEMBLY charge, Includes: Ref. 5 - 7

1шт.

5

1978143C1

PISTON

CORE valve

1шт.

6

1978144C1

CAP

valve

1шт.

7

1978158C1

O-RING

O-RING valve

1шт.

8

1341919C1

SEAL KIT

accumulator, not illustrated

1шт.

128191A1

ACCUMULATOR,1.9L

ASSEMBLY hydraulic, with threaded ends, Includes: Ref. 1 - 11 below, Replaces 1978111C1

1шт.

1

NSS

NOT SOLD SEPARAT

BODY accumulator

1шт.

2

1341920C1

PROTECTOR

valve

1шт.

3

276-14912

SELF-TAP SCREW,Hex Hd, 3/8" x 3/4"

3/8 NC x 3/4 inch

2шт.

1978142C1

VALVE

ASSEMBLY charge, no longer available, order 192900A1

1шт.

192900A1

VALVE

ASSEMBLY accumulator charging, Includes: Ref. 4 - 7

1шт.

4

NSS

NOT SOLD SEPARAT

VALVE accumulator charging

1шт.

5

1978143C1

PISTON

CORE valve

1шт.

6

1978144C1

CAP

valve

1шт.

7

1978158C1

O-RING

O-RING valve

1шт.

8

1341919C1

SEAL KIT

accumulator

1шт.

9

S301363

GLAND

accumulator

1шт.

10

S301364

PISTON

accumulator

1шт.

11

S301365

RING

wear, teflon, piston

2шт.
