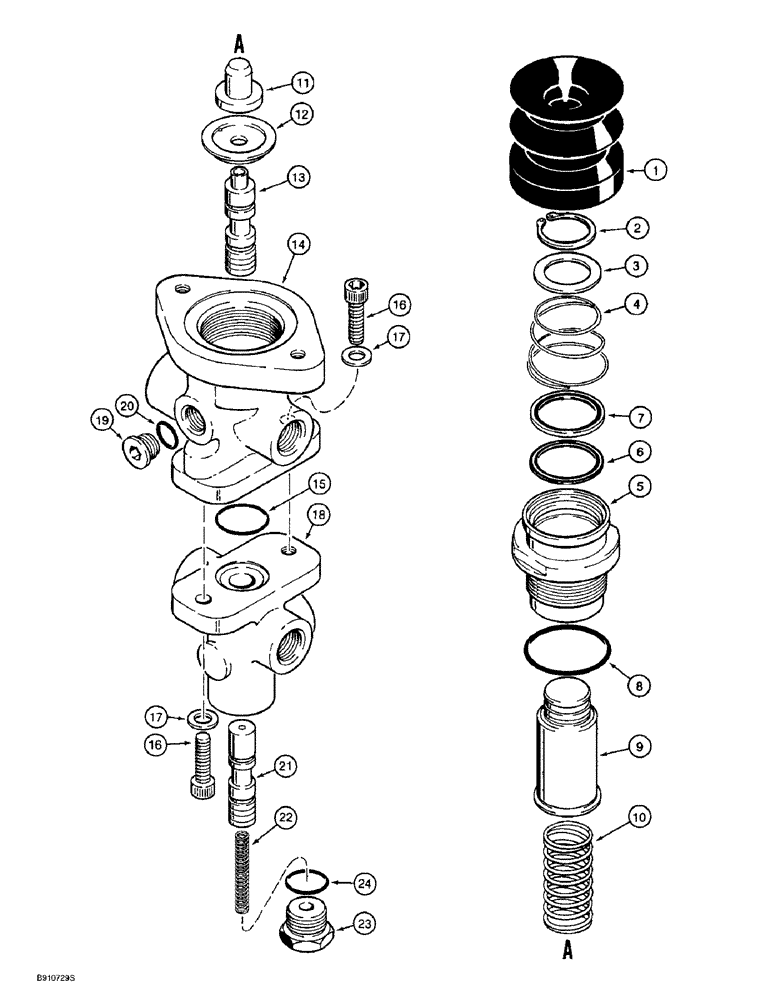

Запчасти Case 621B (7-23A) - BRAKE VALVE (07) - BRAKES

123140A1

VALVE

ASSEMBLY brake, main, Includes: Ref. 1 - 24, see Figure 7-14 for mounting

1шт.

1

100660A1

BOOT

brake valve

1шт.

Part of Gasket Kit P/N 100659A1

1шт.

2

100-1187

SNAP RING,#87, Ext

1шт.

3

100665A1

WASHER

flat, special

1шт.

4

100666A1

SPRING

gland

1шт.

5

100667A1

CENTERING RING

GLAND valve

1шт.

6

100662A1

SEALING RING

gland

1шт.

Part of Gasket Kit P/N 100659A1

1шт.

7

NSS

NOT SOLD SEPARAT

WIPER gland

1шт.

Part of Gasket Kit P/N 100659A1

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING gland

1шт.

Part of Gasket Kit P/N 100659A1

1шт.

9

NSS

NOT SOLD SEPARAT

PLUNGER valve

1шт.

10

NSS

NOT SOLD SEPARAT

SPRING large, upper

1шт.

11

NSS

NOT SOLD SEPARAT

POPPET spring

1шт.

12

100668A1

CUP WASHER

SEAT plunger

1шт.

13

NSS

NOT SOLD SEPARAT

SPOOL upper

1шт.

14

NSS

NOT SOLD SEPARAT

BODY upper

1шт.

15

100664A1

O-RING,0.864" ID x 1.004" OD x 0.07"

ower body

1шт.

Part of Gasket Kit P/N 100659A1

1шт.

16

100672A1

HEX SOC SCREW,5/16" - 18 x 1"

hex socket, special

2шт.

17

100673A1

WASHER

flat, special

2шт.

18

NSS

NOT SOLD SEPARAT

BODY lower

1шт.

19

9625178

PLUG,9/16" - 18 ORB

Incl. Ref. 20

2шт.

21

NSS

NOT SOLD SEPARAT

SPOOL lower

1шт.

22

100669A1

SPRING

small, lower

1шт.

23

134493A1

PLUG

lower body, Includes: Ref. 24

1шт.

24

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Part of Gasket Kit P/N 100659A1

1шт.

100659A1

SEAL KIT

Includes: Ref. 1, 6 - 8, 15, 24

1шт.

20

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
