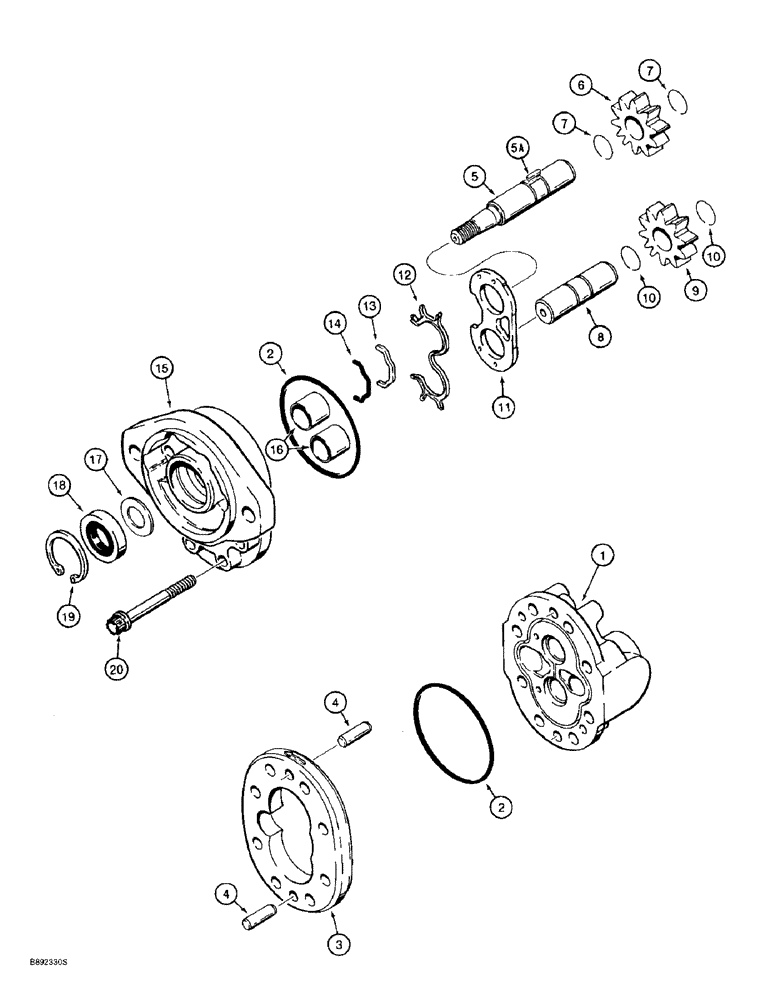

Запчасти Case 621B (7-22) - BRAKE PUMP, PUMP ASSEMBLY, S515954, 284516A1, 244573A1 (07) - BRAKES

S515954

PUMP, HYDRAULIC

ASSEMBLY brake, Includes: Ref. 1 - 20 for mounting hardware see Figure 7-08, Ref 17 and 18, Serial Range: -JEE0054469

1шт.

387411A2R

REMAN-HYD PUMP

621B Serial Range: -JEE0054469 (3/93-12/98), Reman for New P/N S515954

1шт.

387411A2C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

S300370

COVER

port end

1шт.

2

238-5041

O-RING,0.07" Thk x 2.989" ID, -41, Cl 5, 75 Duro

2шт.

Part of Gasket Repair Kit P/N S300373

1шт.

N13657

BODY

HOUSING ASSEMBLY gear, Includes: Ref. 3 and 4

1шт.

3

NSS

NOT SOLD SEPARAT

Body, gear housing

1шт.

4

71120

VALVE

PIN dowel

2шт.

S300372

PINION

GEAR ASSEMBLY drive, Includes: Ref. 5 - 7

1шт.

5

S300379

DRIVE SHAFT

1шт.

5a

S300378

BUCKET TOOTH KEY

round, shaft

1шт.

6

S300375

PINION

Gear, shaft

1шт.

7

S300377

RING, SNAP

RING SNAP

2шт.

N13658

SPROCKET ASSY.

GEAR idler, Includes: Ref. 8 - 10

1шт.

8

S300376

DRIVE SHAFT

idler

1шт.

9

S300375

PINION

Gear, shaft

1шт.

10

S300377

RING, SNAP

RING SNAP

2шт.

11

NSS

NOT SOLD SEPARAT

PLATE wear

1шт.

Part of Gasket Repair Kit P/N S300373

1шт.

12

NSS

NOT SOLD SEPARAT

RETAINER seal

1шт.

Part of Gasket Repair Kit P/N S300373

1шт.

13

NSS

NOT SOLD SEPARAT

RING backup, seal

1шт.

Part of Gasket Repair Kit P/N S300373

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL pump

1шт.

Part of Gasket Repair Kit P/N S300373

1шт.

S300371

COVER

ASSEMBLY drive end, Includes: Ref. 15 and 16

1шт.

15

NSS

NOT SOLD SEPARAT

Cover, drive end

1шт.

16

S300374

BUSHING

cover

2шт.

17

N13135

WASHER

special

1шт.

Part of Gasket Repair Kit P/N S300373

1шт.

18

S300380

SEAL

shaft

1шт.

Part of Gasket Repair Kit P/N S300373

1шт.

19

100-21137

SNAP RING,1.375", Int, #137

1шт.

Part of Gasket Repair Kit P/N S300373

1шт.

20

380-2532

12 PT SCREW,Flg, 5/16" - 18 x 2", Gr 8

12 point flange, chemical locking, 5/16 NC x 2 inch

8шт.

S300373

SEAL KIT

repair, Includes: Ref. 2, 11 - 14, 17 - 19

1шт.

284516A1

PUMP, HYDRAULIC

ASSEMBLY brake, not illustrated, production only, for service order 244573A1 JEE0054469 to

1шт.

244573A1

PUMP, HYDRAULIC

ASSEMBLY brake, Includes: Ref. 21 - 24, not illustrated JEE0054469 to

1шт.

87453065R

REMAN-HYD PUMP

621B CASE WHEEL LOADER (NORTH AMERICA), ASSEMBLY brake, JEE0054469 to (3/93-12/98), Reman for New PN 244573A1

1шт.

87453065C

CORE-HYDRAULIC PUMP

Return Number

1шт.

258247A1

SEAL KIT

Includes: Ref. 21 - 24, services 284516A1 or 244573A1

1шт.

21

NSS

NOT SOLD SEPARAT

Seal, Lip, Not Illustrated

1шт.

22

NSS

NOT SOLD SEPARAT

Seal, Section, Not Illustrated

2шт.

23

NSS

NOT SOLD SEPARAT

Seal, Channel, Not Illustrated

2шт.

24

NSS

NOT SOLD SEPARAT

Seal, Backup, Not Illustrated

2шт.
