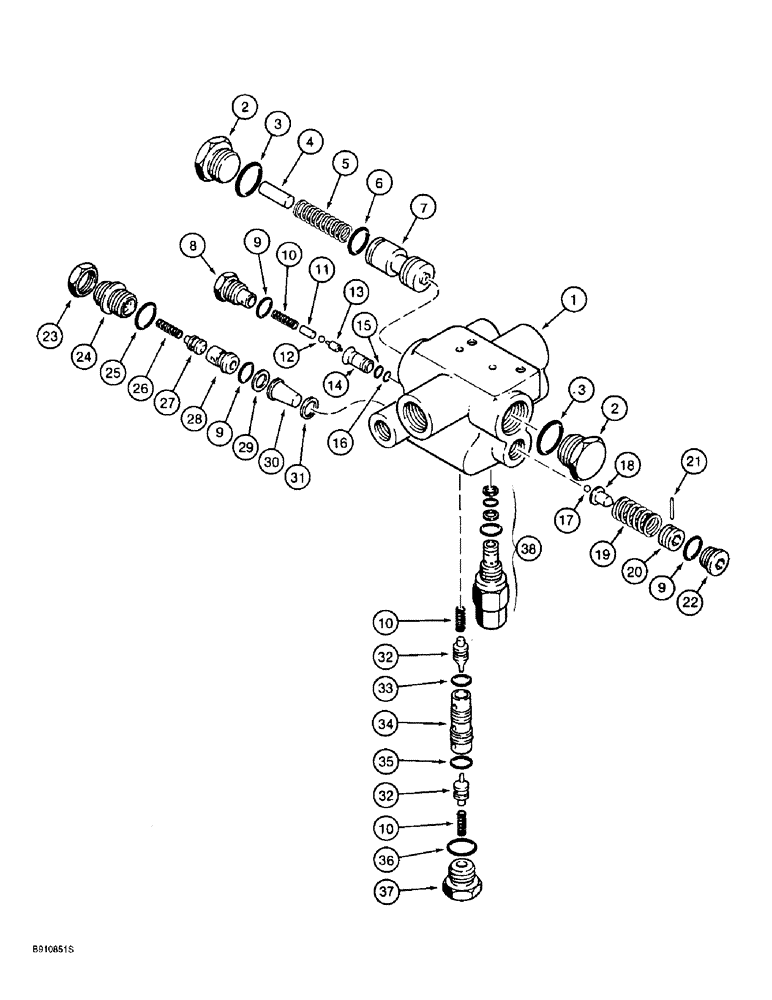

Запчасти Case 621B (7-20) - BRAKE ACCUMULATOR VALVE, L128116 (07) - BRAKES

L128116

VALVE

ASSEMBLY accumulator, brake, Includes: Ref. 1 - 38, see Figure 7-08 for mounting, no longer available, order 232531A1 on Figure 7-21A

1шт.

232531A1R

REMAN-HYD VALVE

621B (3/93 - 12/98), Reman for New P/N L128116

1шт.

232531A1C

CORE-VALVE HYD

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

BODY valve, brake accumulator

1шт.

2

NSS

NOT SOLD SEPARAT

PLUG large, Includes: Ref. 3

2шт.

3

NSS

NOT SOLD SEPARAT

O-RING plug

1шт.

Part of Repair Kit P/N S302036

1шт.

4

NSS

NOT SOLD SEPARAT

ROD plunger

1шт.

5

S302035

SPRING

rod

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING spool, small

1шт.

Part of Repair Kit P/N S302036

1шт.

7

NSS

NOT SOLD SEPARAT

SPOOL valve

1шт.

8

NSS

NOT SOLD SEPARAT

PLUG special

1шт.

9

NSS

NOT SOLD SEPARAT

O-RING plug

3шт.

Part of Repair Kit P/N S302036

1шт.

10

NSS

NOT SOLD SEPARAT

SPRING small

3шт.

11

NSS

NOT SOLD SEPARAT

ROD plunger

1шт.

12

NSS

NOT SOLD SEPARAT

BALL poppet

1шт.

13

NSS

NOT SOLD SEPARAT

POPPET spool

1шт.

14

NSS

NOT SOLD SEPARAT

SPOOL valve

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING spool, large

1шт.

Part of Repair Kit P/N S302036

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING spool, small

1шт.

Part of Repair Kit P/N S302036

1шт.

17

NSS

NOT SOLD SEPARAT

BALL seat

1шт.

18

NSS

NOT SOLD SEPARAT

SEAT spring

1шт.

19

S302034

SPRING

large

1шт.

20

NSS

NOT SOLD SEPARAT

PLUG hex socket, headless

1шт.

Part of Repair Kit P/N S302036

1шт.

21

NSS

NOT SOLD SEPARAT

SCREW set

1шт.

Part of Repair Kit P/N S302036

1шт.

22

NSS

NOT SOLD SEPARAT

PLUG hex socket

1шт.

23

NSS

NOT SOLD SEPARAT

NUT hex

1шт.

24

NSS

NOT SOLD SEPARAT

SCREW ASSEMBLY adjusting, includes washer

1шт.

25

NSS

NOT SOLD SEPARAT

O-RING screw

1шт.

Part of Repair Kit P/N S302036

1шт.

26

NSS

NOT SOLD SEPARAT

SPRING poppet

1шт.

27

NSS

NOT SOLD SEPARAT

POPPET valve

1шт.

Part of Repair Kit P/N S302036

1шт.

28

NSS

NOT SOLD SEPARAT

SEAT poppet

1шт.

29

NSS

NOT SOLD SEPARAT

WASHER outer

1шт.

30

NSS

NOT SOLD SEPARAT

FILTER valve

1шт.

Part of Repair Kit P/N S302036

1шт.

31

NSS

NOT SOLD SEPARAT

WASHER inner

1шт.

32

NSS

NOT SOLD SEPARAT

POPPET valve

2шт.

Part of Repair Kit P/N S302036

1шт.

33

NSS

NOT SOLD SEPARAT

O-RING small, spool

1шт.

Part of Repair Kit P/N S302036

1шт.

34

NSS

NOT SOLD SEPARAT

SPOOL valve

1шт.

35

NSS

NOT SOLD SEPARAT

O-RING large, spool

1шт.

Part of Repair Kit P/N S302036

1шт.

36

NSS

NOT SOLD SEPARAT

O-RING plug

1шт.

Part of Repair Kit P/N S302036

1шт.

37

NSS

NOT SOLD SEPARAT

PLUG end

1шт.

38

S302033

VALVE

relief

1шт.

S302036

SEAL KIT

KIT repair, Includes: Ref. 3, 6, 9, 15, 16, 20, 21, 25, 27, 30, 32, 33, 35, 36

1шт.

233562A1

SEAL KIT

KIT repair, steel ball check, included in kit S302036

1шт.
