(7-18) - MAIN BRAKE HYDRAULIC CIRCUIT, MAIN BRAKE VALVE TO REAR AXLE, PRIOR TO P.I.N. JEE0051723

Запчасти Case 621B (7-18) - MAIN BRAKE HYDRAULIC CIRCUIT, MAIN BRAKE VALVE TO REAR AXLE, PRIOR TO P.I.N. JEE0051723 (07) - BRAKES

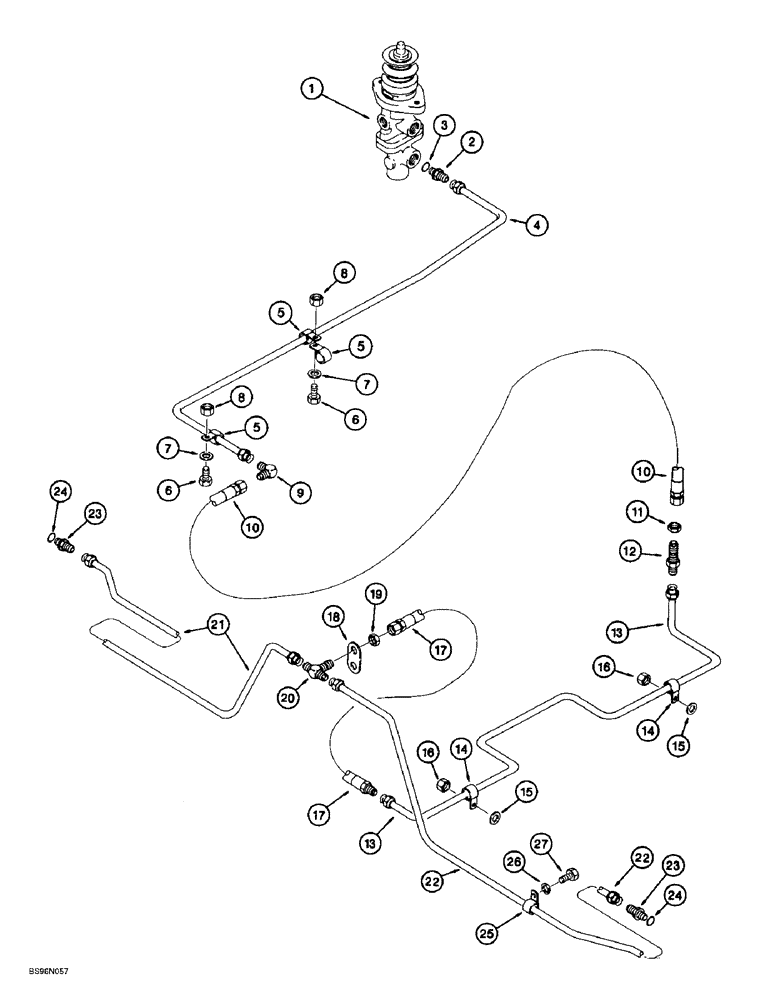

Схема запчастей Case 621B - (7-18) - MAIN BRAKE HYDRAULIC CIRCUIT, MAIN BRAKE VALVE TO REAR AXLE, PRIOR TO P.I.N. JEE0051723 (07) - BRAKES
5
14
23
23
24
17
14
10
24
8
15
18
13
5
16
19
2
10
4
6
22
11
22
25
8
16
7
26
5
1
6
13
21
27
15
7
12
17
3
9
20
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

123140A1

VALVE

ASSEMBLY brake, main, see Figure 7-23A

1шт.

2

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER straight, 9/16-18 flare x 3/4-16 inch O-ring boss, Includes: Ref. 3

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

107305A1

TUBE,9.53 mm OD, 885, 187 mm Length

rear brakes, valve to hose

1шт.

5

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

Closed

3шт.

6

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

2шт.

7

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

2шт.

8

231-1446

NUT,3/8" - 16, Gr 5

2шт.

9

218-473

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male JIC

ELBOW, 90 degree, 9/16-18 inch flare x flare

1шт.

10

107372A1

HOSE ASSY.

280 mm (11 inch) long, rear brakes, Serial Range: tube-tube

1шт.

11

218-1254

LOCK NUT,Blkhd, 9/16"-18

1шт.

12

218-673

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

ADAPTER straight, 9/16-18 in flare x bulkhead flare

1шт.

13

107439A1

TUBE,9.5 mm OD, 623, 103 mm Length

rear brake hose to tee at axle

1шт.

14

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

Closed

2шт.

15

187563A1

SPACER

13 x 25 x 28 mm

2шт.

16

231-1446

NUT,3/8" - 16, Gr 5

2шт.

17

107427A1

HOSE ASSY.

724 mm (28-1/2 inch) long, tube to tee at rear axle

1шт.

18

107334A1

BRACKET

tube mounting, use bolt from rear, Serial Range: axle-mount

1шт.

19

218-1254

LOCK NUT,Blkhd, 9/16"-18

1шт.

20

218-804

TEE,9/16"-18, 37 Degree, Blkhd

Flare branch x flare x flare

1шт.

21

120513A1

PIPE ASSY.

rear axle, left-hand

1шт.

22

120511A1

PIPE ASSY.

rear axle, right-hand

1шт.

23

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. Ref. 24

2шт.

25

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

7/16 inch, rear brake, replaces S64985 clamp

4шт.

26

492-11038

LOCK WASHER,3/8"

4шт.

27

426-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 8

4шт.

24

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
