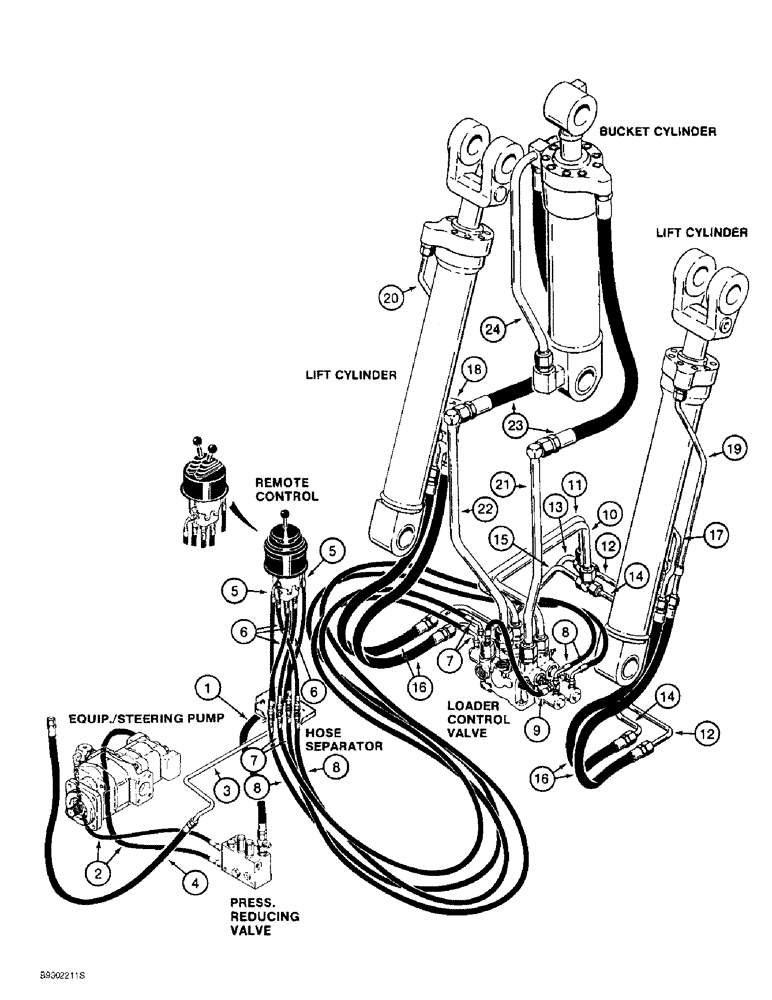

Запчасти Case 621B (1-20) - PICTORIAL INDEX, LOADER HYDRAULIC CIRCUIT - Z-BAR LOADER, TWO SPOOL CONTROL VALVE (00) - PICTORIAL INDEX

1

Hose, hose separator to pressure reducing valve - Figure 8-78

1шт.

2

Hose, pressure reducing valve to elbow at steering pump - Figure 8-78

1шт.

3

Tube, hose separator to hose at hydraulic reservoir - Figure 8-78

1шт.

4

Hose, tube to hydraulic reservoir - Figure 8-78

1шт.

5

Hose, remote control to hose separator, hydraulic reservoir and pressure reducing valve ports - Figure 8-62, 8-64

1шт.

6

Hose, hose separator to remote control - Figure 8-62, 8-64

1шт.

7

Hose, hose separator to ports 1B and 2A - Figure 8-66

1шт.

8

Hose, hose separator to ports 1A and 2B - Figure 8-66

1шт.

9

Hose, inlet and outlet section to tee at port 1A - Figure 8-66

1шт.

10

Supply tube, right-hand, at valve to cylinders - Figure 8-10

1шт.

11

Supply tube, left-hand, at valve to cylinders - Figure 8-10

1шт.

12

Lift tube, right-hand rod end - Figure 8-10

1шт.

13

Lift tube, left-hand rod end - Figure 8-10

1шт.

14

Lift tube, right-hand closed end - Figure 8-10

1шт.

15

Lift tube, left-hand closed end - Figure 8-10

1шт.

16

Hose, at cylinders - Figure 8-10

1шт.

17

Tube, right-hand, cylinder closed end - Figure 8-10

1шт.

18

Tube, left-hand, cylinder closed end - Figure 8-10

1шт.

19

Tube, right-hand, cylinder rod end - Figure 8-10

1шт.

20

Tube, left-hand, cylinder rod end - Figure 8-10

1шт.

21

Supply tube, right-hand - Figure 8-12

1шт.

22

Supply tube, left-hand - Figure 8-12

1шт.

23

Hose, tube to bucket cylinder - Figure 8-12

1шт.

24

Tube, bucket cylinder, closed end - Figure 8-12

1шт.
