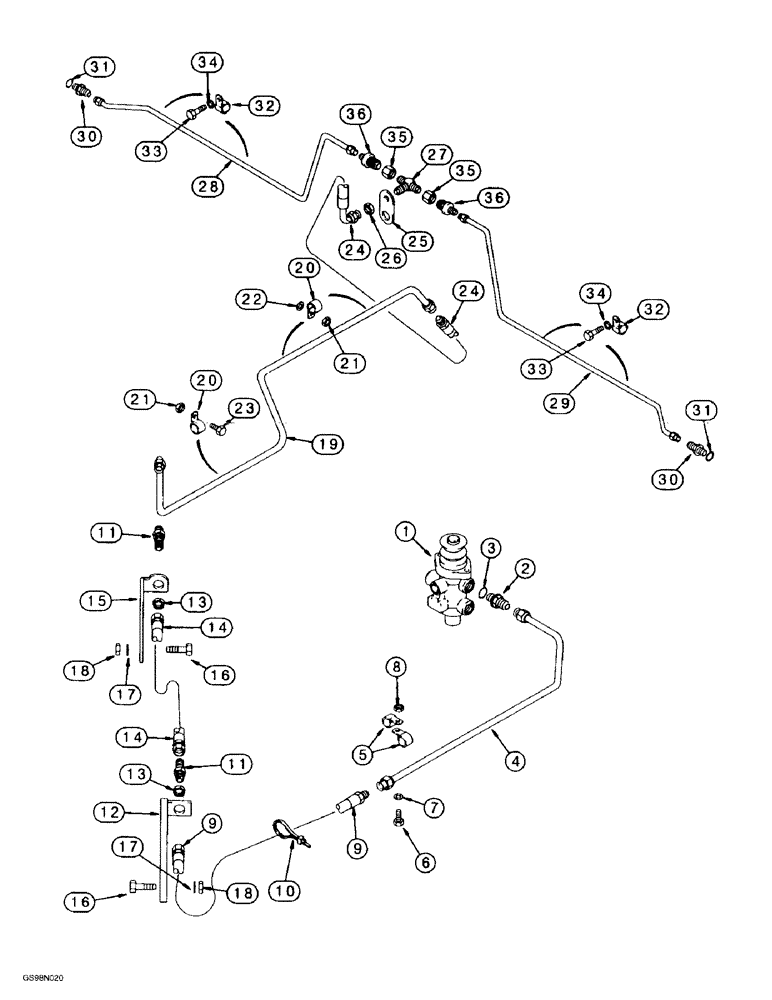

Запчасти Case 621B (7-17A) - MAIN BRAKE HYDRAULIC CIRCUIT, MAIN BRAKE VALVE TO FRONT AXLE, P.I.N. JEE0051723 AND AFTER (07) - BRAKES

1

223438A1

VALVE

ASSEMBLY brake, main, see Figure 7-23C

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 3

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

192179A1

TUBE

front brakes, Serial Range: valve-hose

1шт.

5

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P-type

2шт.

6

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

1шт.

7

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

1шт.

8

231-1446

NUT,3/8" - 16, Gr 5

1шт.

9

192825A1

HOSE

745 mm (29-3/8 inch) long, front brakes, Serial Range: tube-hose

1шт.

10

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, nylon

1шт.

11

218-674

FITTING,Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

ADAPTER straight, 3/4-16 inch flare x bulkhead flare

2шт.

12

189271A1

SUPPORT

BRACKET brake hose mounting, rear

1шт.

13

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

2шт.

14

192828A1

HOSE

405 mm (16 inch) long, Serial Range: hose-tube

1шт.

15

189273A1

SUPPORT

BRACKET brake hose and tube mounting, front

1шт.

16

426-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

4шт.

17

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

4шт.

18

231-1446

NUT,3/8" - 16, Gr 5

4шт.

19

192181A1

TUBE

front brakes to tee at front axle, if used

1шт.

20

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P-type

3шт.

21

231-1446

NUT,3/8" - 16, Gr 5

3шт.

22

496-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened

2шт.

23

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

1шт.

24

192831A1

HOSE

575 mm (22-5/8 inch) long, from tube to tee at front axle

1шт.

25

189274A1

SPACER

BRACKET tube mounting, use bolt from front, Serial Range: axle-mount

1шт.

26

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

1шт.

27

218-805

TEE,3/4"-16, 37 Degree, Blkhd

3/4-16 inch bulkhead flare branch x flare x flare

1шт.

28

192827A1

TUBE,9.5 mm OD

front axle, left-hand

1шт.

29

192826A1

TUBE,9.5 mm OD

front axle, right-hand

1шт.

30

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. Ref. 31

2шт.

32

S64985

CLAMP

P-type, front brake

4шт.

33

426-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 8

4шт.

34

492-11038

LOCK WASHER,3/8"

4шт.

35

218-344

TUBE NUT,37 Degree, 3/4"-16, Type B

1/2 inch NF

2шт.

36

218-792

REDUCER,37 Degree, 1/2" x 3/8" Tube

ADAPTER 1/2 tube OD x 9/16-18 inch flare

2шт.

31

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
