Запчасти Case 621B (7-14) - MAIN BRAKE HYDRAULIC CIRCUIT TUBES AT ACCUMULATOR TO MAIN BRAKE VALVE, PRIOR TO P.I.N. JEE0051723 (07) - BRAKES

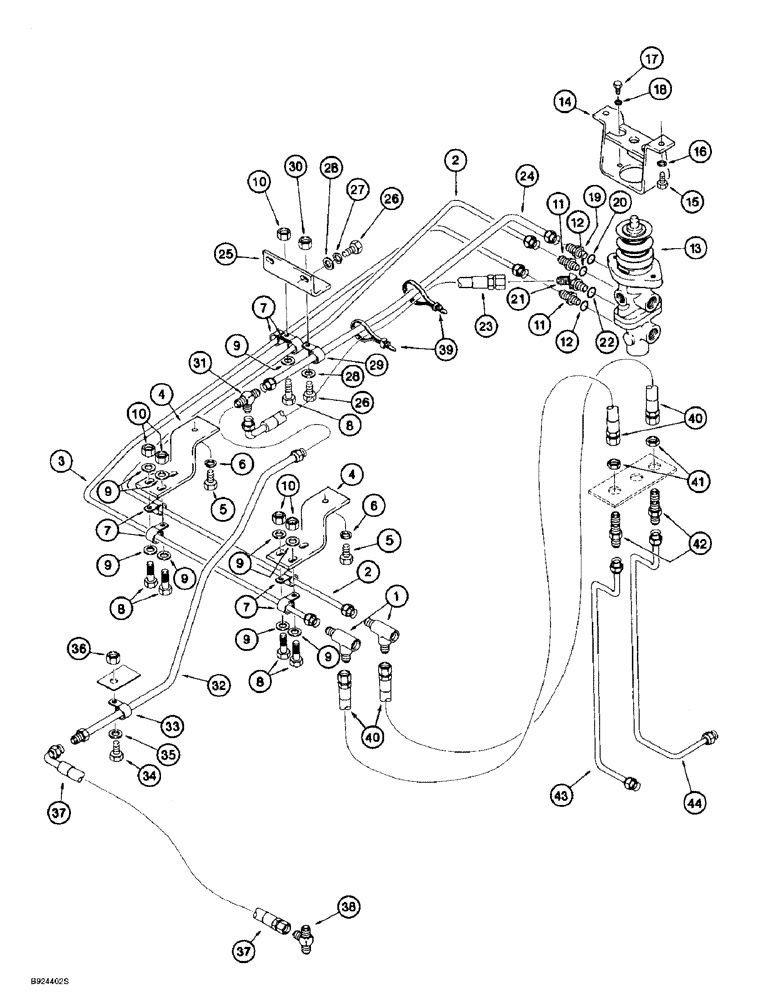

Схема запчастей Case 621B - (7-14) - MAIN BRAKE HYDRAULIC CIRCUIT TUBES AT ACCUMULATOR TO MAIN BRAKE VALVE, PRIOR TO P.I.N. JEE0051723 (07) - BRAKES
9
4
15
12
32
20
26
9
26
5
6
1
28
40
8
9
4
10
24
40
27
9
28
30
35
41
18
34
2
19
25
7
23
37
7
43
16
21
9
3
6
33
2
11
39
44
31
12
13
10
42
11
36
37
14
29
8
17
22
10
9
38
9
8
7
5

Артикул

Название

Примечание

Количество

1

104995A1

TEE

special, see Figure 4-28 for transmission declutch switches

2шт.

2

185129A1

TUBE,9.5 mm OD, 907, 604 mm Length

tee to main brake valve upper port, replaces 107309A1 tube

1шт.

3

185131A1

TUBE,9.5 mm OD, 993, 650 mm Length

tee to main brake valve lower port, replaces 107311A1 tube

1шт.

4

L129538

SUPPORT

BRACKET mounting, tube

2шт.

5

426-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

2шт.

6

492-11031

LOCK WASHER,5/16"

2шт.

7

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

Closed

6шт.

8

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

5шт.

9

496-21041

WASHER,13/32" x 13/16" x .089", HDN

9шт.

10

231-1446

NUT,3/8" - 16, Gr 5

5шт.

11

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER straight, 9/16-18 flare x 3/4-16 inch O-ring boss, Includes: Ref. 12

2шт.

12

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Boss end

1шт.

13

123140A1

VALVE

ASSEMBLY brake, main, see Figure 7-23A

1шт.

14

1990621C2

GUIDE

BRACKET brake rod

1шт.

15

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

2шт.

16

492-11038

LOCK WASHER,3/8"

2шт.

17

426-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

2шт.

18

492-11031

LOCK WASHER,5/16"

2шт.

19

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 20

1шт.

20

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Boss end

1шт.

21

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Adj O-ring boss, Incl. Ref 22

1шт.

22

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

23

R57486

HOSE

700 mm (27-9/16 inch) long, brake valve lower tank port to, Serial Range: tube-reservoir

1шт.

24

107313A1

TUBE,12.7 mm OD, 597, 83 mm Length

main brake valve to tee

1шт.

25

L128742

SUPPORT

BRACKET mounting, tube

1шт.

26

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

3шт.

27

492-11038

LOCK WASHER,3/8"

2шт.

28

496-21041

WASHER,13/32" x 13/16" x .089", HDN

3шт.

29

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P-type, Replaces 49838 clamp

1шт.

30

231-1446

NUT,3/8" - 16, Gr 5

1шт.

31

218-594

TEE,3/4"-16, 37 Degree

3/4-16 inch flare branch x flare x flare

1шт.

32

107315A1

TUBE,12.7 mm OD, 629, 66 mm Length

brake return, tee to hose

1шт.

33

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P-type, Replaces 49838 clamp

1шт.

34

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

1шт.

35

496-21041

WASHER,13/32" x 13/16" x .089", HDN

1шт.

36

231-1446

NUT,3/8" - 16, Gr 5

1шт.

37

107304A1

HOSE ASSY.

380 mm (15 inch), Serial Range: long,-reservoir

1шт.

38

218-614

TEE,3/4"-16, 37 Degree x 3/8"-18, NPTF Run

1шт.

39

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 inch, nylon

1шт.

40

107372A1

HOSE ASSY.

280 mm (11 inch) long, to brake valve

2шт.

41

218-1254

LOCK NUT,Blkhd, 9/16"-18

2шт.

42

218-673

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

ADAPTER straight, 9/16-18 in flare x bulkhead flare

2шт.

43

185125A1

TUBE,9.5 mm OD, 508, 73 mm Length

accumulator to brake valve upper port, replaces 107445A1 tube

1шт.

44

185127A1

TUBE,9.5 mm OD, 505 mm Length

accumulator to brake valve lower port, replaces 107443A1 tube

1шт.

Выбрано товаров: 44
