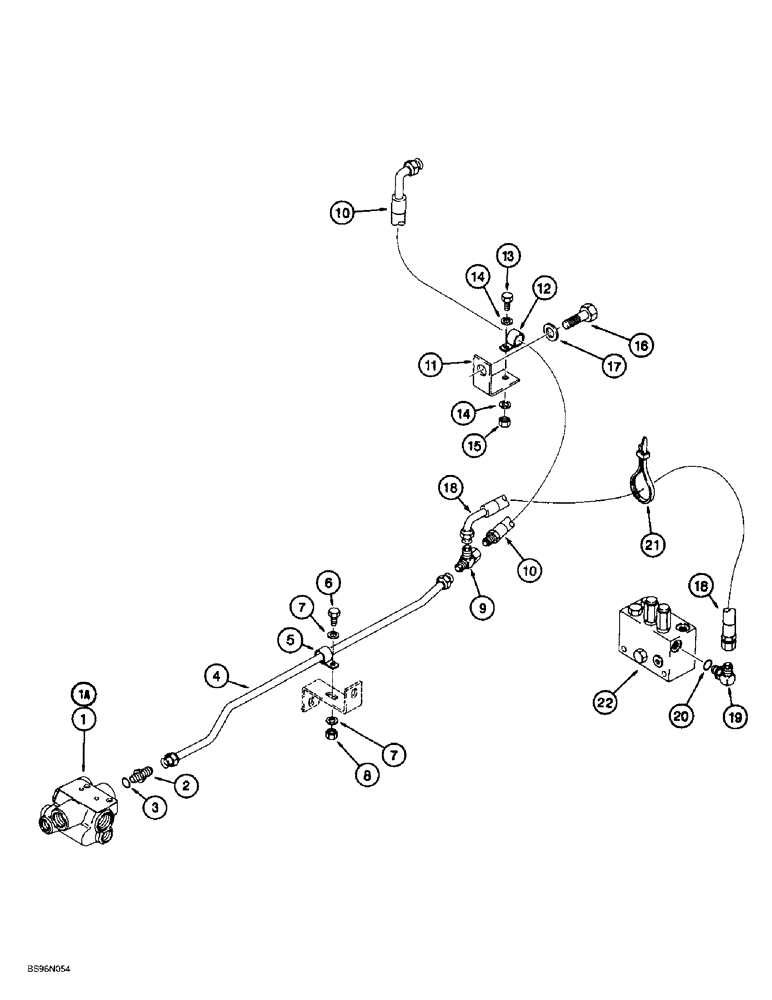

Запчасти Case 621B (7-12) - MAIN BRAKE HYD. CIRCUIT, ACCUMULATOR VALVE TO PRESSURE REDUCING VALVE, RETURN PORT AND OIL FILTERS (07) - BRAKES

1

L128116

VALVE

ASSEMBLY accumulator, see Figure 7-20, see Figure 7-08 for mounting hardware

1шт.

232531A1R

REMAN-HYD VALVE

621B (3/93 - 12/98), Reman for New P/N L128116

1шт.

232531A1C

CORE-VALVE HYD

Return Number

1шт.

1a

232531A1

VALVE

ASSEMBLY accumulator, see Figure 7-21A, see Figure 7-08 or 7-09 for mounting hardware

1шт.

232531A1R

REMAN-HYD VALVE

621B (3/93 - 12/98)

1шт.

232531A1C

CORE-VALVE HYD

Return Number

1шт.

2

218-5070

HYD CONNECTOR,3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER straight, 3/4-16 flare x 1-1/16-12 in O-ring boss, Includes: Ref. 3

1шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

4

107437A1

TUBE

Valve To Tee To Pressure Reducing Valve

1шт.

5

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P-type, Replaces 49838 clamp

1шт.

6

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

1шт.

7

496-21041

WASHER,13/32" x 13/16" x .089", HDN

2шт.

8

231-1446

NUT,3/8" - 16, Gr 5

1шт.

9

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

1шт.

10

107436A1

HOSE ASSY.

1130 mm (44-1/2 in) long, to oil filters

1шт.

11

107359A1

BRACKET

hose mounting

1шт.

12

515-23254

CLAMP,1", Insul, 3/8" Bolt

P-type

1шт.

13

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

1шт.

14

496-21041

WASHER,13/32" x 13/16" x .089", HDN

2шт.

15

231-1446

NUT,3/8" - 16, Gr 5

1шт.

16

614-20040

BOLT,Hex, M20 x 2.5 x 40mm, Cl 8.8, Full Thd

1шт.

17

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

22 x 37 x 4 mm

1шт.

18

109626A1

HOSE ASSY.

580 mm (22-7/8 in) long, Tee To Pressure Reducing Valve

1шт.

19

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90 deg, 9/16 in flare x adj O-ring boss, Z-Bar loaders, Includes: Ref. 20

1шт.

This elbow is replaced with a tee on XT loader models, see Figure 8-24, Ref. 6 for the correct part number.

1шт.

21

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, nylon

1шт.

22

108525A3

VALVE

ASSEMBLY pressure reducing, see Figure 8-92

1шт.

20

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
