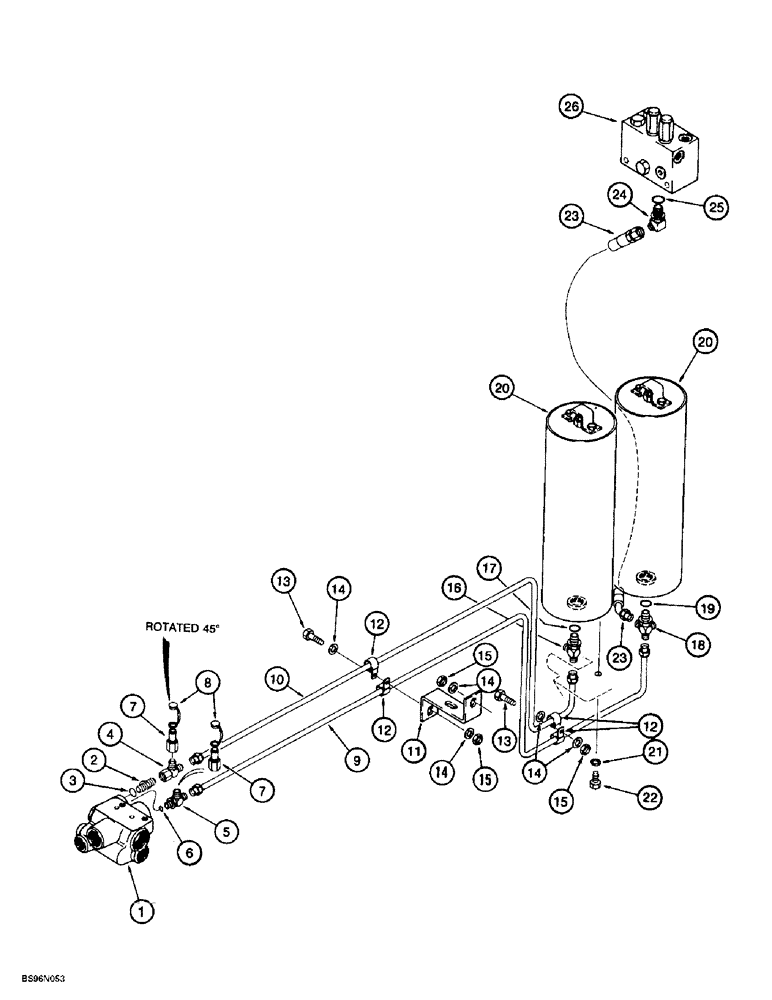

Запчасти Case 621B (7-11A) - MAIN BRAKE HYD. CIRCUIT ACCUM. VALVE TO PRESS. REDUC. VALVE PRESS. PORT, P.I.N. JEE0051723 & AFTER (07) - BRAKES

1

232531A1

VALVE

ASSEMBLY accumulator, see Figure 7-21A, see Figure 7-08 or 7-09 for mounting hardware

1шт.

232531A1R

REMAN-HYD VALVE

621B (3/93 - 12/98), P.I.N. JEE0051723 & AFTER

1шт.

232531A1C

CORE-VALVE HYD

Return Number

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 3

1шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

1шт.

5

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Includes: Ref. 6

1шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

7

192834A1

COUPLING

quick disconnect

2шт.

8

H434163

DUST CAP

2шт.

9

192184A1

TUBE

accumulator charge, valve lower port to front accumulator

1шт.

10

192185A1

TUBE

accumulator charge, valve upper port to rear accumulator

1шт.

11

107349A1

BRACKET

tube mounting

1шт.

12

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P-type

4шт.

13

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

2шт.

14

496-21041

WASHER,13/32" x 13/16" x .089", HDN

5шт.

15

231-1446

NUT,3/8" - 16, Gr 5

3шт.

16

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Includes: Ref. 17

1шт.

17

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

18

193975A1

TEE

FITTING special, accumulator, Includes: Ref. 19

1шт.

19

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

20

128191A1

ACCUMULATOR,1.9L

ASSEMBLY hydraulic, see Figure 7-24

2шт.

21

80679

LOCK WASHER,1/20.507 CST ZND

6шт.

22

414-814

BOLT,Hex, 1/2" - 20 x 7/8", Gr 5

6шт.

23

110927A1

HOSE ASSY.

350 mm (13-3/4 inch) long, pressure, reducing, Serial Range: valve-accumulator

1шт.

24

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

45 degree, 9/16-18 inch flare x adj O-ring boss, Includes: Ref. 25

1шт.

26

108525A3

VALVE

ASSEMBLY pressure reducing, see Figure 8-92

1шт.

25

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
