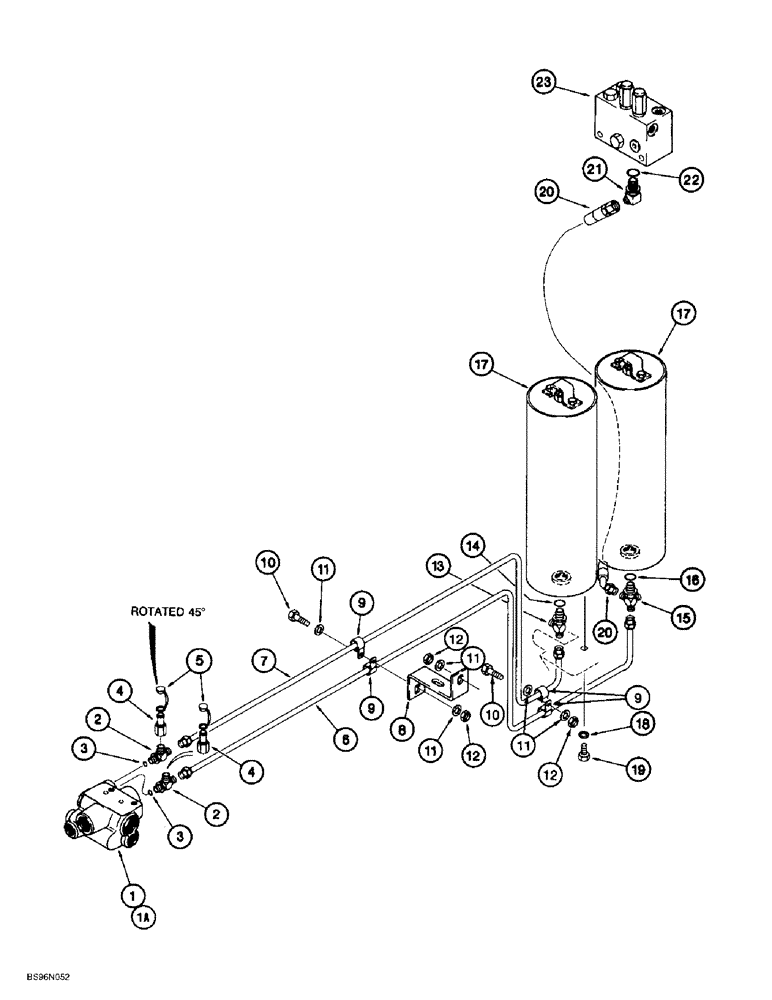

Запчасти Case 621B (7-10) - MAIN BRAKE HYD. CIRCUIT ACCUMU. VALVE TO PRESS. REDUC. VALVE PRESS. PORT, PRIOR TO P.I.N. JEE0051723 (07) - BRAKES

1

L128116

VALVE

ASSEMBLY accumulator, see Figure 7-20, see Figure 7-08 for mounting hardware, no longer available, order Ref. 1A 232531A1

1шт.

232531A1R

REMAN-HYD VALVE

621B (3/93 - 12/98), PRIOR TO P.I.N. JEE0051723, Reman for New P/N L128116

1шт.

232531A1C

CORE-VALVE HYD

Return Number

1шт.

1a

232531A1

VALVE

ASSEMBLY accumulator, see Figure 7-21A, see Figure 7-08 for mounting hardware

1шт.

232531A1R

REMAN-HYD VALVE

621B (3/93 - 12/98), PRIOR TO P.I.N. JEE0051723

1шт.

232531A1C

CORE-VALVE HYD

Return Number

1шт.

2

218-5581

TEE,9/16"-18, 37 Degree, 3/4"-16, O-Ring Run, 9/16"-18, 37 Degree

9/16-18 flare branch x flare x 3/4-16 inch adj O-ring, Includes: Ref. 3

2шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

4

101792A1

COUPLING

quick disconnect

2шт.

5

H434163

DUST CAP

2шт.

6

184257A1

TUBE,9.5 mm OD, 975, 380 mm Length

accumulator charge, valve lower port to front accumulator, replaces 107434A1 tube

1шт.

7

184256A1

TUBE,9.5 mm OD, 800, 389 mm Length

accumulator charge, valve upper port to rear accumulator, replaces 107432A1 tube

1шт.

8

107349A1

BRACKET

tube mounting

1шт.

9

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

Closed

2шт.

10

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

1шт.

11

496-21041

WASHER,13/32" x 13/16" x .089", HDN

3шт.

12

231-1446

NUT,3/8" - 16, Gr 5

2шт.

13

218-5581

TEE,9/16"-18, 37 Degree, 3/4"-16, O-Ring Run, 9/16"-18, 37 Degree

9/16-18 flare branch x flare x 3/4-16 inch adj O-ring, Includes: Ref. 14

1шт.

14

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

15

108750A1

FITTING

special, accumulator, Includes: Ref. 16

1шт.

16

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

17

1978111C1

TANK

ACCUMULATOR ASSEMBLY - hydraulic, see Figure 7-24, no longer available, order 128191A1

2шт.

17

128191A1

ACCUMULATOR,1.9L

ASSEMBLY hydraulic, see Figure 7-24

2шт.

18

80679

LOCK WASHER,1/20.507 CST ZND

6шт.

19

414-814

BOLT,Hex, 1/2" - 20 x 7/8", Gr 5

6шт.

20

110927A1

HOSE ASSY.

350 mm (13-3/4 inch) long, pressure reducing, Serial Range: valve-accumulator

1шт.

21

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

45 degree, 9/16-18 inch flare x adj O-ring boss, Includes: Ref. 22

1шт.

23

108525A3

VALVE

ASSEMBLY pressure reducing, see Figure 8-92

1шт.

22

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
