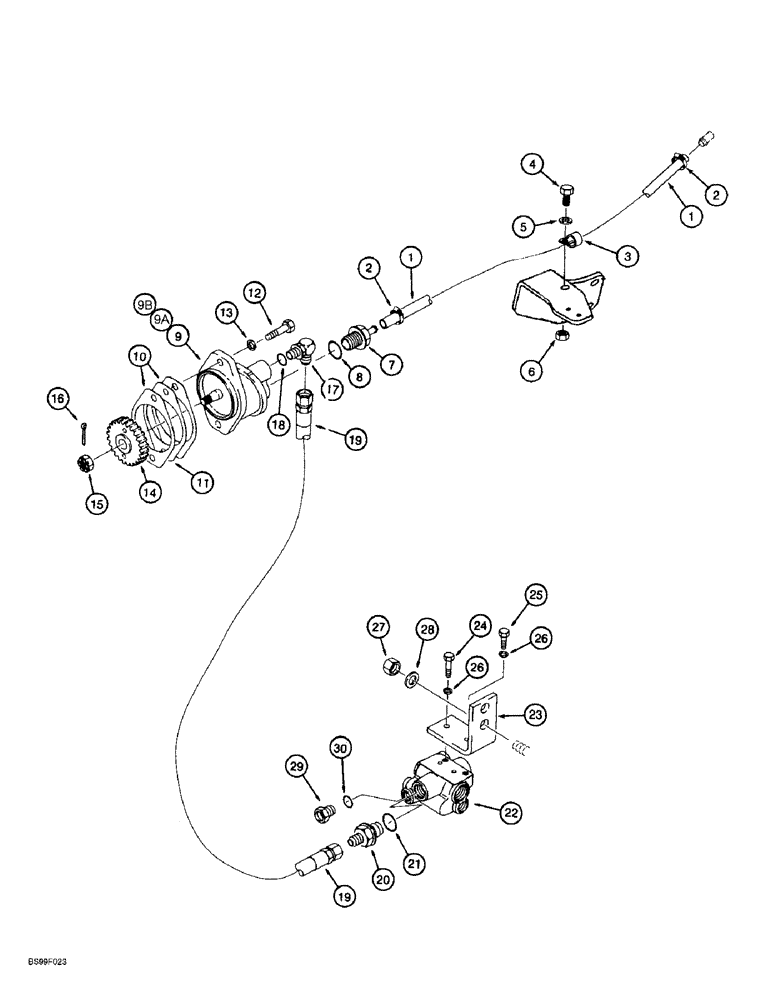

Запчасти Case 621B (7-09) - MAIN BRAKE HYDRAULIC CIRCUIT, RESERVOIR TO PUMP TO ACCUMULATOR VALVE, P.I.N. JEE0053350 AND AFTER (07) - BRAKES

1

247001A1

HOSE,19.05 mm ID x 870.00 mm

Cut from 31-3120 bulk hose shown below, Brake motor supply at reservoir

1шт.

2

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

Adj.

2шт.

3

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

P-type, Attaches to throttle bracket

1шт.

4

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

1шт.

5

496-21041

WASHER,13/32" x 13/16" x .089", HDN

1шт.

6

231-1446

NUT,3/8" - 16, Gr 5

1шт.

7

217-393

FITTING,3/4" Hose Barb x 1-5/16" - 12 Male ORB

ADAPTER straight, 3/4 stem end x 1-5/16-12 in adj O-ring boss, Includes: Ref. 8

1шт.

8

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Boss End

1шт.

9

S515954

PUMP, HYDRAULIC

ASSEMBLY brake, See Figure 7-22, Serial Range: -JEE0054469

1шт.

387411A2R

REMAN-HYD PUMP

621B Serial Range: -JEE0054469, P.I.N JEE0053350 AND AFTER (3/93-12/98), Reman for New P/N S515954

1шт.

387411A2C

CORE-HYDRAULIC PUMP

Return Number

1шт.

9a

284516A1

PUMP, HYDRAULIC

ASSEMBLY brake, production only, for service order 244573A1, See Figure 7-22, Start Serial: JEE0054469

1шт.

9b

244573A1

PUMP, HYDRAULIC

ASSEMBLY brake, See Figure 7-22 JEE0054469 to

1шт.

9b

87453065R

REMAN-HYD PUMP

621B CASE WHEEL LOADER (NORTH AMERICA), P.I.N. JEE0053350 AND AFTER, ASSEMBLY brake, JEE0054469 to (3/93-12/98), Reman for New PN 244573A1

1шт.

9b

87453065C

CORE-HYDRAULIC PUMP

Return Number

1шт.

10

J919601

GASKET

access cover plate

2шт.

11

J902603

SHIM,103.5mm ID x 120mm OD x 1.52mm Thk

SHIM pump mounting

1шт.

12

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

2шт.

13

892-11012

LOCK WASHER,M12

2шт.

14

J924186

GEAR

brake pump

1шт.

15

425-138

SLOTTED NUT,1/2"-20, G8

1шт.

16

432-616

COTTER PIN,3/32" x 1"

1шт.

17

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Includes Ref. 18

1шт.

18

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

19

107323A1

HOSE ASSY.

410 mm (16-1/8 in) Long, Pump To Accumulator Valve

1шт.

20

218-5070

HYD CONNECTOR,3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER straight, 3/4-16 flare x 1-1/16-12 in O-ring boss, Includes: Ref. 21

1шт.

21

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

22

232531A1

VALVE

ASSEMBLY accumulator, See Figure 7-21A

1шт.

232531A1R

REMAN-HYD VALVE

621B (3/93 - 12/98), P.I.N. JEE0053350

1шт.

232531A1C

CORE-VALVE HYD

Return Number

1шт.

23

L129987

BRACKET

mounting

1шт.

24

426-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

1шт.

25

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

1шт.

26

492-11038

LOCK WASHER,3/8"

2шт.

27

231-1448

NUT,1/2"-13, GB

NC

2шт.

28

496-41066

WASHER,5/8" ID x 1-1/2" OD x 3/16" Thk

2шт.

29

218-5314

ADAPTER,1/2" NPT Male x 1/2" Fem ORB

Straight, 3/4-16 O-ring boss x 9/16-18 in female O-ring boss, Includes: Ref. 30, See Figure 4-28, Ref. 10, for low pressure brake switch

1шт.

30

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

31-3120

HOSE,0.75" ID Bulk, SAE 100R3

Bulk, 19 (3/4) ID x 32 mm (1-1/4 in) OD

1шт.
