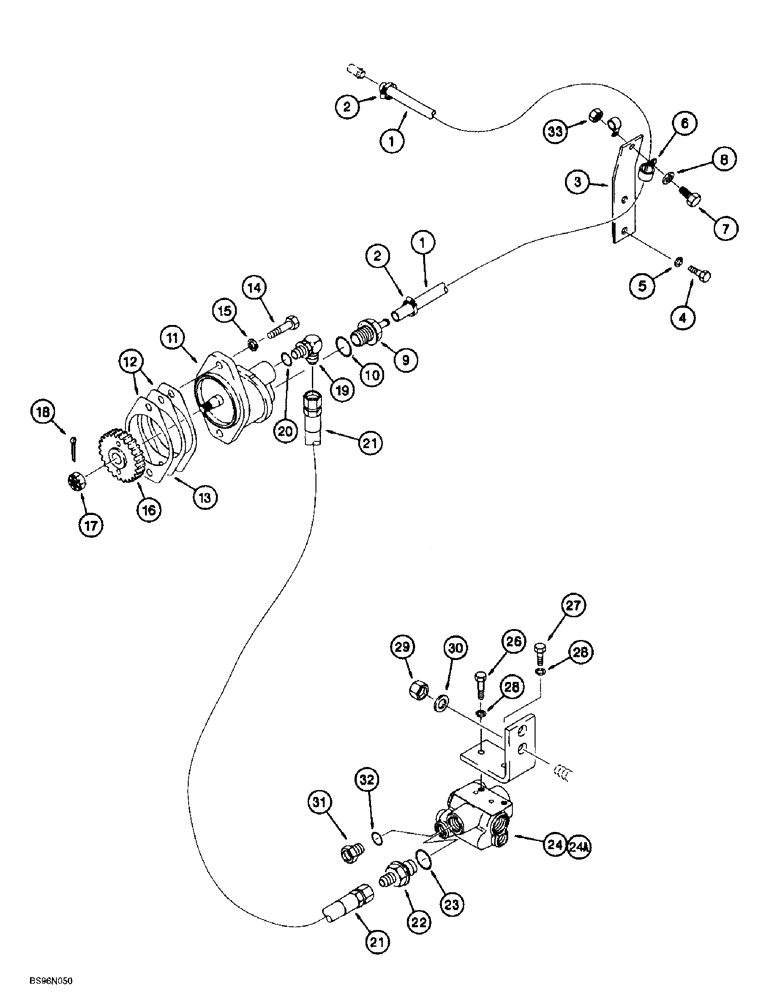

Запчасти Case 621B (7-08) - MAIN BRAKE HYDRAULIC CIRCUIT, RESERVOIR TO PUMP TO ACCUMULATOR VALVE, PRIOR TO P.I.N. JEE0053350 (07) - BRAKES

1

D136455

HOSE,19.05 mm ID x 1200.00 mm, SAE 100R3

Cut From S118382X Bulk Hose shown below, Brake Motor Supply At Reservoir

1шт.

2

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

Adj.

2шт.

3

107350A1

BRACKET

mounting

1шт.

4

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

2шт.

5

892-11012

LOCK WASHER,M12

2шт.

6

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

P-type

1шт.

7

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

1шт.

8

496-21041

WASHER,13/32" x 13/16" x .089", HDN

1шт.

9

217-177

FITTING,3/4" Hose Barb x 1-1/16" - 12 Male ORB

ADAPTER straight, 3/4 stem end x 1-1/16 in O-ring boss, Includes: Ref. 10

1шт.

10

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

Boss End

1шт.

11

S515954

PUMP, HYDRAULIC

ASSEMBLY, See Figure 7-22

1шт.

387411A2R

REMAN-HYD PUMP

621B PRIOR TO P.I.N. JEE0053350 (3/93-12/98), Reman for New P/N S515954

1шт.

387411A2C

CORE-HYDRAULIC PUMP

Return Number

1шт.

12

J931608

GASKET

Access Cover Plate, Replaces J919601

2шт.

13

J902603

SHIM,103.5mm ID x 120mm OD x 1.52mm Thk

Shim, pump mounting

1шт.

14

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

2шт.

15

892-11012

LOCK WASHER,M12

2шт.

16

J924186

GEAR

brake pump, replaces J905606 gear

1шт.

17

425-138

SLOTTED NUT,1/2"-20, G8

1шт.

18

432-616

COTTER PIN,3/32" x 1"

1шт.

19

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Includes Ref. 20

1шт.

20

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

21

107323A1

HOSE ASSY.

410 mm (16-1/8 in) Long, Pump To Accumulator Valve

1шт.

22

218-5070

HYD CONNECTOR,3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER straight,3/4-16 flare x 1-1/16 in O-ring boss, Includes: Ref. 23

1шт.

23

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

24

L128116

VALVE

ASSEMBLY accumulator, See Figure 7-20, No Longer Available, Order Ref. 24A 232531A1

1шт.

232531A1R

REMAN-HYD VALVE

621B (3/93 - 12/98), Prior To P.I.N. JEE0053359, Reman for New P/N L128116

1шт.

232531A1C

CORE-VALVE HYD

Return Number

1шт.

24a

232531A1

VALVE

ASSEMBLY accumulator, See Figure 7-21A

1шт.

232531A1R

REMAN-HYD VALVE

621B (3/93 - 12/98), Prior To P.I.N. JEE0053359

1шт.

232531A1C

CORE-VALVE HYD

Return Number

1шт.

25

L129987

BRACKET

mounting

1шт.

26

426-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

1шт.

27

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

2шт.

28

492-11038

LOCK WASHER,3/8"

2шт.

29

231-1448

NUT,1/2"-13, GB

NC

2шт.

30

496-41066

WASHER,5/8" ID x 1-1/2" OD x 3/16" Thk

2шт.

31

218-5314

ADAPTER,1/2" NPT Male x 1/2" Fem ORB

Straight, 3/4-16 O-ring boss x 9/16-18 inch female O-ring boss, Includes: Ref. 32, See Figure 4-28, Ref 10, for low pressure brake switch

1шт.

32

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

33

231-1446

NUT,3/8" - 16, Gr 5

2шт.

S118382X

LARGE HOSE

HOSE,LARGE Bulk, 19 (3/4) x 32 (1-1/4) x 6096 mm (240 in) Long, Sold By the Foot, Replaces S118382

1шт.
