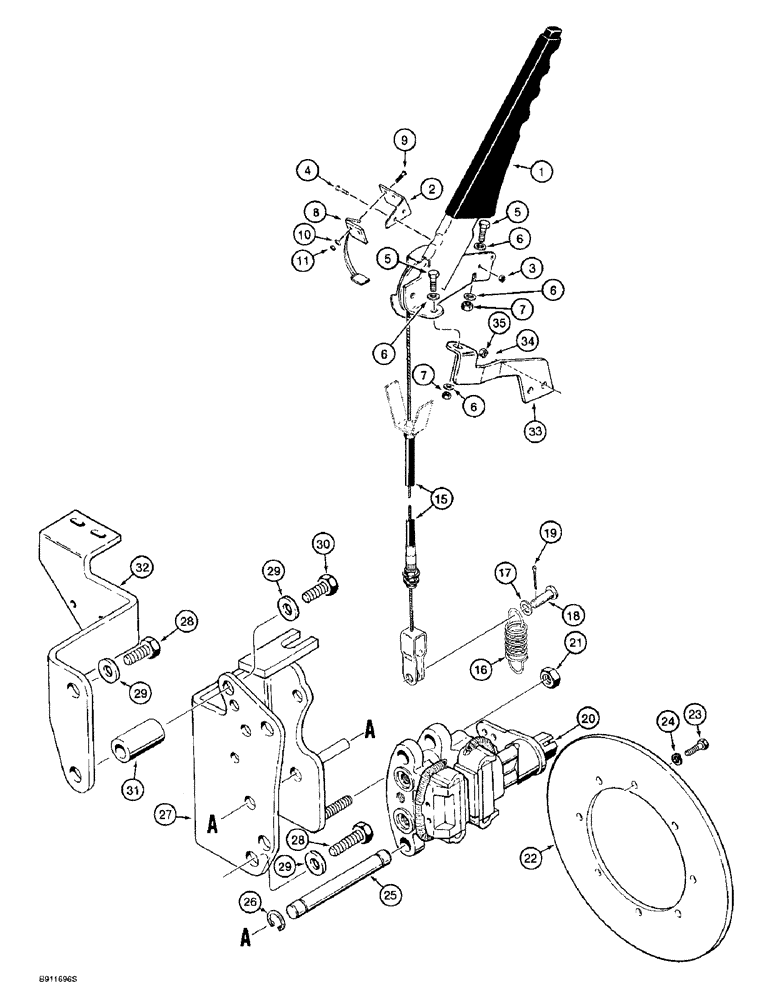

Запчасти Case 621B (7-04) - PARKING BRAKE CONTROLS AND MOUNTING (07) - BRAKES

1

103795A1

LEVER ASSY.

actuator, parking brake, replaces 1999673C1 lever

1шт.

2

1339961C1

SUPPORT

BRACKET mounting, parking brake lever and parking brake switch

1шт.

3

225-14108

NUT,#8-32

2шт.

4

470-1088

SCREW,Slotted Pan Hd, #8-32 x 1/2"

No. 8 NC x 1/2 inch

2шт.

5

426-416

BOLT,Hex, 1/4" - 20 x 1", Gr 8

2шт.

6

495-21031

WASHER,1/4"

5/16 x 3/4 x 1/16 inch

4шт.

7

231-1444

NUT,1/4"-20, GB

2шт.

8

1343288C2

LIMIT SWITCH

parking brake, replaces 1343288C1 switch

1шт.

9

140-103

SCREW,Cross Pan Hd, #6 - 32 x 3/4"

2шт.

10

495-31016

WASHER,#6

2шт.

11

230-42406

LOCK NUT,#6-32, GA

No. 6 NC

2шт.

15

L129816

CABLE,1323.09mm L

brake, parking, Serial Range: brake-lever

1шт.

16

L129805

SPRING

parking brake

1шт.

17

495-21044

WASHER,3/8"

(7/16 x 1 x 5/64 inch)

1шт.

18

427-6088

CLEVIS PIN,3/8" x 3/4"

clevis, 3/8 x 7/8 inch, hardened, cable to brake

1шт.

19

432-612

COTTER PIN,3/32" x 3/4"

1шт.

20

L129717

BRAKE, PARKING

PARKING BRAKE ASSEMBLY, See Figure 7-02

1шт.

21

231-1446

NUT,3/8" - 16, Gr 5

1шт.

22

L129904

BRAKE DISC

DISC, BRAKE parking

1шт.

23

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

8шт.

24

892-11010

LOCK WASHER,M10

8шт.

25

L130034

ROD,15.9mm OD x 166mm L

mounting, Serial Range: brake-bracket

2шт.

26

100-3362

SNAP RING,#62, .480" Dia, E-Type

4шт.

27

L130037

BRACKET

mounting

1шт.

28

627-20045

BOLT,Hex, M20 x 2.5 x 45mm, Cl 10.9, Full Thd

20-2.5 x 45 mm, class 10.9

2шт.

29

496-11081

WASHER,13/16" x 1 1/2" x .134", HDN

3шт.

30

827-20090

BOLT,Hex, M20 x 2.5 x 90mm, Cl 10.9

1шт.

31

L129942

SPACER

bracket to bracket support

1шт.

32

L303073

BRACKET

SUPPORT parking brake

1шт.

33

1999796C1

SUPPORT

BRACKET mounting, parking brake lever

1шт.

34

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

2шт.

35

231-1445

NUT,5/16"-18, GB

2шт.
