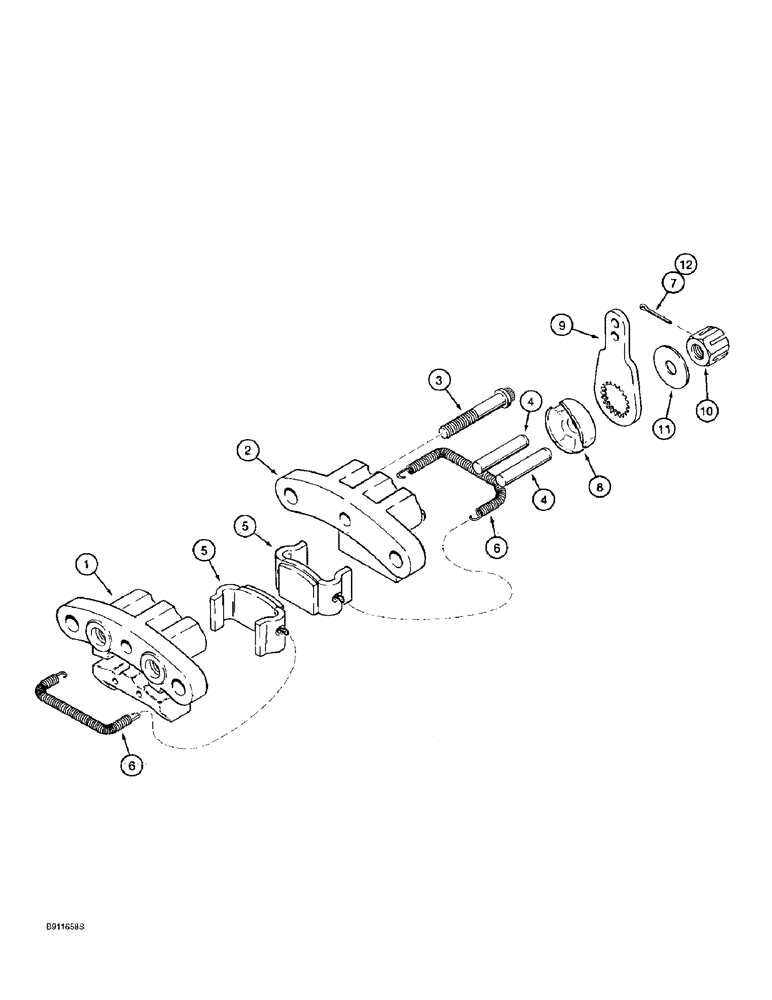

Запчасти Case 621B (7-02) - PARKING BRAKE ASSEMBLY (07) - BRAKES

L129717

BRAKE, PARKING

PARKING BRAKE ASSEMBLY, Includes: Ref. 1 - 8, 10 - 12, See Figure 7-04 for mounting

1шт.

1

NSS

NOT SOLD SEPARAT

Carrier, parking brake, transmission side

1шт.

2

NSS

NOT SOLD SEPARAT

Carrier, parking brake, cam and lever side

1шт.

3

NSS

NOT SOLD SEPARAT

Bolt, 12 point, special

3шт.

4

2-3195T1

PIN

special, replaces 101981A1 pin

2шт.

90-7287T91

KIT

pad, service, Includes: Ref. 5 - 7, replaces 101987A1 kit

1шт.

S113625

BRAKE, PARKING

PARKING BRAKE Lining Assy, Includes: Ref. 5, 6, replaces 101975A1 lining assembly

2шт.

5

NSS

NOT SOLD SEPARAT

Pad, brake lining, includes holder

1шт.

6

S107628

SPRING

brake pad, replaces 101976A1 spring

1шт.

7

90-7296T1

PIN, SPLIT (COTTER)

PIN, COTTER special, replaces 101985A1 pin

1шт.

101988A1

KIT

cam and lever, Includes: Ref. 8 - 12

1шт.

8

90-7292T1

CAM

parking brake, replaces 101982A1 cam

1шт.

9

101983A1

LEVER

NLS, brake actuator

1шт.

90-7295T91

SET

KIT lever hardware, Includes: Ref. 10 - 12, replaces 101992A1 kit

1шт.

101986A1

SLOTTED NUT

WASHER special, Includes: Ref. 10, 11

1шт.

10

NSS

NOT SOLD SEPARAT

Nut, castle

1шт.

11

101984A1

WASHER

flat

1шт.

12

90-7296T1

PIN, SPLIT (COTTER)

PIN, COTTER special, replaces 101985A1 pin

1шт.
