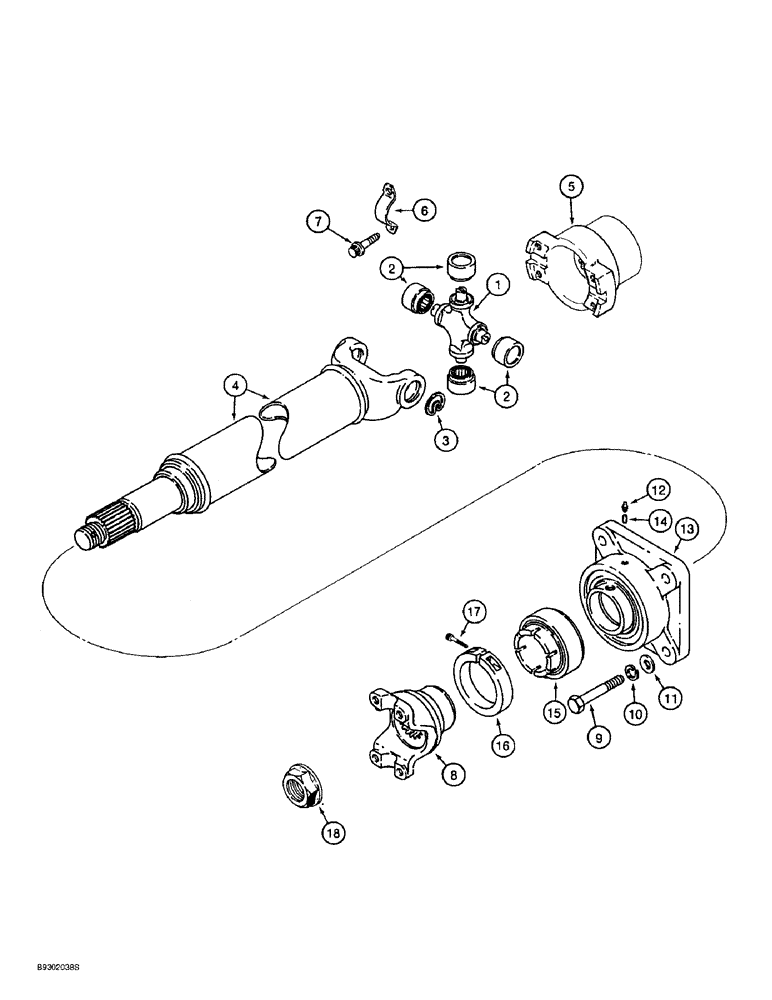

Запчасти Case 621B (6-56) - FRONT DRIVE SHAFT AND SUPPORT BEARING (06) - POWER TRAIN

103708A1

DRIVE SHAFT

ASSEMBLY drive, front axle, Includes: Ref. 1 - 4

1шт.

S300313

SPIDER ASSY.,35.1mm Cap Dia, 126mm L

shaft, Includes: Ref. 1 - 3, front drive

1шт.

1

NSS

NOT SOLD SEPARAT

Journal, universal joint, front drive shaft

1шт.

2

NSS

NOT SOLD SEPARAT

Race, bearing, front drive shaft

4шт.

3

S92378

RING, SNAP

RING SNAP universal joint, front drive shaft

4шт.

4

NSS

NOT SOLD SEPARAT

Yoke and Tube, drive shaft, axle end, front

1шт.

5

REF

INSTRUCTION

Flange, companion, drive shaft to front axle, see Ref. 14, Figure 6-42

1шт.

6

L116943

SECURING STRAP

Retainer, drive shaft, bearing to flange, front

2шт.

7

L116940

12 PT SCREW,Flg, 3/8" - 24 x 3/4", Gr 8

Bearing strap, Front drive shaft

4шт.

8

L116944

YOKE

drive shaft to center bearing, bearing straps and bolts are shown on Figure 6-58, Ref.10 and 11, front

1шт.

9

426-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

Drive shaft support bearing

4шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

Drive shaft support bearing

4шт.

11

187563A1

SPACER

13 x 25 x 28 mm, drive shaft support bearing

4шт.

L47724

HOUSING, BEARING,2" ID x 4.5625" OD x 2.21875"

ASSEMBLY front drive shaft support, Includes: Ref. 12 - 17

1шт.

12

219-1

LUBE NIPPLE,1/8" - 27 NPTF

Drive shaft support bearing

1шт.

13

NSS

NOT SOLD SEPARAT

Housing, bearing, drive shaft support

1шт.

14

L33788

AXLE PIN

lock, 1/4 inch diameter, drive shaft support bearing

1шт.

L33787

KIT

repair, bearing and collar, Includes: Ref. 15 - 17, drive shaft support

1шт.

15

NSS

NOT SOLD SEPARAT

Bearing and Seal, center bearing, drive shaft support

1шт.

16

L33789

COLLAR

bearing, drive shaft support

1шт.

17

61-32516

HEX SOC SCREW,1/4"-20 x 1"

Drive shaft support bearing

1шт.

18

L35091

NUT

hex, special, drive shaft support bearing

1шт.
