107931A1
REAR AXLE
ASSEMBLY, ZF No. 4474 004 157, Includes: Ref. 1 - 13 on this figure and parts on Figures 6-46 - 6-52, Serial Range: -JEE0051302
1шт.
231365A1
REAR AXLE
ASSEMBLY, ZF No. 4474 004 188, Includes: Ref. 1 - 14 on this figure and parts on Figures 6-46 - 6-52, Start Serial: JEE0051302
1шт.

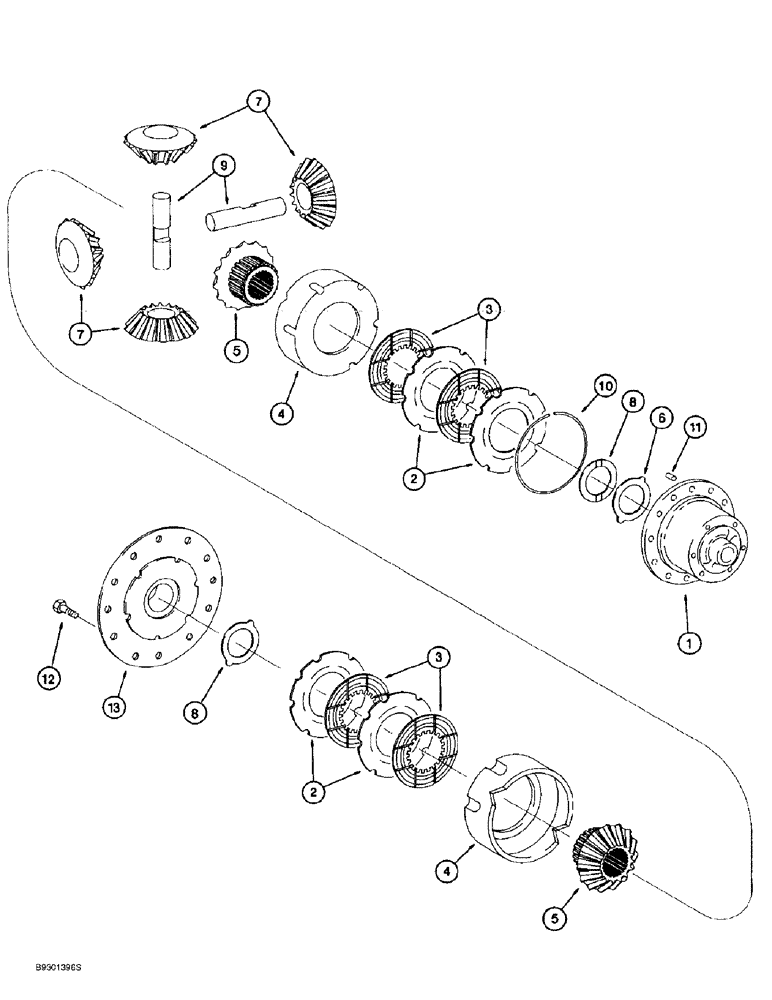

121455A1
DIFFERENTIAL
ASSEMBLY rear axle, Includes: Ref. 1 - 14 in this figure and parts on Figure 6-52
1шт.
121354A1
VALVE BODY
DIFFERENTIAL ASSEMBLY limited slip, rear axle, used with 107931A1 axle assembly, Includes: Ref. 1 - 13
1шт.
177713A1
BODY
DIFFERENTIAL ASSEMBLY limited slip, rear axle, used with 231365A1 axle assembly, Includes: Ref. 1 - 14
1шт.
1
121393A1
HOUSING
differential, used with 107931A1 axle assembly
1шт.
1
177714A1
HOUSING
differential, used with 231365A1 axle assembly
1шт.
2
230548A1
THRUST WASHER
WASHER thrust, replaces 119332A1 disc
4шт.
2
230549A1
DISC
2.4 mm, replaces 119333A1 disc
1шт.
2
230550A1
DISC
2.3 mm, replaces 119334A1 disc
1шт.
2
230551A1
DISC
2.5 mm, replaces 119335A1 disc
1шт.
3
177732A1
DISC
replaces 119336A1 disc
4шт.
4
119337A1
RING, SNAP
RING SNAP pressure
2шт.
5
121395A1
PINION
GEAR, 16 teeth, side, used with 107931A1 axle assembly
2шт.
5
121395A1
PINION
GEAR, 16 teeth, side, used with 231365A1 axle assembly
2шт.
6
119331A1
THRUST WASHER
thrust, outer, used with 107931A1 axle assembly
1шт.
6
177717A1
THRUST WASHER
thrust, outer, used with 231365A1 axle assembly
1шт.
7
119340A1
PINION
Gear, 11 teeth
4шт.
8
119330A1
THRUST WASHER
thrust, inner
2шт.
9
119338A1
SHAFT
pinion
2шт.
10
119329A1
RING, SNAP
RING SNAP retaining
1шт.
11
119341A1
PIN
Drive
12шт.
12
121398A1
SCREW
hex, self-locking, special, housing cover
12шт.
13
121396A1
COVER
housing
1шт.
13
177734A1
COVER
housing, used with 231365A1 axle assembly
1шт.
14
177715A1
SEAL
housing, used with 231365A1 axle assembly, not shown
6шт.
