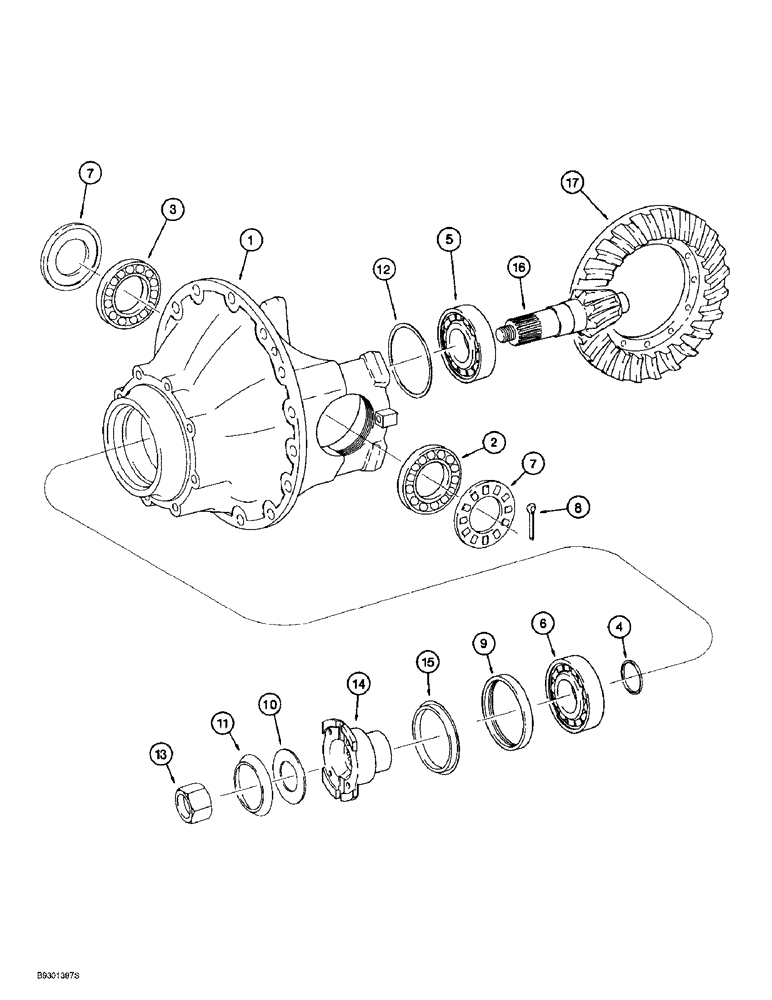

Запчасти Case 621B (6-52) - REAR AXLE DIFFERENTIAL CARRIER (06) - POWER TRAIN

107931A1

REAR AXLE

ASSEMBLY, ZF No. 4474 004 157, Includes: Ref. 1 - 17 on this figure and parts on Figures 6-46, 6-48 and 6-54, Serial Range: -JEE0051302

1шт.

231365A1

REAR AXLE

ASSEMBLY, ZF No. 4474 004 188, Includes: Ref. 1 - 17 on this figure and parts on Figures 6-46, 6-48 and 6-54, Start Serial: JEE0051302

1шт.

121455A1

DIFFERENTIAL

ASSEMBLY rear axle, Includes: Ref. 1 - 17 on this figure and limited slip differential parts on Figure 6-54

1шт.

1

121323A1

HOUSING

carrier

1шт.

2

654422C1

BEARING ASSY,65 mm ID x 105 mm OD x 24.05 mm

ASSEMBLY cup and cone, tapered roller, right-hand, replaces 121340A1 bearing

1шт.

3

100188A1

ROLLER BEARING,65mm ID x 110mm OD x 28mm

tapered roller, includes cup, left-hand

1шт.

4

119296A1

BLOCK

SPACER, 8.8 mm

1шт.

4

898117H1

RING, SNAP

RING SNAP SPACER, 8.7 mm

1шт.

4

898456H1

RING, SNAP

RING SNAP SPACER, 8.6 mm

1шт.

4

898451H1

SNAP RING

SPACER, 8.5 mm

1шт.

4

898446H1

RING, SNAP

RING SNAP SPACER, 8.4 mm

1шт.

4

119296A1

BLOCK

SPACER, 8.8 mm, replaces 898441H1 spacer

1шт.

4

119301A1

BLOCK

SPACER, 8.9 mm

1шт.

4

119305A1

BLOCK

SPACER, 9.1 mm

1шт.

4

119309A1

BLOCK

SPACER, 9.2 mm

1шт.

4

119310A1

BLOCK

SPACER, 9.3 mm

1шт.

4

119311A1

BLOCK

SPACER, 9.4 mm

1шт.

5

121324A1

ROLLER BEARING

tapered roller, front

1шт.

6

121325A1

ROLLER BEARING

tapered roller, rear

1шт.

7

121343A1

NUT

adjusting

2шт.

8

119318A1

SPLIT PIN/SAFETY PIN

PIN cotter

2шт.

9

119315A1

SEAL

shaft

1шт.

10

119316A1

WASHER

flat

1шт.

11

119323A1

WASHER

thrust

1шт.

12

121328A1

WASHER

SHIM, 0.7 mm

1шт.

12

121329A1

WASHER

SHIM, 0.8 mm

1шт.

12

121331A1

WASHER

SHIM, 0.9 mm

1шт.

12

121334A1

WASHER

SHIM, 1.0 mm

1шт.

12

3217664R1

SHIM

1.2 mm

1шт.

12

3217663R1

DISC

SHIM, 1.3 mm

1шт.

12

3217662R1

DISC

SHIM, 1.4 mm

1шт.

12

3217661R1

SHIM

1.5 mm

1шт.

12

3217660R1

SHIM

1.6 mm

1шт.

12

3217659R1

SHIM

1.7 mm

1шт.

12

3217658R1

SHIM

1.8 mm

1шт.

12

3217657R1

SHIM

1.9 mm

1шт.

12

3217656R1

SHIM

2.0 mm

1шт.

12

121342A1

WASHER

SHIM, 1.1 mm

1шт.

13

121345A1

NUT

hex, slotted, pinion

1шт.

14

121346A1

COUPLING FLANGE

input

1шт.

15

119322A1

PROTECTOR

SPACER flange

1шт.

121353A1

GEAR SET

PINION ASSEMBLY differential, Includes: Ref. 16 and 17

1шт.

16

NSS

NOT SOLD SEPARAT

Shaft, pinion, differential

1шт.

17

NSS

NOT SOLD SEPARAT

Gear, ring, differential

1шт.
