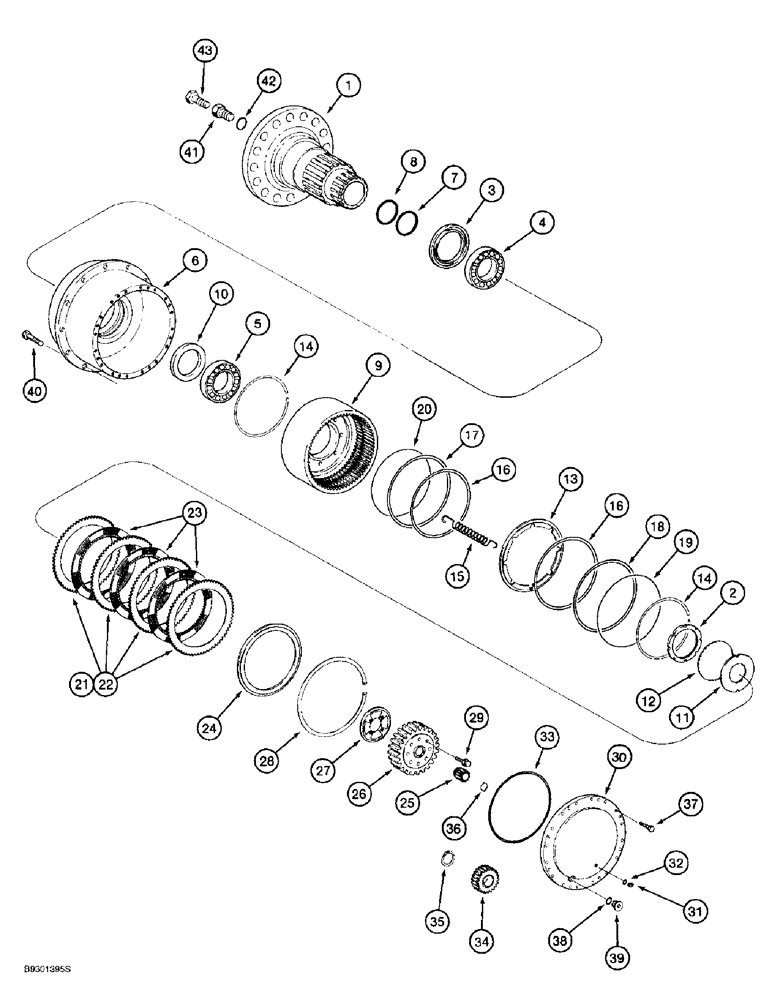

Запчасти Case 621B (6-48) - REAR AXLE HUB, DISC BRAKES AND PLANETARY (06) - POWER TRAIN

107931A1

REAR AXLE

ASSEMBLY, ZF No. 4474 004 157, Includes: Ref. 1, 2, 4 - 43 on this figure and parts on Figures 6-46, 6-52 and 6-54, Serial Range: -JEE0051302

1шт.

231365A1

REAR AXLE

ASSEMBLY, ZF No. 4474 004 188, Includes: Ref. 1 - 43 on this figure and parts on Figures 6-46, 6-52 and 6-54, Start Serial: JEE0051302

1шт.

119530A1

HUB

Spindle Assembly, axle, threaded, used with 107931A1 axle, Includes: Ref. 1 and 2

2шт.

308500A1

SPINDLE

ASSEMBLY axle, used with 231365A1 axle, Includes: Ref. 1 and 2

1шт.

1

NSS

NOT SOLD SEPARAT

Spindle, axle

1шт.

2

119386A1

SLOTTED NUT

slotted

1шт.

3

1964236C1

SEAL,136.8mm ID x 141.3mm OD x 13mm Thk

shaft, used with 231365A1 axle assembly

2шт.

4

119390A1

ROLLER BEARING,105mm ID x 160mm OD x 35mm W

inner

2шт.

5

119388A1

ROLLER BEARING,130mm ID x 230mm OD x 43.75mm W

outer

2шт.

6

124229A1

HUB

wheel

2шт.

7

119392A1

O-RING,94.4mm ID x 3.1mm Width

spindle, outer

2шт.

8

119393A1

O-RING,100mm ID x 4mm Width

spindle, inner

4шт.

9

119394A1

CYLINDER END CAP

GEAR ring, planetary

2шт.

10

119401A1

WASHER

RING, 4.70 mm thick

1шт.

10

119402A1

WASHER

RING, 5.00 mm thick

1шт.

10

119403A1

WASHER

RING, 5.30 mm thick

1шт.

10

119404A1

WASHER

RING, 5.35 mm thick

1шт.

10

119405A1

WASHER

RING, 5.40 mm thick

1шт.

10

119406A1

WASHER

RING, 5.45 mm thick

1шт.

10

119407A1

WASHER

RING, 5.50 mm thick

1шт.

10

119408A1

WASHER

RING, 5.55 mm thick

1шт.

10

119410A1

WASHER

RING, 5.60 mm thick

1шт.

10

119412A1

WASHER

RING, 5.65 mm thick

1шт.

10

119413A1

WASHER

RING, 5.70 mm thick

1шт.

10

119414A1

WASHER

RING, 5.75 mm thick

1шт.

10

119415A1

WASHER

RING, 5.80 mm thick

1шт.

10

119416A1

WASHER

RING, 5.85 mm thick

1шт.

10

119417A1

WASHER

RING, 6.06 mm thick

1шт.

11

119418A1

THRUST WASHER

PLATE thrust

2шт.

12

242216A1

WASHER

tab, replaces 119419A1 washer

1шт.

13

119421A1

PISTON

hub

2шт.

14

119422A1

CIRCLIP

retaining

4шт.

15

123735A1

TENSION SPRING

16шт.

16

119425A1

WIPER SEAL

U-ring, 247.5 mm O.D., 240.9 mm I.D.

4шт.

It is correct to use this part with both 119426A1 and 119427A1 back up rings. They advise that due to the elasticity of the seal ring, it can be used for both diameters of the piston groove.

1шт.

17

119426A1

BACK-UP RING

backup, inner, 247.6 mm O.D., 241 mm I.D.

2шт.

18

119427A1

BACK-UP RING

backup, outer, 260.1 mm O.D., 253.5 mm I.D.

2шт.

19

119428A1

GUIDE RING

piston, outer

2шт.

20

119429A1

GUIDE RING

piston, inner

2шт.

21

119430A1

NOTCHED DISK

outer clutch, 4.5 mm

6шт.

119431A1 has replaced the 119430A1. When ordering, just order the wavy disc.

1шт.

22

119431A1

NOTCHED DISK

wavy, 4.0 mm

4шт.

22

119430A1

NOTCHED DISK

outer clutch, 4.5 mm

4шт.

23

119433A1

DISC

flat, inner clutch

6шт.

24

119434A1

BLOCK

SHIM end

2шт.

25

124194A1

SHAFT

sun gear, 32 teeth

2шт.

26

124196A1

CYLINDER END CAP

CARRIER disc, no longer available, order 281725A1 carrier and 242222A1 plate

2шт.

26a

281725A1

GEAR

CARRIER disc, if used, does not require Ref. 28 and 29, illustration not available

2шт.

27

119437A1

RING, SNAP

RING SNAP PLATE carrier, used with 123196A1 carrier

2шт.

27a

242222A1

RING

PLATE carrier, if used, does not require Ref. 28 and 29, used with Ref. 26A carrier, illustration not available

2шт.

28

119438A1

CIRCLIP

used with 281725A1 carrier and 242222A1 plate, Ref. 26 and 27

2шт.

29

626-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

8шт.

30

124198A1

CYLINDER END CAP

CARRIER planetary

3шт.

31

119559A1

PLUG

16 x 1.5 mm

2шт.

32

123549A1

O-RING,2mm Thk x 12mm ID, 70 Duro

plug

2шт.

33

119443A1

O-RING,312mm ID x 2.5mm Width

SEAL carrier

2шт.

34

123775A1

PINION

GEAR pinion, planetary

6шт.

35

A52147

RING

retaining

8шт.

36

119453A1

THRUST WASHER

thrust, 5.0 mm

1шт.

36

119456A1

THRUST WASHER

thrust, 6.0 mm

1шт.

36

119459A1

THRUST WASHER

thrust, 6.3 mm

1шт.

36

119461A1

THRUST WASHER

thrust, 6.5 mm

1шт.

36

119463A1

THRUST WASHER

thrust, 3.3 mm

1шт.

36

119464A1

THRUST WASHER

thrust, 2.9 mm

1шт.

36

119465A1

THRUST WASHER

thrust, 3.5 mm

1шт.

36

119467A1

THRUST WASHER

thrust, 3.7 mm

1шт.

36

119468A1

THRUST WASHER

thrust, 3.9 mm

1шт.

36

119470A1

THRUST WASHER

thrust, 4.1 mm

1шт.

37

A52314

BOLT

14 x 40 mm, class 10.9

48шт.

38

A52096

O-RING,2.5mm Thk x 38mm ID

plug

2шт.

39

119471A1

PLUG

hex

2шт.

40

123776A1

WHEEL BOLT

wheel

24шт.

41

123622A1

ADAPTER

bolt

2шт.

42

123549A1

O-RING,2mm Thk x 12mm ID, 70 Duro

adapter

2шт.

43

3222214R1

VALVE

bleeder

2шт.
