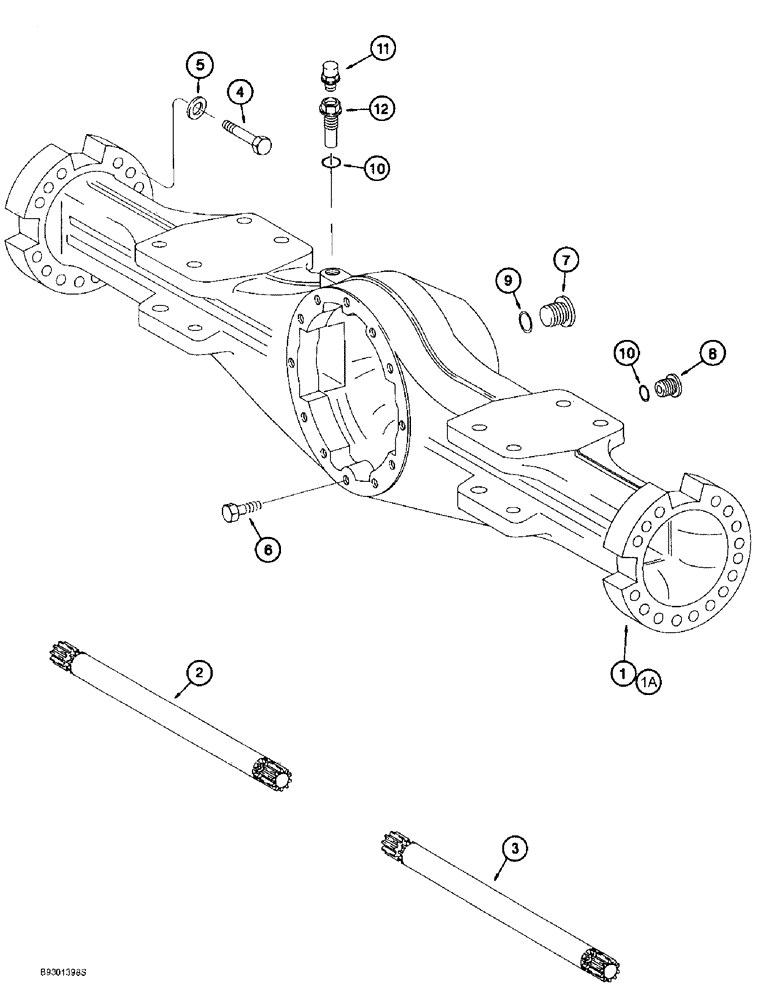

Запчасти Case 621B (6-46) - REAR AXLE HOUSING (06) - POWER TRAIN

107931A1

REAR AXLE

ASSY., ZF No. 4474 004 157, Includes: Ref. 1-12 on this figure and parts on Figures 6-48 - 6-54, Serial Range: -JEE0051302

1шт.

231365A1

REAR AXLE

ASSY., ZF No. 4474 004 188, Includes: Ref. 1A - 13 on this figure and parts on Figures 6-48 - 6-54, Start Serial: JEE0051302

1шт.

1

121399A1

HOUSING

axle, used with 107931A1

1шт.

1a

308828A1

HOUSING

axle, used with 231365A1, Not Illustrated

1шт.

2

121400A1

SHAFT

axle, 1006 mm long

1шт.

3

121401A1

SHAFT

axle, 980 mm long

1шт.

4

119379A1

SCREW

Used With 107931A1, 20-2.5 x 85 mm, class 10.9

32шт.

4

308829A1

BOLT,Hex, M20 x 1.5 x 75mm, Grade 10.9

Used With 231365A1, 20-1.5 x 75 mm, class 10.9

32шт.

When 308829A1 bolts are installed, the bolt head must be to the wheel side of the flange.

1шт.

5

119381A1

BEARING WASHER

bearing cap

32шт.

6

A52094

FLANGE BOLT

hex flange, special, differential to axle housing

8шт.

6

3404789R1

SCREW

hex flange, special, differential to axle housing

4шт.

7

A48791

PLUG

hex socket, 42 mm thread

1шт.

8

119349A1

PLUG

axle housing, special

1шт.

9

A52096

O-RING,2.5mm Thk x 38mm ID

plug, large replaces A52372 O-ring

1шт.

10

A52097

O-RING,2mm Thk x 21mm ID

plug, small

2шт.

11

A48855

VALVE

breather, special

1шт.

12

8603256

PLUG

axle housing

1шт.

13

193152A1

BOLT

Used With 231365A1, Not Illustrated

6шт.
