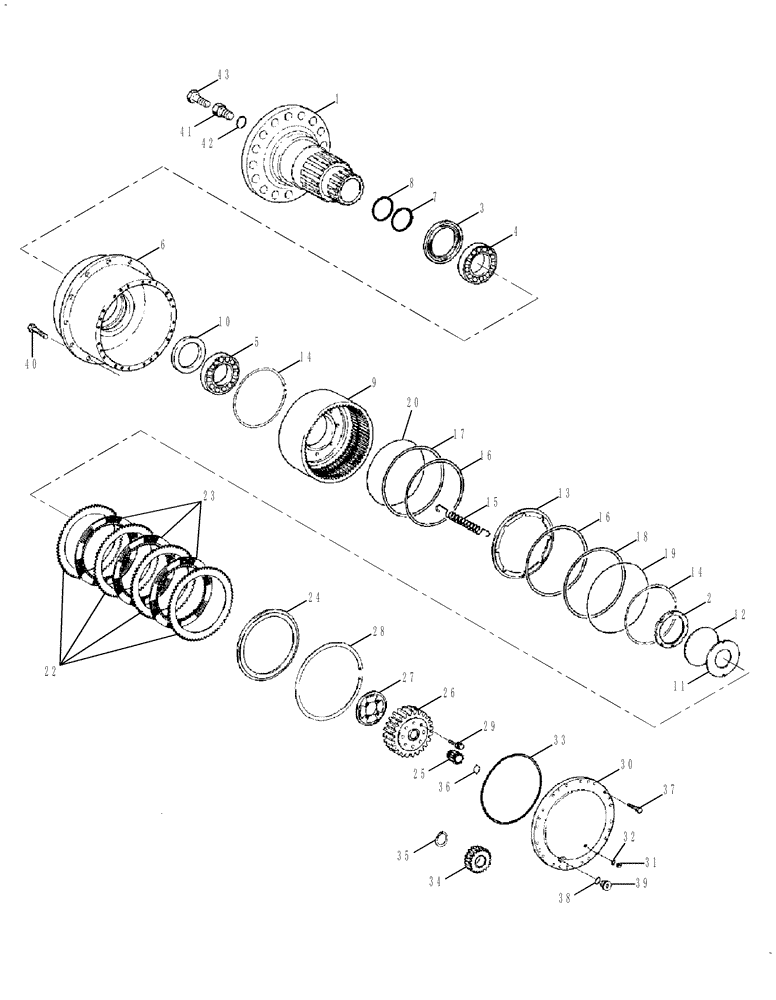

Запчасти Case 621B (6-38) - FRONT AXLE HUB, DISC BRAKES AND PLANETARY (06) - POWER TRAIN

107930A1

4WD AXLE ASSY

ZF No. 4474 004 156, Front, Includes: Ref. 1 - 43 in this figure and parts on Figures 6-36, 6-42 and 6-44, Serial Range: -JEE0051302

1шт.

231364A1

4WD AXLE ASSY

ZF No. 4474 004 187, Front, Includes: Ref. 1 - 43 in this figure and parts on Figures 6-36, 6-42 and 6-44, Start Serial: JEE0051302

1шт.

119530A1

HUB

SPINDLE axle, used with 107930A1 axle, Includes: Ref. 1, 2

2шт.

308500A1

SPINDLE

ASSY. axle, used with 231364A1 axle, Includes: Ref. 1, 2

2шт.

1

NSS

NOT SOLD SEPARAT

Spindle, axle, threaded

1шт.

2

119386A1

SLOTTED NUT

slotted

1шт.

3

1964236C1

SEAL,136.8mm ID x 141.3mm OD x 13mm Thk

shaft

2шт.

4

119390A1

ROLLER BEARING,105mm ID x 160mm OD x 35mm W

tapered roller, inner

2шт.

5

119388A1

ROLLER BEARING,130mm ID x 230mm OD x 43.75mm W

tapered roller, outer

2шт.

6

124229A1

HUB

wheel

2шт.

7

119392A1

O-RING,94.4mm ID x 3.1mm Width

spindle, outer

2шт.

8

119393A1

O-RING,100mm ID x 4mm Width

spindle, inner

4шт.

9

119394A1

CYLINDER END CAP

GEAR - ring, planetary

2шт.

10

119401A1

WASHER

RING - 4.70 mm thick

1шт.

10

119402A1

WASHER

RING - 5.00 mm thick

1шт.

10

119403A1

WASHER

RING - 5.30 mm thick

1шт.

10

119404A1

WASHER

RING - 5.35 mm thick

1шт.

10

119405A1

WASHER

RING - 5.40 mm thick

1шт.

10

119406A1

WASHER

RING - 5.45 mm thick

1шт.

10

119407A1

WASHER

RING - 5.50 mm thick

1шт.

10

119408A1

WASHER

RING - 5.55 mm thick

1шт.

10

119410A1

WASHER

RING - 5.60 mm thick

1шт.

10

119412A1

WASHER

RING - 5.65 mm thick

1шт.

10

119413A1

WASHER

RING - 5.70 mm thick

1шт.

10

119414A1

WASHER

RING - 5.75 mm thick

1шт.

10

119415A1

WASHER

RING - 5.80 mm thick

1шт.

10

119416A1

WASHER

RING - 5.85 mm thick

1шт.

10

119417A1

WASHER

RING - 6.06 mm thick

1шт.

11

119418A1

THRUST WASHER

PLATE - thrust

2шт.

12

242216A1

WASHER

tab, replaces 119419A1 washer

1шт.

13

119421A1

PISTON

hub

2шт.

14

119422A1

CIRCLIP

retaining

4шт.

15

123735A1

TENSION SPRING

16шт.

16

119425A1

WIPER SEAL

O-ring, 247.5 mm O.D., 240.9 mm I.D.

4шт.

It is correct to use this part with both 119426A1 and 119427A1 back up rings. They advise that due to the elasticity of the seal ring, it can be used for both diameters of the piston groove.

1шт.

17

119426A1

BACK-UP RING

backup, inner, 247.6 mm O.D., 241 mm I.D.

2шт.

18

119427A1

BACK-UP RING

backup, outer, 260.1 mm O.D., 253.5 mm I.D.

2шт.

19

119428A1

GUIDE RING

piston, outer

2шт.

20

119429A1

GUIDE RING

piston, inner

2шт.

22

119431A1

NOTCHED DISK

wavy, 4.0 mm, Replaces 119430A1

8шт.

23

119433A1

DISC

flat, inner clutch

6шт.

24

119434A1

BLOCK

SHIM - end

2шт.

25

124194A1

SHAFT

sun gear, 32 teeth

2шт.

26

124196A1

CYLINDER END CAP

CARRIER - disc, no longer available, order 281725A1 carrier and 242222A1 plate

2шт.

26a

281725A1

GEAR

CARRIER - disc, if used, does not require Ref. 28 and 29, illustration not available

2шт.

27

119437A1

RING, SNAP

RING SNAP PLATE - carrier, used with 124196A1 carrier

2шт.

27a

242222A1

RING

PLATE - carrier, if used, used with item 26A carrier, does not require Ref. 28 and 29, illustration not available

2шт.

28

119438A1

CIRCLIP

used with 124196A1 carrier and 119437A1 plate, Ref. 26 and 27

2шт.

29

626-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

Used with 124196A1 carrier and 119437A1 plate, Ref. 26 and 27

8шт.

30

124198A1

CYLINDER END CAP

CARRIER - planetary

2шт.

31

119559A1

PLUG

16 x 1.5 mm

3шт.

32

123549A1

O-RING,2mm Thk x 12mm ID, 70 Duro

plug

2шт.

33

119443A1

O-RING,312mm ID x 2.5mm Width

carrier

2шт.

34

123775A1

PINION

GEAR planetary

6шт.

35

A52147

RING

retaining

8шт.

36

119453A1

THRUST WASHER

thrust, 5.0 mm

1шт.

36

119456A1

THRUST WASHER

thrust, 6.0 mm

1шт.

36

119459A1

THRUST WASHER

thrust, 6.3 mm

1шт.

36

119461A1

THRUST WASHER

thrust, 6.5 mm

1шт.

36

119463A1

THRUST WASHER

thrust, 3.3 mm

1шт.

36

119464A1

THRUST WASHER

thrust, 2.9 mm

1шт.

36

119465A1

THRUST WASHER

thrust, 3.5 mm

1шт.

36

119467A1

THRUST WASHER

thrust, 3.7 mm

1шт.

36

119468A1

THRUST WASHER

thrust, 3.9 mm

1шт.

36

119470A1

THRUST WASHER

thrust, 4.1 mm

1шт.

37

A52314

BOLT

14 x 40 mm, class 10.9

48шт.

38

A52096

O-RING,2.5mm Thk x 38mm ID

plug

2шт.

39

119471A1

PLUG

hex, used with axle assembly 107930A1

2шт.

39

A52372

O-RING,2.5mm Thk x 38mm ID

used with axle assembly 231364A1

2шт.

40

123776A1

WHEEL BOLT

wheel

24шт.

41

123622A1

ADAPTER

bolt

2шт.

42

123549A1

O-RING,2mm Thk x 12mm ID, 70 Duro

adapter

2шт.

43

3222214R1

VALVE

bleeder

2шт.
