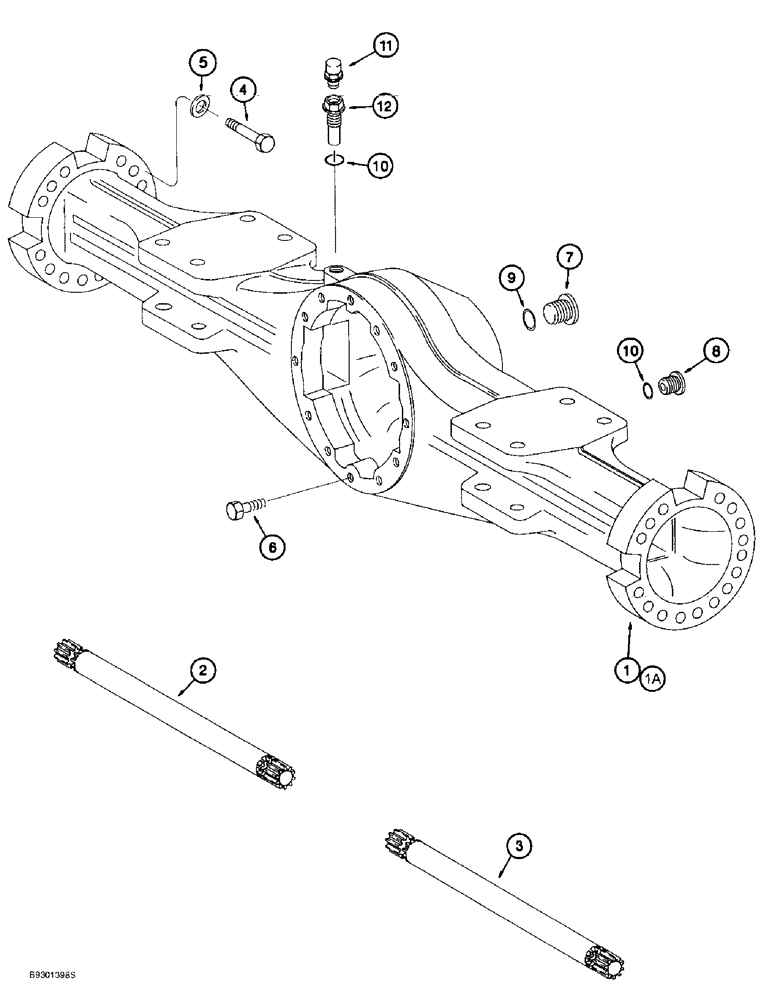

Запчасти Case 621B (6-36) - FRONT AXLE HOUSING (06) - POWER TRAIN

107930A1

4WD AXLE ASSY

ZF No. 4474 004 156, Front, Includes: Ref. 1, 2 - 12 on this figure and parts on Figures 6-38 - 6-44, Serial Range: -JEE0051302

1шт.

231364A1

4WD AXLE ASSY

ZF No. 4474 004 187, Front, Includes: Ref. 1A - 14 on this figure and parts on Figures 6-36 - 6-44 JEE0051302 to

1шт.

1

121399A1

HOUSING

Used With 107930A1 Axle

1шт.

1a

308828A1

HOUSING

Used With 231364A1 Axle

1шт.

2

121400A1

SHAFT

axle, 1006 mm long

1шт.

3

121401A1

SHAFT

axle, 980 mm long

1шт.

4

119379A1

SCREW

hex, special, 20-2.5 x 85 mm, class 10.9, Used With 107930A1 Axle

32шт.

4

308829A1

BOLT,Hex, M20 x 1.5 x 75mm, Grade 10.9

hex, special, 20-1.5 x 75 mm, class 10.9, Used With 231364A1 Axle

32шт.

When 308829A1 bolts are installed, the bolt head must be to the wheel side of the flange.

1шт.

5

119381A1

BEARING WASHER

bearing cap

32шт.

6

A52094

FLANGE BOLT

hex flange, special, differential to axle housing

8шт.

6

3404789R1

SCREW

hex flange, special, differential to axle housing

4шт.

7

A48791

PLUG

42 mm thread

1шт.

8

119349A1

PLUG

axle housing, special

1шт.

9

A52096

O-RING,2.5mm Thk x 38mm ID

Large

1шт.

10

A52097

O-RING,2mm Thk x 21mm ID

Small

2шт.

11

A48855

VALVE

breather

1шт.

12

8603256

PLUG

special

1шт.

13

193152A1

BOLT

Used With 231364A1 Axle, Not Illustrated

6шт.

14

A52372

O-RING,2.5mm Thk x 38mm ID

Used With 231364A1 Axle, Not Illustrated

1шт.
