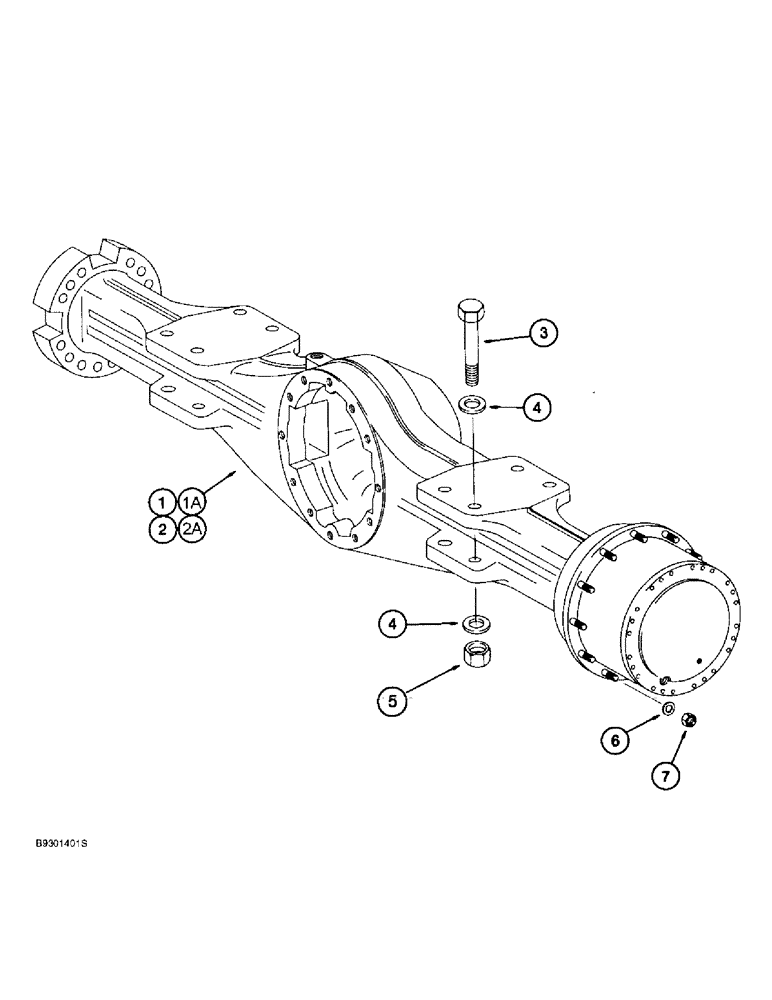

Запчасти Case 621B (6-34) - AXLE ASSEMBLIES AND MOUNTING (06) - POWER TRAIN

1

107930A1

4WD AXLE ASSY

ZF No. 4474 004 156, front, parts list Figures 6-36 - 6-44, Serial Range: -JEE0051302

1шт.

1a

231364A1

4WD AXLE ASSY

ZF No. 4474 004 187, front, parts list Figures 6-36 - 6-44 JEE0051302 to

1шт.

2

107931A1

REAR AXLE

ZF No. 4474 004 157, parts list Figures 6-46 - 6-54, Serial Range: -JEE0051302

1шт.

2a

231365A1

REAR AXLE

ZF No. 4474 004 188, parts list Figures 6-46 - 6-54 JEE0051302 to

1шт.

3

328-16160

BOLT,Hex, 1" - 14 x 10", Gr 8

16шт.

4

496-21106

WASHER,1 1/16" x 2" x .209", HDN

32шт.

5

232-24416

NUT,1"-14, GC

16шт.

6

496-41081

WASHER,13/16" x 1 3/4" x .219", HDN

48шт.

7

29-1712

NUT,3/4"-16, G8, Hvy

heavy, hex, 3/4 inch NF

48шт.
