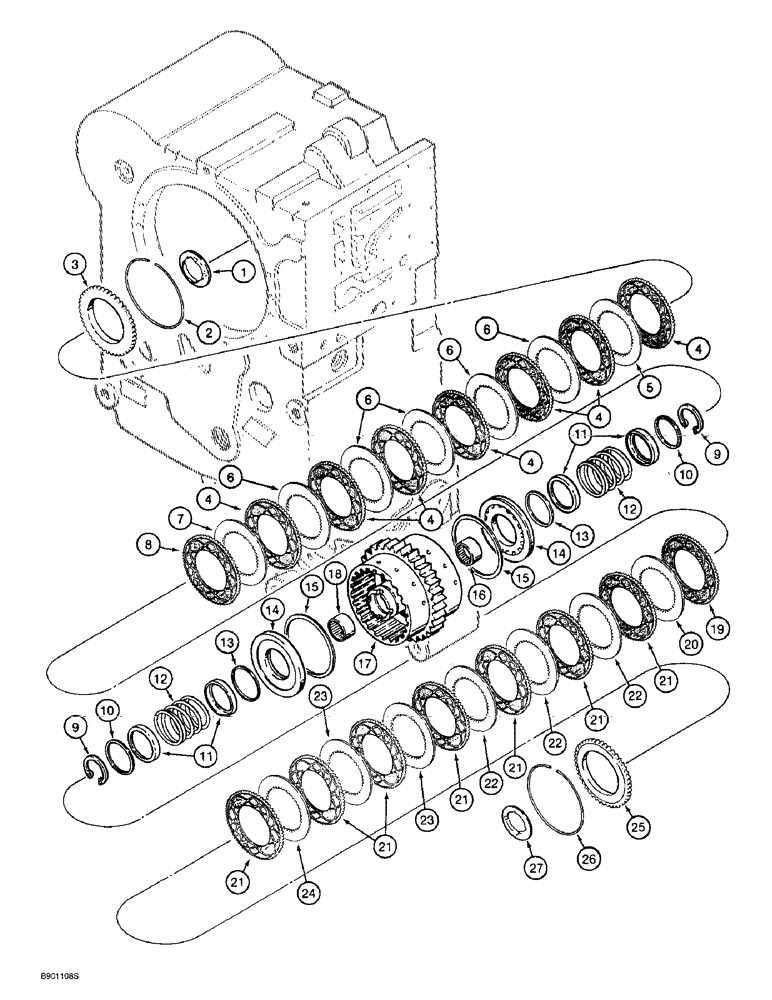

Запчасти Case 621B (6-32) - TRANSMISSION ASSEMBLY, THIRD AND FOURTH CLUTCH PACK (06) - POWER TRAIN

L129926

TRANSMISSION

ASSY., ZF No. 4642 054 018, Includes: Ref. 2 and 3 on Figure 6-02, Ref. 12 - 16 on Figure 6-04, Ref. 4 and 25 on Figure 6-06, and all items on Figures 6-08, 6-10 - 6-26, 6-28, 6-30 and this figure, Serial Range: -JEE0052701

1шт.

LR129926

REMAN-TRANSMISSION

Remanufactured Transmission; 621B, Prior to P.I.N. JEE0052701, Model Number 4WG150, Stock Number 4642 054 018

1шт.

LC129926

CORE-TRANSMISSION

Return Number

1шт.

241952A1

TRANSMISSION

ASSY., ZF No. 4642 054 052, Includes: Ref. 2 and 3 on Figure 6-02, Ref. 12 - 16 on Figure 6-04, Ref. 4 and 25 on Figure 6-06, and all items on Figures 6-09 - 6-24, 6-27A - 6-30 and this figure JEE0052701 to

1шт.

241952A1R

REMAN-TRANSMISSION

Remanufactured Transmission; 621B, P.I.N. JEE0052701 & after, Model Number 4WG150, Stock Number 4642 054 052

1шт.

241952A1C

CORE-TRANSMISSION

Return Number

1шт.

NSS

NOT SOLD SEPARAT

PACK clutch, Third and Fourth Clutches, Includes: Ref. 1 - 27

1шт.

1

183525A1

THRUST WASHER

L129926 Transmission, Replaces E135227 Washer

1шт.

The new thrust washers must not be used with the old. The new and the old thrust washers are different in color. The new thrust washers are gray in color and the old thrust washers are yellow.

1шт.

1

237353A1

THRUST WASHER

241952A1 Transmission

1шт.

2

E135124

RING, SNAP

RING SNAP retaining, disc

1шт.

2

185439A1

RING, SNAP

RING SNAP retaining, internal, 2.25 mm thick, Optional

1шт.

2

185440A1

RING, SNAP

RING SNAP retaining, internal, 2.30 mm thick, Optional

1шт.

2

185441A1

RING, SNAP

RING SNAP retaining, internal, 2.35 mm thick, Optional

1шт.

2

185442A1

RING, SNAP

RING SNAP retaining, internal, 2.40 mm thick, Optional

1шт.

2

185443A1

RING, SNAP

RING SNAP retaining, internal, 2.45 mm thick, Optional

1шт.

2

185444A1

RING, SNAP

RING SNAP retaining, internal, 2.50 mm thick, Optional

1шт.

2

187238A1

RING, SNAP

RING SNAP retaining, internal, 2.20 mm thick, Optional

1шт.

2

185445A1

RING, SNAP

RING SNAP retaining, internal, 2.15 mm thick, Optional

1шт.

2

185446A1

RING, SNAP

RING SNAP retaining, internal, 2.10 mm thick, Optional

1шт.

3

E135222

NOTCHED DISK

backing

1шт.

4

E135004

CLUTCH PLATE,137.5mm OD x 2mm Thk

Clutch, Fiber, External Teeth

7шт.

5

E135224

NOTCHED DISK

Steel, Internal Teeth, 1.5 mm Thick, If Used

1шт.

5

E135226

NOTCHED DISK

Steel, Internal Teeth, 2.0 mm Thick, If Used

1шт.

5

E135225

NOTCHED DISK

Steel, Internal Teeth, 2.5 mm Thick, If Used

1шт.

6

E135226

NOTCHED DISK

Steel, Internal Teeth, 2.0 mm Thick

5шт.

7

E135225

NOTCHED DISK

Steel, Internal Teeth, 2.5 mm Thick

1шт.

8

S301550

NOTCHED DISK

fiber, external teeth

1шт.

9

E135019

CIRCLIP

spring retaining

2шт.

10

E135221

GUIDE BUSHING,58.3mm ID x 65mm OD x 2.5mm L

guide

2шт.

11

E135220

GUIDE RING

spring

4шт.

12

E135131

SPRING

clutch

2шт.

13

106876A1

SEALING RING,60mm ID x 2.5mm Thk

SEALRING

2шт.

14

185168A1

PISTON

clutch

2шт.

15

199070A1

SEALING RING

SEALRING

2шт.

16

E135044

BEARING, NEEDLE

1шт.

17

183967A1

HUB

HOUSING third and fourth clutches

1шт.

18

E135153

NEEDLE BEARING,Needle, 35mm ID x 42mm OD x 20mm W

1шт.

19

S301550

NOTCHED DISK

Fiber, External Teeth, Inner

1шт.

20

E135225

NOTCHED DISK

Steel, Internal Teeth, 2.5 mm Thick

1шт.

21

E135004

CLUTCH PLATE,137.5mm OD x 2mm Thk

Fiber, External Teeth

7шт.

22

E135226

NOTCHED DISK

Steel, Internal Teeth, 2.0 mm Thick

3шт.

23

E135224

NOTCHED DISK

Steel, Internal Teeth, 1.5 mm Thick

2шт.

24

E135224

NOTCHED DISK

Steel, Internal Teeth, 1.5 mm Thick, If Used

1шт.

24

E135226

NOTCHED DISK

Steel, Internal Teeth, 2.0 mm Thick, If Used

1шт.

24

E135225

NOTCHED DISK

Steel, Internal Teeth, 2.5 mm Thick, If Used

1шт.

25

E135222

NOTCHED DISK

backing

1шт.

26

E135124

RING, SNAP

RING SNAP disc

1шт.

26

185439A1

RING, SNAP

RING SNAP retaining, internal, 2.25 mm Thick, Optional

1шт.

26

185440A1

RING, SNAP

RING SNAP retaining, internal, 2.30 mm Thick, Optional

1шт.

26

185441A1

RING, SNAP

RING SNAP retaining, internal, 2.35 mm Thick, Optional

1шт.

26

185442A1

RING, SNAP

RING SNAP retaining, internal, 2.40 mm Thick, Optional

1шт.

26

185443A1

RING, SNAP

RING SNAP retaining, internal, 2.45 mm Thick, Optional

1шт.

26

185444A1

RING, SNAP

RING SNAP retaining, internal, 2.50 mm Thick, Optional

1шт.

26

187238A1

RING, SNAP

RING SNAP retaining, internal, 2.20 mm Thick, Optional

1шт.

26

185445A1

RING, SNAP

RING SNAP retaining, internal, 2.15 mm Thick, Optional

1шт.

26

185446A1

RING, SNAP

RING SNAP retaining, internal, 2.10 mm Thick, Optional

1шт.

27

183525A1

THRUST WASHER

L129926 Transmission, Replaces E1355218 and E135227 Washers

1шт.

The new thrust washers must not be used with the old. The new and the old thrust washers are different in color. The new thrust washers are gray in color and the old thrust washers are yellow.

1шт.

27

237353A1

THRUST WASHER

241952A1 Transmission

1шт.
