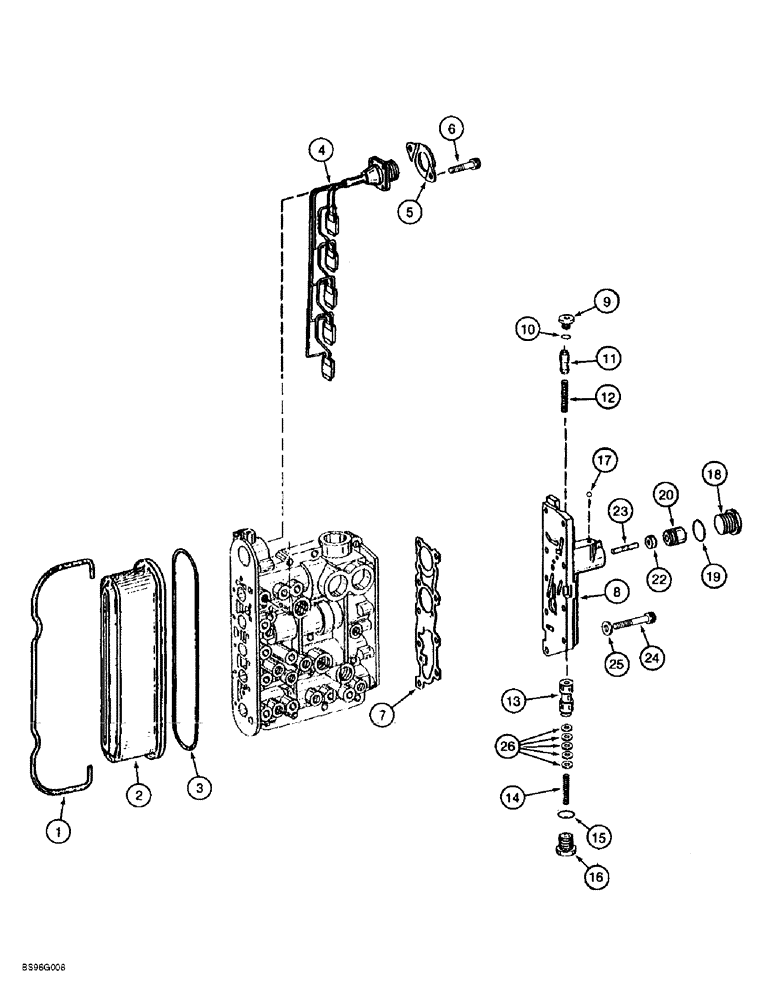

Запчасти Case 621B (6-26) - TRANSMISSION ASSEMBLY, CONTROL VALVE, L129926 TRANSMISSION, PRIOR TO P.I.N. JEE0052701 (06) - POWER TRAIN

L129926

TRANSMISSION

ASSEMBLY, ZF No. 4642 054 018, Includes: Ref. 2 and 3 on Figure 6-02, Ref. 12 - 16 on Figure 6-04, Ref. 4 and 25 on Figure 6-06, and all items on Figures 6-08, 6-10 - 6-24, this figure and 6-28 - 6-32, Serial Range: -JEE0052701

1шт.

LR129926

REMAN-TRANSMISSION

Remanufactured Transmission; 621B, Prior to P.I.N. JEE0052701, Model Number 4WG150, Stock Number 4642 054 018

1шт.

LC129926

CORE-TRANSMISSION

Return Number

1шт.

100333A1

VALVE

ASSEMBLY transmission control, Includes: Ref. 1 - 26 on this figure and items on Figure 6-24

1шт.

1

100361A1

CLAMP

wire, solenoid cover

1шт.

2

100360A1

COVER

solenoid, used in 100334A1 and 178911A1 transmission control valve body only, see Figure 6-24

1шт.

2

129808A1

COVER

solenoid, used in 185437A1 transmission control valve body only, see Figure 6-24

1шт.

3

E135034

O-RING,5.7mm Thk x 164.2mm ID

SEAL solenoid cover, used in 100334A1 and 178911A1 transmission control valve body only, see Figure 6-24

1шт.

3

129809A1

O-RING,159.2mm ID x 5.7mm Width

solenoid cover, used in 185437A1 transmission control valve body only, see Figure 6-24

1шт.

4

100357A1

HARNESS

transmission control valve

1шт.

5

100359A1

LARGE PLATE

PLATE, LARGE BRACKET harness mounting

1шт.

6

199064A1

SCREW

cap, special, replaces 100358A1 screw

2шт.

7

231128A1

GASKET,0.55mm Thk

cover, replaces 100351A1 gasket

1шт.

8

100362A1

HOUSING

COVER valve, front, used in 100334A1 and 178911A1 transmission control valve body only, see Figure 6-24

1шт.

8

129810A1

LARGE PLATE

PLATE, LARGE COVER valve, front, used in 185437A1 transmission control valve body only, see Figure 6-24

1шт.

9

100367A1

PLUG

hex socket, special

1шт.

10

100369A1

O-RING,9.5mm ID x 2mm Width

plug

1шт.

11

100366A1

PISTON

SPOOL relief

1шт.

12

100368A1

COMPRESSION SPRING

Relief spool

1шт.

13

100370A1

PISTON

SPOOL relief

1шт.

14

N14721

SPRING

relief spool

1шт.

15

106970A1

SEALING RING

plug, replaces S300495 seal

1шт.

16

129792A1

PLUG

hex socket, special, 18 x 1.5 mm, replaces 934164R1 plug

1шт.

17

S300552

BALL

valve

4шт.

18

S301601

PLUG

hex, special, if used

1шт.

19

S301602

O-RING,2mm Thk x 17mm ID

O-RING plug, if used

1шт.

20

100364A1

PISTON

20.5 mm, if used

1шт.

20

131082A1

PISTON

21.0 mm, if used

1шт.

20

100365A1

PISTON

21.5 mm, if used

1шт.

22

S301604

SHIM

2.0 mm thick, if used

1шт.

22

S301605

SHIM

3.0 mm thick, if used

1шт.

22

S301606

SHIM

4.0 mm thick, if used

1шт.

22

S301607

SHIM

6.0 mm thick, if used

1шт.

22

S301608

SHIM

8.0 mm thick, if used

1шт.

23

S301603

NEEDLE

PLUNGER valve

1шт.

24

131080A1

SCREW,M6 x 20mm, Gr 8.8

6-1.0 x 20 mm, replaces 100363A1 bolt

9шт.

25

3078026R1

WASHER,M6.4

flat, special

9шт.

26

S301611

SHIM,0.5mm Thk

If used

10шт.
