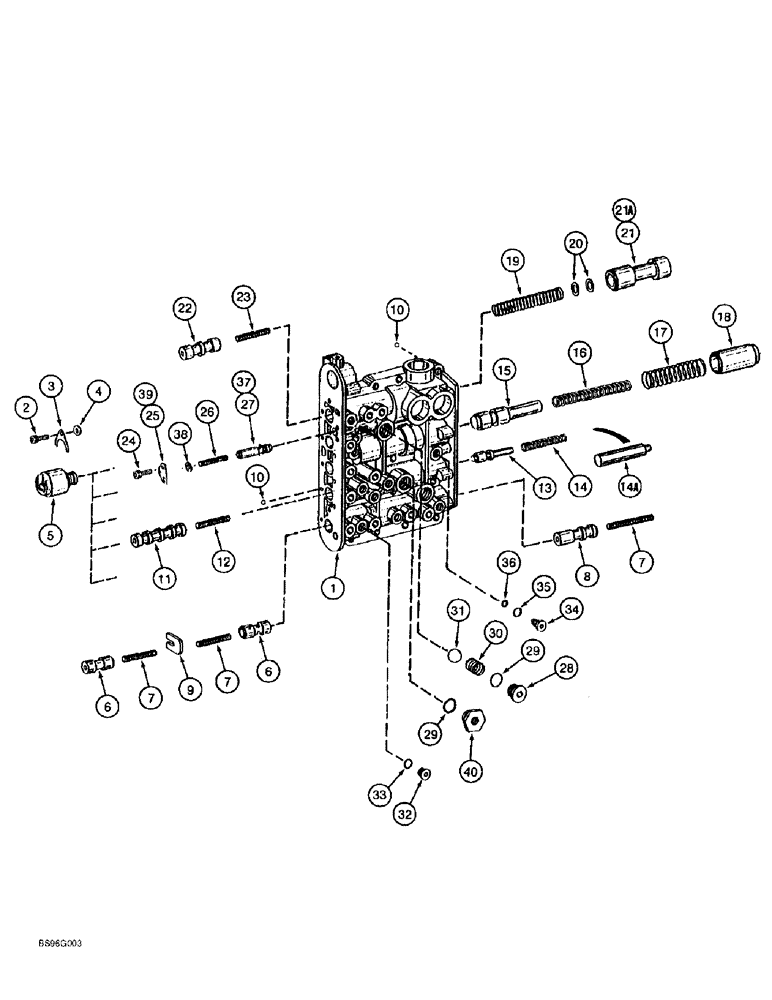

Запчасти Case 621B (6-24) - TRANSMISSION ASSEMBLY, CONTROL VALVE (06) - POWER TRAIN

L129926

TRANSMISSION

ASSEMBLY, ZF No. 4642 054 018, Includes: Ref. 2 and 3 on Figure 6-02, Ref. 12 - 16 on Figure 6-04, Ref. 4 and 25 on Figure 6-06, and all items on Figures 6-08, 6-10 - 6-22, this figure, 6-26 and 6-28 - 6-32, Serial Range: -JEE0052701

1шт.

LR129926

REMAN-TRANSMISSION

Remanufactured Transmission; 621B, Prior to P.I.N. JEE0052701, Model Number 4WG150, Stock Number 4642 054 018

1шт.

LC129926

CORE-TRANSMISSION

Return Number

1шт.

241952A1

TRANSMISSION

ASSEMBLY, ZF No. 4642 054 052, Includes: Ref. 2 and 3 on Figure 6-02, Ref. 12 - 16 on Figure 6-04, Ref. 4 and 25 on Figure 6-06, and all items on Figures 6-09 - 6-22, this figure, and 6-27A - 6-32 JEE0052701 to

1шт.

241952A1R

REMAN-TRANSMISSION

Remanufactured Transmission; 621B, P.I.N. JEE0052701 & after, Model Number 4WG150, Stock Number 4642 054 052

1шт.

241952A1C

CORE-TRANSMISSION

Return Number

1шт.

100333A1

VALVE

ASSEMBLY transmission control, L129926 transmission, Includes: Ref. 1 - 40 on this figure and items on Figure 6-26

1шт.

On replacement valves or valve bodies, the port marked "P" is larger than what was in the original. The larger port requires a sleeve number 185438A1 and an O-ring S300495.

1шт.

250656A1

VALVE

ASSEMBLY transmission control, 241952A1 transmission, Includes: Ref. 1 - 40 on this figure and items on Figure 6-27A

1шт.

On replacement valves or valve bodies, the port marked "P" is larger than what was in the original. The larger port requires a sleeve number 185438A1 and an O-ring S300495.

1шт.

1

100334A1

HOUSING

BODY transmission control valve, Casting Stamped 4644-406-372; If Used

1шт.

1

178911A1

HOUSING

BODY transmission control valve, Casting Stamped 4644-406-526; If Used

1шт.

1

185437A1

HOUSING

BODY transmission control valve, Casting Stamped 4644-406-560; If Used

1шт.

1

237348A1

VALVE

BODY transmission control, Housing, Casting Stamped 4644-406-558; If Used

1шт.

2

864-5012

HEX SOC SCREW,M5 x 12mm, Cl 8.8

5шт.

3

S300554

LARGE PLATE

PLATE, LARGE support, solenoid valve

5шт.

4

S300530

SHIM,5.5mm ID x 13mm OD x 2mm Thk

Washer flat, special

5шт.

5

100356A1

VALVE

Solenoid, L129926 Transmission, No Longer Available, Order 242137A1 Valve

5шт.

5

242137A1

SOLENOID VALVE,18v

VALVE, 241952A1 Transmission

5шт.

6

100349A1

PISTON

SPOOL small, number 1 bore

2шт.

7

S300540

COMPRESSION SPRING

spool, number 1 spool

3шт.

8

100350A1

PISTON

SPOOL large, number 1 bore

1шт.

9

100348A1

LARGE PLATE

PLATE, LARGE SEAT spring

1шт.

10

S300552

BALL

valve

10шт.

11

100352A1

PISTON

SPOOL valve, number 2 bore

1шт.

12

S300540

COMPRESSION SPRING

spool, number 2 bore

1шт.

13

100346A1

PISTON

PLUNGER valve, Number 2 Bore, Used in 100334A1 and 178911A1 Transmission Control Valve Body Only

1шт.

13

129805A1

PISTON

PLUNGER valve, Number 2 Bore, Used in 185437A1 Transmission Control Valve Body Only

1шт.

14

100347A1

COMPRESSION SPRING

Plunger, Number 2 Bore, Used With Ref. 13 Plungers

1шт.

14a

250691A1

PLUG

Valve, Number 2 Bore, Used in 237348A1 Transmission

1шт.

15

100342A1

PISTON

PLUNGER, Number 3 Bore, Used in 100334A1, 178911A1 and 185437A1 Transmission Control Valve Body Only

1шт.

15

250692A1

PLUG

PLUNGER, Number 3 Bore, Used in 237248A1 Transmission Control Valve Body Only

1шт.

16

100344A1

COMPRESSION SPRING

SPRING - number 3 bore, 124.1 MM long, 10.9 mm O.D.

1шт.

17

100343A1

COMPRESSION SPRING

SPRING - number 3 bore, 77.1 mm long, 21.7 mm O.D.

1шт.

18

100345A1

PISTON

valve, number 3 bore

1шт.

19

100335A1

COMPRESSION SPRING

spool, number 4 bore

1шт.

20

100337A1

SHIM

SHIM spring tension

2шт.

21

100336A1

PISTON

SPOOL valve, Number 4 Bore, Used in 100334A1 Transmission Control Valve body Only

1шт.

21a

178912A1

PISTON

SPOOL valve, Number 4 Bore, Used in 178911A1, 185437A1, and 237248A1 Transmission Control Valve body Only

1шт.

22

100353A1

PISTON

SPOOL valve, number 5 bore

1шт.

23

S300540

COMPRESSION SPRING

spool, number 5 bore

1шт.

24

864-5012

HEX SOC SCREW,M5 x 12mm, Cl 8.8

2шт.

25

100355A1

LARGE PLATE

PLATE, LARGE Support, Reducing Valve, Used in 100334A1 and 178911A1 Transmission Control Valve Body Only, Number 4 Bore

1шт.

26

S300550

COMPRESSION SPRING

reducing valve

1шт.

27

100354A1

VALVE

Reducing, used in 100334A1 and 178911A1 Transmission Control Valve Body Only

1шт.

28

129792A1

PLUG

Replaces 934164R1 Plug

2шт.

29

106970A1

SEALING RING

Replaces S300495 Seal

2шт.

30

E135132

SPRING

valve

2шт.

31

E135050

BALL

check, 16 mm OD

2шт.

32

A52230

PLUG

10 mm-1

7шт.

33

S300491

O-RING,8mm ID x 1.5mm Width

special

7шт.

34

100338A1

PORT

PLUG orifice, 0.60 mm, If Used

1шт.

34

129801A1

PORT

PLUG orifice, 0.65 mm, If Used

1шт.

34

100339A1

PORT

PLUG orifice, 0.70 mm, If Used

1шт.

34

129802A1

PORT

PLUG orifice, 0.75 mm, If Used

1шт.

34

100340A1

PORT

PLUG orifice, 0.80 mm, If Used

1шт.

34

129803A1

PORT

PLUG orifice, 0.85 mm, If Used

1шт.

34

185121A1

JET

PLUG orifice, 0.95 mm, If Used

1шт.

34

129804A1

PORT

PLUG orifice, 0.90 mm, If Used

1шт.

35

S300491

O-RING,8mm ID x 1.5mm Width

special, large

1шт.

36

100341A1

O-RING,6mm ID x 1.5mm Width

plug, small

1шт.

37

185461A1

REDUCER

VALVE, used in 185437A1 and 234348A1 Transmission Valve Body Only

1шт.

38

185462A1

RING, SNAP

RING SNAP Transmission Control Valve, Used in 185437A1 and 234348A1 Transmission Control Valve Body Only

1шт.

39

185463A1

LARGE PLATE

PLATE, LARGE Fixing, Used in 185437A1 and 234348A1 Transmission Control Valve Body Only

1шт.

40

185438A1

PLUG

SLEEVE - threaded

1шт.
