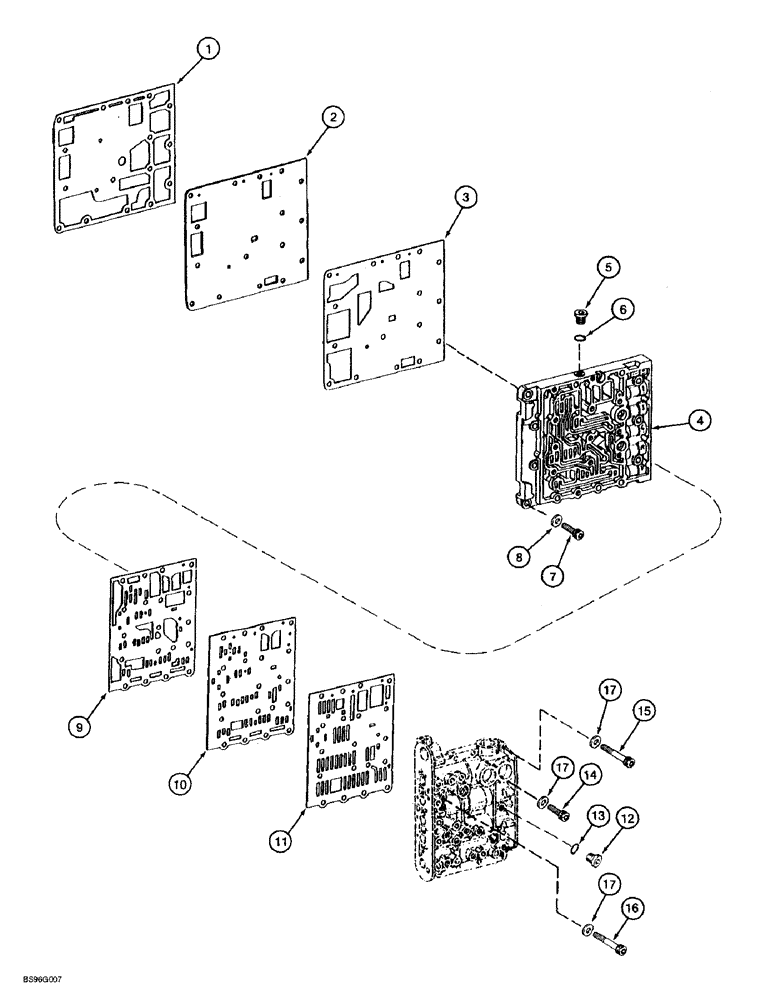

Запчасти Case 621B (6-22) - TRANSMISSION ASSEMBLY, VALVE PLATES AND HYDRAULICS (06) - POWER TRAIN

L129926

TRANSMISSION

ASSEMBLY, ZF No. 4642 054 018, Includes: Ref. 2 and 3 on Figure 6-02, Ref. 12 - 16 on Figure 6-04, Ref. 4 and 25 on Figure 6-06, and all items on Figures 6-08, 6-10 - 6-20, this figure, 6-24, 6-26 and 6-28 - 6-32, Serial Range: -JEE0052701

1шт.

LR129926

REMAN-TRANSMISSION

Remanufactured Transmission; 621B, Prior to P.I.N. JEE0052701, Model Number 4WG150, Stock Number 4642 054 018

1шт.

LC129926

CORE-TRANSMISSION

Return number

1шт.

241952A1

TRANSMISSION

ASSEMBLY, ZF No. 4642 054 052, Includes: Ref. 2 and 3 on Figure 6-02, Ref. 12 - 16 on Figure 6-04, Ref. 4 and 25 on Figure 6-06, and all items on Figures 6-09 - 6-20, this figure, 6-24 and 6-27A - 6-32, Start Serial: JEE0052701

1шт.

241952A1R

REMAN-TRANSMISSION

Remanufactured Transmission; 621B, P.I.N. JEE0052701 & after, Model Number 4WG150, Stock Number 4642 054 052

1шт.

241952A1C

CORE-TRANSMISSION

Return Number

1шт.

1

103610A1

GASKET,0.35mm Thk

plate, at transmission housing

1шт.

2

106945A1

COVER

PLATE valve, transmission housing to channel plate replaces 103611A1 plate

1шт.

3

103612A1

GASKET,0.35mm Thk

valve plate

1шт.

4

103613A1

LARGE PLATE

PLATE, LARGE hydraulic channel

1шт.

5

A52230

PLUG

10 mm-1

1шт.

6

S300491

O-RING,8mm ID x 1.5mm Width

special, plug

1шт.

7

864-8035

HEX SOC SCREW,M8 x 35mm, Cl 8.8

11шт.

8

934033R1

WASHER,M8 x 15 x 2

flat, special

11шт.

9

103614A1

GASKET

at channel plate to valve plate, L129926 transmission, no longer available, order 129790A1 gasket and 129791A1 plate, Ref. 9A

1шт.

9

129790A1

GASKET,0.4mm Thk

at channel plate to valve plate, L129926 and 241952A1 transmissions

1шт.

10

129791A1

COVER

PLATE valve, not shown, L129926 and 241952A1 transmissions

1шт.

11

103616A1

GASKET,0.35mm Thk

at control valve to valve plate

1шт.

12

A52230

PLUG

hex socket, 10 mm-1, if used

1шт.

13

S300491

O-RING,8mm ID x 1.5mm Width

special, if used

1шт.

14

864-8035

HEX SOC SCREW,M8 x 35mm, Cl 8.8

11шт.

15

100331A1

SCREW

BOLT, 8-1.25 x 65 mm

1шт.

16

100332A1

SCREW

BOLT, 8-1.25 x 60 mm

5шт.

17

934033R1

WASHER,M8 x 15 x 2

flat, special

6шт.
