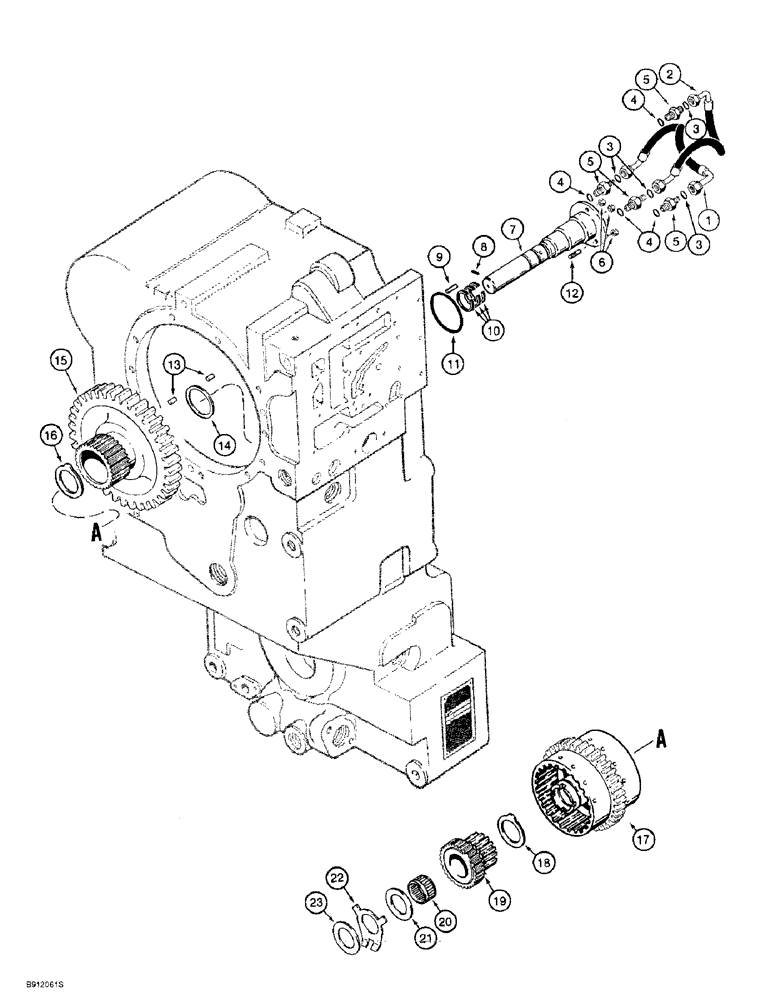

Запчасти Case 621B (6-18) - TRANSMISSION ASSEMBLY, THIRD AND FOURTH CLUTCHES (06) - POWER TRAIN

L129926

TRANSMISSION

ASSEMBLY, ZF No. 4642 054 018, Includes: Ref. 2 and 3 on Figure 6-02, Ref. 12 - 16 on Figure 6-04, Ref. 4 and 25 on Figure 6-06, and all items on Figures 6-08, 6-10 - 6-16, this figure, 6-20 - 6-26 and 6-28 - 6-32, Serial Range: -JEE0052701

1шт.

LR129926

REMAN-TRANSMISSION

Remanufactured Transmission; 621B, Prior to P.I.N. JEE0052701, Model Number 4WG150, Stock Number 4642 054 018

1шт.

LC129926

CORE-TRANSMISSION

Return Number

1шт.

241952A1

TRANSMISSION

ASSEMBLY, ZF No. 4642 054 052, Includes: Ref. 2 and 3 on Figure 6-02, Ref. 12 - 16 on Figure 6-04, Ref. 4 and 25 on Figure 6-06, and all items on Figures 6-09 - 6-16, this figure, 6-20 - 6-24 and 6-27A - 6-32, Start Serial: JEE0052701

1шт.

241952A1R

REMAN-TRANSMISSION

Remanufactured Transmission; 621B, P.I.N. JEE0052701 & after, Model Number 4WG150, Stock Number 4642 054 052

1шт.

241952A1C

CORE-TRANSMISSION

Return Number

1шт.

1

103700A1

HYDRAULIC HOSE,15.88mm ID x 355mm L

355 mm (14 in) Long, Third Clutch, L129926 Transmission, Replaces 103617A1 Hose

1шт.

1

103620A1

HYDRAULIC HOSE,410.00 mm

Third Clutch, 241952A1 Transmission

1шт.

2

103620A1

HYDRAULIC HOSE,410.00 mm

Fourth Clutch, L129926 and 241952A1 Transmssion

1шт.

3

S300587

O-RING,12.4mm ID x 1.78mm Width

adapter, hose side

4шт.

4

S300586

O-RING,2.4mm Thk x 13.3mm ID, 70 Duro

Adapter, Transmission End

4шт.

5

S301961

ADAPTER

straight

4шт.

6

825-1408

NUT,M8, Cl 8

3шт.

7

103602A1

SHAFT

Axle Assembly, Third and Fourth Clutches, Includes: Ref. 8 and 9

1шт.

8

S301829

DOWEL

PIN roll, 2.5 x 10 mm long, replaces E135023 pin

2шт.

9

S301552

SLOTTED PIN

5 x 12 mm

2шт.

10

E135145

RING,35.2mm ID x 38mm OD x 2mm Thk

piston, axle shaft

3шт.

11

S300460

O-RING,3mm Thk x 49mm ID

axle

1шт.

12

E135084

STUD

8-1.25 x 18 mm

3шт.

13

S301561

ROLL

bearing

32шт.

14

S301562

SPACER

bearing

1шт.

15

185400A1

PINION

Gear, Third, L129926 Transmission, Replaces 103604A1 Gear

1шт.

15

199095A1

PINION

Gear, Third, 241952A1 Transmission

1шт.

16

183516A1

THRUST WASHER,46.5mm ID x 65mm OD x 2.1mm Thk

Tabbed, Third Gear, Replaces E135121 Washer

1шт.

The new thrust washers must not be used with the old. The new and the old thrust washers are different in color. The new thrust washers are gray in color and the old thrust washers are yellow.

1шт.

17

NSS

NOT SOLD SEPARAT

Pack, Clutch, Third and Fourth, See Figure 6-32 For Components

1шт.

18

183527A1

THRUST WASHER,Split, 36mm ID x 65mm OD x 2.1mm Thk

tabbed, fourth gear, L129926 transmission, Replaces E!35122 Washer

1шт.

The new thrust washers must not be used with the old. The new and the old thrust washers are different in color. The new thrust washers are gray in color and the old thrust washers are yellow.

1шт.

18

230548A1

THRUST WASHER

WASHER thrust, tabbed, fourth gear, 241952A1 transmission

1шт.

19

103603A1

PINION

Gear, Fourth

1шт.

20

E135147

NEEDLE BEARING CAGE,35mm ID x 50.1mm OD x 30.4mm W

1шт.

21

183515A1

THRUST WASHER,35.3mm ID x 70.5mm OD x 1.5mm Thk

35 x 70 x 1.5 mm, Replaces E135120 Washer

1шт.

The new thrust washers must not be used with the old. The new and the old thrust washers are different in color. The new thrust washers are gray in color and the old thrust washers are yellow.

1шт.

22

S301949

WASHER

notched

1шт.

23

E135098

SHIM,0.4mm Thk

(35.1 mm ID x 70 mm OD)

1шт.

23

E135099

SHIM,0.6mm Thk

(35.1 ID x 70 OD)

1шт.

23

E135100

SHIM,35.1mm ID x 70mm OD x 0.8mm Thk

(35.1 ID x 70 OD)

1шт.

23

E135101

SHIM,1.0mm Thk

(35.1 ID x 70 OD)

1шт.

23

E135102

SHIM,1.2mm Thk

(35.1 ID x 70 OD)

1шт.

23

199081A1

SHIM

1.4 mm Thick, Replaces E135103 Shim

1шт.

23

199082A1

SHIM,35.1mm ID x 70mm OD x 1.6mm Thk

1.6 mm Thick, Replaces E135104 Shim

1шт.

23

199083A1

SHIM

1.8 mm Thick, Replaces E135105 Shim

1шт.

23

199084A1

SHIM,35.1mm ID x 70mm OD x 2mm Thk

2.0 mm Thick, Replaces E135106 Shim

1шт.

23

199085A1

SHIM,35.1mm ID x 70mm OD x 2.2mm Thk

2.2 mm Thick, Replaces E135107 Shim

1шт.

23

199086A1

SHIM

2.4 mm Thick, Replaces E135108 Shim

1шт.

23

199087A1

SHIM

2.6 mm Thick, Replaces E135109 Shim

1шт.

23

199088A1

SHIM,2.8mm Thk

2.8 mm Thick, Replaces E135110 Shim

1шт.
