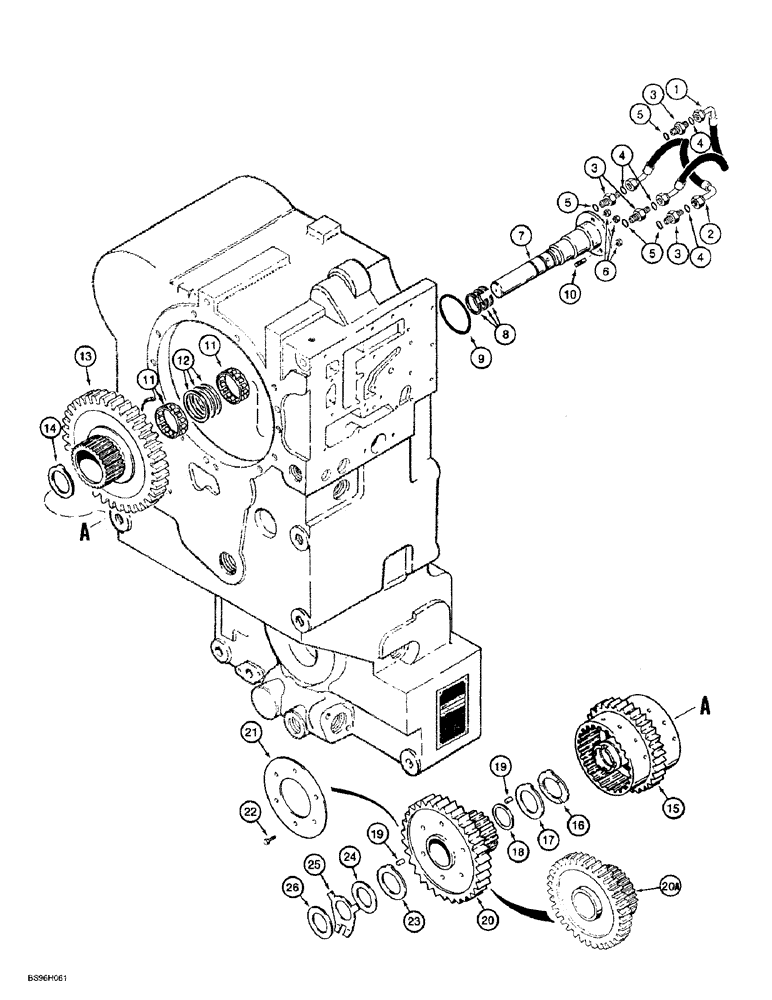

Запчасти Case 621B (6-16) - TRANSMISSION ASSEMBLY, REVERSE AND SECOND CLUTCHES (06) - POWER TRAIN

L129926

TRANSMISSION

ASSEMBLY, ZF No. 4642 054 018, Includes: Ref. 2 and 3 on Figure 6-02, Ref. 12 - 16 on Figure 6-04, Ref. 4 and 25 on Figure 6-06, and all items on Figures 6-08, 6-10 - 6-14, this figure, 6-18 - 6-26 and 6-28 - 6-32, Serial Range: -JEE0052701

1шт.

LR129926

REMAN-TRANSMISSION

Remanufactured Transmission;621B, Prior to P.I.N. JEE0052701, Model Number 4WG150, Stock Number 4642 054 018

1шт.

LC129926

CORE-TRANSMISSION

Return Number

1шт.

241952A1

TRANSMISSION

ASSEMBLY, ZF No. 4642 054 052, Includes: Ref. 2 and 3 on Figure 6-02, Ref. 12 - 16 on Figure 6-04, Ref. 4 and 25 on Figure 6-06, and all items on Figures 6-09 - 6-14, this figure, 6-18 - 6-24 and 6-27A - 6-32, Start Serial: JEE0052701

1шт.

241952A1R

REMAN-TRANSMISSION

Remanufactured Transmission; 621B, P.I.N. JEE0052701 & after, Model Number 4WG150, Stock Number 4642 054 052

1шт.

241952A1C

CORE-TRANSMISSION

Return Number

1шт.

1

103619A1

HYDRAULIC HOSE,378.00 mm

Second Clutch

1шт.

1

103620A1

HYDRAULIC HOSE,410.00 mm

Second Clutch, 241952A1 Transmission

1шт.

2

103702A1

HOSE,205.00 mm

Reverse Clutch, Replaces 103618A1 Hose on L129926 Transmission

1шт.

2

103618A1

HYDRAULIC HOSE,225.00 mm

Reverse Clutch, 241952A1 Transmission

1шт.

3

S301961

ADAPTER

straight

4шт.

4

S300587

O-RING,12.4mm ID x 1.78mm Width

adapter, hose side

4шт.

5

S300586

O-RING,2.4mm Thk x 13.3mm ID, 70 Duro

adapter, Transmission side

4шт.

6

825-1408

NUT,M8, Cl 8

3шт.

7

103599A1

DRIVE SHAFT

reverse and second clutches

1шт.

8

E135145

RING,35.2mm ID x 38mm OD x 2mm Thk

piston, axle shaft

3шт.

9

S300460

O-RING,3mm Thk x 49mm ID

axle

1шт.

10

E135084

STUD

8-1.25 x 18 mm

3шт.

11

S301555

ROLLER CAGE BEARING,45mm ID x 69 OD x 23.8mm

Roller, set of two

1шт.

12

S301557

RING, SNAP

RING SNAP retaining, bearing

3шт.

13

199098A1

PINION

Gear, Second, Replaces 103601A1 Gear

1шт.

14

183516A1

THRUST WASHER,46.5mm ID x 65mm OD x 2.1mm Thk

Tabbed, Second Gear, Replaces E135121

1шт.

The new thrust washers must not be used with the old. The new and the old thrust washers are different in color. The new thrust washers are gray in color and the old thrust washers are yellow.

1шт.

15

NSS

NOT SOLD SEPARAT

Pack, Clutch, Second and Reverse, See Figure 6-30 For Components

1шт.

16

183527A1

THRUST WASHER,Split, 36mm ID x 65mm OD x 2.1mm Thk

replaces E135122 washer, L129926 transmission

1шт.

The new thrust washers must not be used with the old. The new and the old thrust washers are different in color. The new thrust washers are gray in color and the old thrust washers are yellow.

1шт.

16

230548A1

THRUST WASHER

Washer, thrust, 241952A transmission

1шт.

17

S301531

WASHER

Thrust, Tabbed, Reverse Gear, Internal

1шт.

18

S301534

SPACER

roller bearing

1шт.

19

S301533

BEARING SET

KIT, roller, set of Two

1шт.

20

199097A1

PINION

GEAR reverse, Replaces 103600A1 and 183174A1 Gear

1шт.

20a

199097A1

PINION

Gear, reverse

1шт.

21

103595A1

PROTECTION PLATE

Gasket, Used With Ref 20, 183174A1 or 103600A1 Gear

1шт.

22

628-6012

BOLT,Hex, M6 x 12mm, Cl 10.9, Full Thd

Used with Ref 21 Gasket

6шт.

23

S301531

WASHER

Thrust, Tabbed, Reverse Gear, External, Replaces 103591A1

1шт.

24

183515A1

THRUST WASHER,35.3mm ID x 70.5mm OD x 1.5mm Thk

35 x 70 x 1.5 mm, Replaces E135120 Washer

1шт.

The new thrust washers must not be used with the old. The new and the old thrust washers are different in color. The new thrust washers are gray in color and the old thrust washers are yellow.

1шт.

25

S301949

WASHER

thrust, notched

1шт.

25

S301949

WASHER

thrust, notched

1шт.

26

E135098

SHIM,0.4mm Thk

(35.1 mm ID x 70 mm OD)

1шт.

26

E135099

SHIM,0.6mm Thk

(35.1 ID x 70 OD)

1шт.

26

E135100

SHIM,35.1mm ID x 70mm OD x 0.8mm Thk

(35.1 ID x 70 OD)

1шт.

26

E135101

SHIM,1.0mm Thk

(35.1 ID x 70 OD)

1шт.

26

E135102

SHIM,1.2mm Thk

(35.1 ID x 70 OD)

1шт.

26

199081A1

SHIM

1.4 mm thick, Replaces E135103 Shim

1шт.

26

199082A1

SHIM,35.1mm ID x 70mm OD x 1.6mm Thk

1.6 mm thick, Replaces E135104 Shim

1шт.

26

199083A1

SHIM

1.8 mm thick, Replaces E135105 Shim

1шт.

26

199084A1

SHIM,35.1mm ID x 70mm OD x 2mm Thk

2.0 mm thick, Replaces E135106 Shim

1шт.

26

199085A1

SHIM,35.1mm ID x 70mm OD x 2.2mm Thk

2.2 mm thick, Replaces E135107 Shim

1шт.

26

199086A1

SHIM

2.4 mm thick, Replaces E135108 Shim

1шт.

26

199087A1

SHIM

2.6 mm thick, Replaces E135109 Shim

1шт.

26

199088A1

SHIM,2.8mm Thk

2.8 mm thick, Replaces E135110 Shim

1шт.
