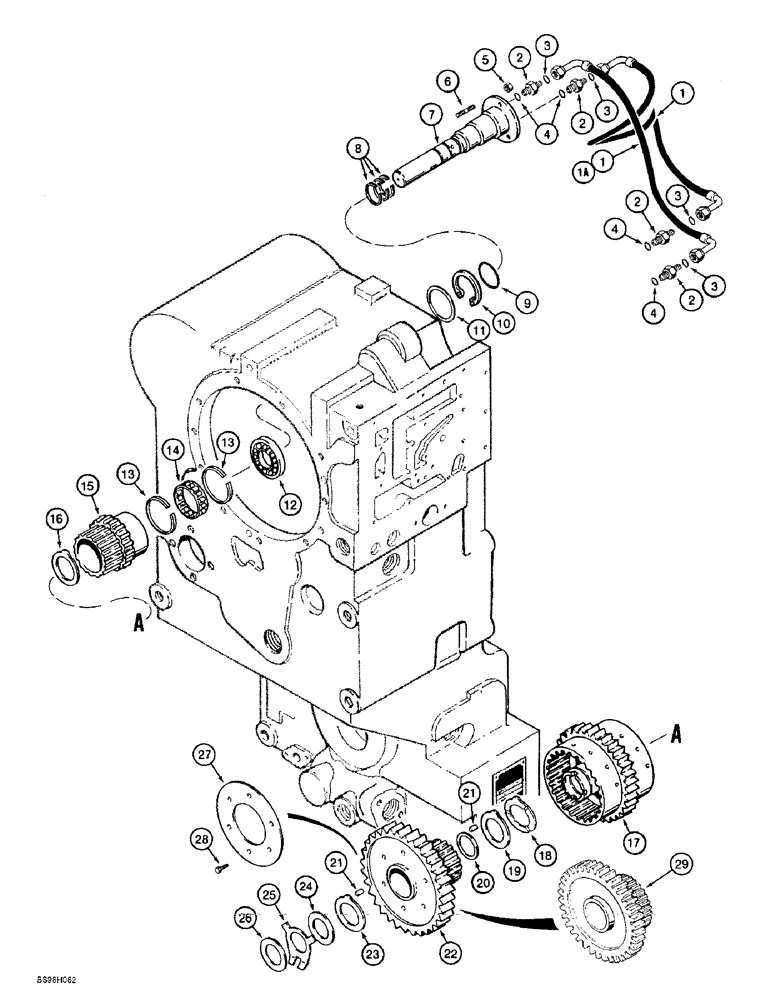

Запчасти Case 621B (6-14) - TRANSMISSION ASSEMBLY, FORWARD AND LOW CLUTCHES (06) - POWER TRAIN

L129926

TRANSMISSION

ASSEMBLY, ZF No. 4642 054 018, Includes: Ref. 2 and 3 on Figure 6-02, Ref. 12 - 16 on Figure 6-04, Ref. 4 and 25 on Figure 6-06, and all items on Figures 6-08, 6-10, 6-12, this figure, 6-16 - 6-26 and 6-28 - 6-32, Serial Range: -JEE0052701

1шт.

LR129926

REMAN-TRANSMISSION

Remanufactured Transmission; 621B, Prior to P.I.N. JEE0052701, Model Number 4WG150, Stock Number 4642 054 018

1шт.

LC129926

CORE-TRANSMISSION

Return Number

1шт.

241952A1

TRANSMISSION

ASSEMBLY, ZF No. 4642 054 052, Includes: Ref. 2 and 3 on Figure 6-02, Ref. 12 - 16 on Figure 6-04, Ref. 4 and 25 on Figure 6-06, and all items on Figures 6-09 - 6-12, this figure, 6-16 - 6-24 and 6-27A - 6-32, Start Serial: JEE0052701

1шт.

241952A1R

REMAN-TRANSMISSION

Remanufactured Transmission; 621B, P.I.N. JEE0052701 & after, Model Number 4WG150, Stock Number 4642 054 052

1шт.

241952A1C

CORE-TRANSMISSION

Return Number

1шт.

1

103700A1

HYDRAULIC HOSE,15.88mm ID x 355mm L

355 mm (14 in) Long, Forward and Low Clutch, L129926 Transmission, One Only Used For Forward Clutch on 241952A1 Transmission, Replaces 103617A1 Hose

1-2шт.

1a

103620A1

HYDRAULIC HOSE,410.00 mm

Used for Low Clutch on 241952A1 Transmission

1шт.

2

S301961

ADAPTER

straight

4шт.

3

S300587

O-RING,12.4mm ID x 1.78mm Width

adapter, hose end

4шт.

4

S300586

O-RING,2.4mm Thk x 13.3mm ID, 70 Duro

Adapter, Transmission End

4шт.

5

825-1408

NUT,M8, Cl 8

3шт.

6

E135084

STUD

8-1.25 x 18 mm

3шт.

7

103592A1

AXLE

forward and low clutches

1шт.

8

E135145

RING,35.2mm ID x 38mm OD x 2mm Thk

piston, axle shaft

3шт.

9

S300460

O-RING,3mm Thk x 49mm ID

axle

1шт.

10

K24302

RING, SNAP

RING SNAP

1шт.

11

S301544

SHIM,0.3mm Thk

(M60 ID x 75 OD)

1шт.

11

S301545

SHIM,0.5mm Thk

(M60 ID x 75 OD)

1шт.

11

103598A1

SHIM,60mm ID x 75mm OD x 1.2mm Thk

60 ID x 75 OD x 0.9 mm Thick

1шт.

11

S301546

SHIM,1mm Thk

(M60 ID x 75 OD)

1шт.

11

103597A1

SHIM

60 ID x 75 OD x 1.2 mm Thick, No Longer Available, Order S301546 Shim

1шт.

11

S301547

SHIM,1.5mm Thk

(M60 ID x 75 OD)

1шт.

11

S301548

SHIM,1.6mm Thk

(M60 ID x 75 OD)

1шт.

12

ST560

BEARING, BALL,45 mm ID x 75 mm OD x 16 mm

1шт.

13

S301542

RING, SNAP

RING SNAP retaining, bearing

2шт.

14

S301541

ROLLER CAGE BEARING,45mm ID x 65mm OD x 28mm

1шт.

15

S301543

PINION

Gear, Low

1шт.

16

183527A1

THRUST WASHER,Split, 36mm ID x 65mm OD x 2.1mm Thk

Replaces E135122 Washer

1шт.

The new thrust washers must not be used with the old. The new and the old thrust washers are different in color. The new thrust washers are gray in color and the old thrust washers are yellow.

1шт.

17

NSS

NOT SOLD SEPARAT

Pack, Clutch, Forward and Low, See Figure 6-28 For Components

1шт.

18

230548A1

THRUST WASHER

WASHER thrust, Replaces E135122 Washer

1шт.

The new thrust washers must not be used with the old. The new and the old thrust washers are different in color. The new thrust washers are gray in color and the old thrust washers are yellow.

1шт.

19

S301531

WASHER

Thrust, Tabbed, Forward Gear, Internal

1шт.

20

S301534

SPACER

roller bearing

1шт.

21

S301533

BEARING SET

Kit, Roller, set of two

1шт.

22

183188A1

PINION

Gear, Forward, Replaces 103594A1 Gear, Replaces By 199096A1 Gear, Ref 29

1шт.

23

S301531

WASHER

Thrust, 35 x 70 x 1.5 mm, Replaces E135120 Washer

1шт.

24

183515A1

THRUST WASHER,35.3mm ID x 70.5mm OD x 1.5mm Thk

35 x 70 x 1.5 mm, Replaces E135120 Washer

1шт.

The new thrust washers must not be used with the old. The new and the old thrust washers are different in color. The new thrust washers are gray in color and the old thrust washers are yellow.

1шт.

25

S301949

WASHER

notched

1шт.

26

E135098

SHIM,0.4mm Thk

(35.1 mm ID x 70 mm OD)

1шт.

26

E135099

SHIM,0.6mm Thk

(35.1 ID x 70 OD)

1шт.

26

E135100

SHIM,35.1mm ID x 70mm OD x 0.8mm Thk

(35.1 ID x 70 OD)

1шт.

26

E135101

SHIM,1.0mm Thk

(35.1 ID x 70 OD)

1шт.

26

E135102

SHIM,1.2mm Thk

(35.1 ID x 70 OD)

1шт.

26

199081A1

SHIM

1.4 mm Thick, Replaces E135103 Shim

1шт.

26

199082A1

SHIM,35.1mm ID x 70mm OD x 1.6mm Thk

1.6 mm Thick, Replaces E135104 Shim

1шт.

26

199083A1

SHIM

1.8 mm Thick, Replaces E135105 Shim

1шт.

26

199084A1

SHIM,35.1mm ID x 70mm OD x 2mm Thk

2.0 mm Thick, Replaces E135106 Shim

1шт.

26

199085A1

SHIM,35.1mm ID x 70mm OD x 2.2mm Thk

2.2 mm Thick, Replaces E135107 Shim

1шт.

26

199086A1

SHIM

2.4 mm Thick, Replaces E135108 Shim

1шт.

26

199087A1

SHIM

2.6 mm Thick, Replaces E135109 Shim

1шт.

26

199088A1

SHIM,2.8mm Thk

2.8 mm Thick, Replaces E135110 Shim

1шт.

27

103595A1

PROTECTION PLATE

Gasket, Gear, Used With Ref 22, 183188A1 Gear, On L129926 Transmission

1шт.

28

628-6012

BOLT,Hex, M6 x 12mm, Cl 10.9, Full Thd

Used with Ref 22, 183188A1 Gear and Ref 27, 103595A1 Gasket, On L129926 Transmission

6шт.

29

199096A1

PINION

Gear, Forward, Replaces 183188A1 Gear

1шт.
