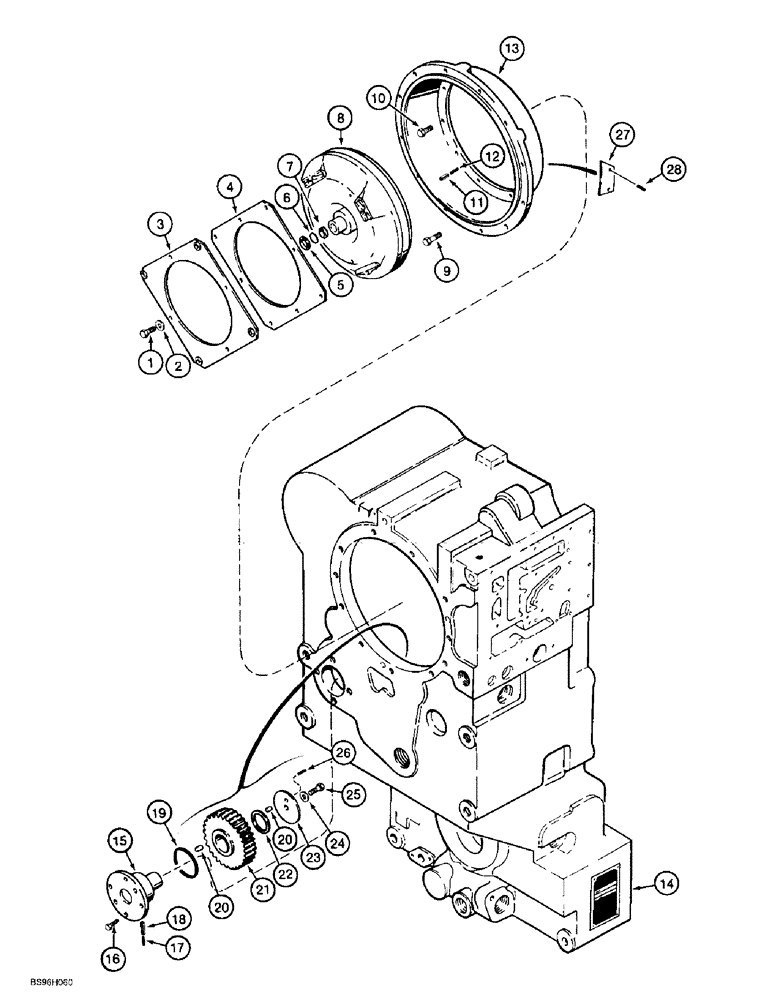

Запчасти Case 621B (6-10) - TRANSMISSION ASSEMBLY, IDLER GEAR, CONVERTER AND COVER (06) - POWER TRAIN

L129926

TRANSMISSION

ASSEMBLY, ZF No. 4642 054 018, Includes: Ref. 2 and 3 on Figure 6-02, Ref. 12 - 16 on Figure 6-04, Ref. 4 and 25 on Figure 6-06, and all items on Figures 6-08, this figure, 6-12 - 6-26 and 6-28 - 6-32, Serial Range: -JEE0052701

1шт.

LR129926

REMAN-TRANSMISSION

Remanufactured Transmission; 621B, Prior to P.I.N. JEE0052701, Model Number 4WG150, Stock Number 4642 054 018

1шт.

LC129926

CORE-TRANSMISSION

Return Number

1шт.

241952A1

TRANSMISSION

ASSEMBLY, ZF No. 4642 054 052, Includes: Ref. 2 and 3 on Figure 6-02, Ref. 12 - 16 on Figure 6-04, Ref. 4 and 25 on Figure 6-06, and all items on Figures 6-09, this figure, 6-12 - 6-24 and 6-27A - 6-32 JEE0052701 to

1шт.

241952A1R

REMAN-TRANSMISSION

Remanufactured Transmission; 621B, P.I.N. JEE0052701 & after, Model Number 4WG150, Stock Number 4642 054 052

1шт.

241952A1C

CORE-TRANSMISSION

Return Number

1шт.

1

111981A1

BOLT

hex, special

4шт.

2

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

3

S301485

DIAPHRAGM

PLATE flex, converter; stepped

1шт.

4

S301486

DIAPHRAGM

PLATE flex, converter, plain

1шт.

5

S301489

RING, SNAP

RING SNAP retaining, converter

1шт.

6

S301488

O-RING,3mm Thk x 18mm ID

converter

1шт.

7

S301487

WASHER

sealing, converter bolt

1шт.

8

102999A1

CONVERTER

transmission

1шт.

8

102999A1R

REMAN-TORQUE CONVERT

621B (3/93-12/98)

1шт.

8

102999A1C

CORE-TORQUE CONVERTR

Return Number

1шт.

9

628-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

3шт.

10

628-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

9шт.

11

E135027

PIN, SPLIT (COTTER)

PIN, COTTER 10 OD x 28 mm

2шт.

12

A52091

AXLE PIN

6 x 30 mm, replaces E135025 pin

2шт.

13

S301484

BELL HOUSING

converter, L129926 transmission

1шт.

13

185360A1

BELL HOUSING

converter, 241952A1 transmission

1шт.

14

103609A1

HOUSING

transmission

1шт.

15

S301527

SHAFT

AXLE stub, idler gear, L129926 transmission

1шт.

15

188317A1

PIN

AXLE stub, idler gear, 241952A1 transmission

1шт.

16

628-8020

BOLT,Hex, M8 x 20, 10.9, Full Thd

4шт.

17

S301830

SPLIT PIN/SAFETY PIN

1.5 x 10 mm long, used with S301527 stub axle, L129926 transmission

1шт.

18

S301829

DOWEL

PIN roll, 2.5 x 10 mm long, used with S301527 stub axle, L129926 transmission

1шт.

19

S300455

O-RING,3mm Thk x 57mm ID

stub axle

1шт.

20

S301528

ROLLER BEARING,35 mm ID x 55 mm OD x 28 mm

KIT needle bearing, set of two

1шт.

21

S301529

PINION

GEAR idler

1шт.

22

E135003

PISTON RING

idler gear

1шт.

23

S300456

BEARING WASHER

COVER bearing

1шт.

24

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

25

626-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

BOLT, 10-1.5 x 20 mm, class 10.9

1шт.

26

E135024

DOWEL

PIN roll, 4 x 10 mm

1шт.

27

S301490

LARGE PLATE

PLATE, LARGE converter

1шт.

28

S301491

STUD

grooved, used with item 27, S301490, plate

2шт.

29

185393A1

LID

PLATE converter, not shown, replaces Ref. 27, S301490 plate on some models

1шт.
