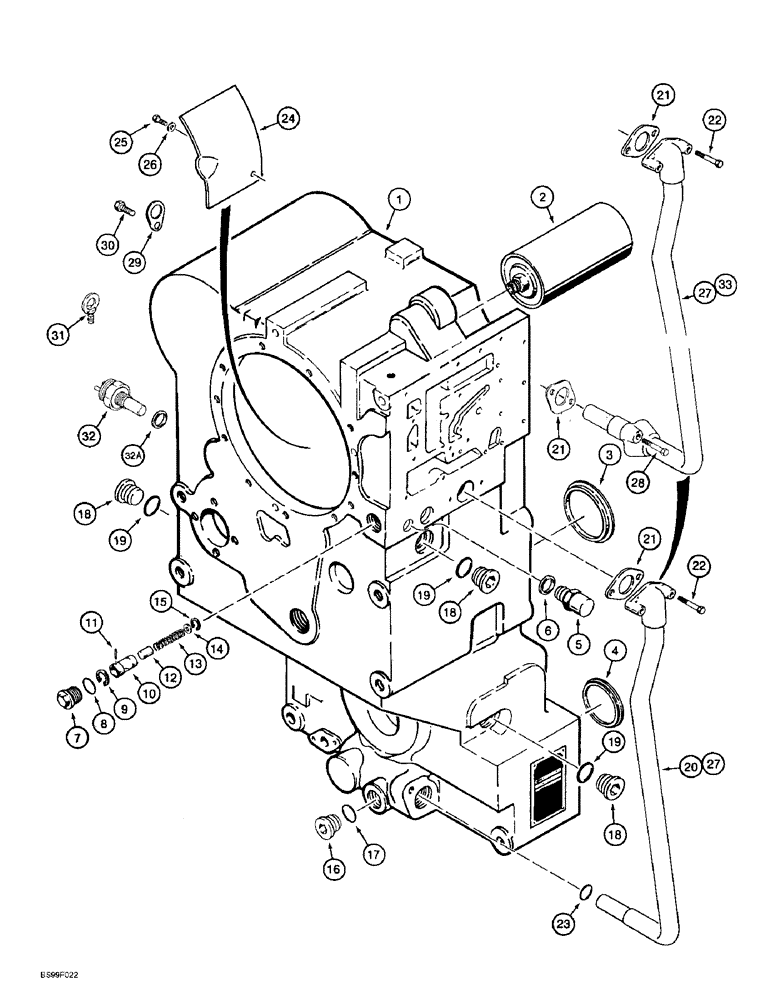

Запчасти Case 621B (6-08) - TRANSMISSION ASSEMBLY, HOUSING, PRIOR TO P.I.N. JEE0052701 (06) - POWER TRAIN

L129926

TRANSMISSION

ASSEBMLY, ZF No. 4642 054 018, loader, Includes: Ref. 2 and 3 on Figure 6-02, Ref. 12 - 16 on Figure 6-04, Ref. 4 and 25 on Figure 6-06, all items on this figure and Figures 6-10 - 6-26 and 6-28 - 6-32

1шт.

LR129926

REMAN-TRANSMISSION

Remanufactured Transmission; 621B, Prior to P.I.N. JEE0052701, Model Number 4WG150, Stock Number 4642 054 018

1шт.

LC129926

CORE-TRANSMISSION

Return Number

1шт.

1

103609A1

HOUSING

transmission

1шт.

2

299380A1

FILTER

FILTER, OIL transmission, replaces 185161A1 filter

1шт.

3

E135201

SEAL

PLUG - expansion, 106 mm

1шт.

4

E135169

PLUG

expansion, 80 mm

2шт.

5

241980A1

PLUG

hex, 14 mm-1.25, replaces 237251A1 plug

1шт.

6

1968430C1

O-RING

plug

1шт.

7

E135082

PLUG

hex, special

1шт.

8

A52368

SEAL

O-RING plug

1шт.

9

704095R1

SNAP RING,M28, Int

internal snap, special, replaces 933917R1 ring

1шт.

10

E135200

SPACER

SLEEVE valve, converter pressure

1шт.

11

E135126

DOWEL,4mm OD x 27.5mm L

PIN special

1шт.

12

E135166

VALVE POPPET

PISTON converter pressure

1шт.

13

E135134

SPRING

converter pressure valve

1шт.

14

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

15

E135020

CIRCLIP

RING snap

1шт.

16

E135080

PLUG

hex, special, 22 x 1.5 mm

1шт.

17

100080A1

O-RING,2mm Thk x 19mm ID, 70 Duro

plug, replaces 717183A1 O-ring

1шт.

18

129792A1

PLUG

hex socket, special, 18 x 1.5 mm

3шт.

19

106970A1

SEALING RING

plug, replaces S300495 O-ring

3шт.

20

S301614

PIPE

TUBE suciton, No Longer Available, Order Ref. 21, 27, 28

1шт.

For models with S301614 suction tube, order 130347A1 suction tube, S300507 gasket, and (2) 130346A1 bolts as a service replacement for S301614 suction tube only. Order 198801A1 suction tube for all other models.

1шт.

21

237302A1

GASKET

suction tube, replaces S300507 gasket

1шт.

22

827-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 10.9

2шт.

23

S302040

O-RING,3.5mm Thk x 26.6mm ID

suction tube to transmission

1шт.

24

S301526

PROTECTION PLATE

GUARD splash, internal housing

1шт.

25

614-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

3шт.

26

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

27

130347A1

PIPE

TUBE suction, Service Replacement For S301614 Tube Only

1шт.

For models with S301614 suction tube, order 130347A1 suction tube, S300507 gasket, and (2) 130346A1 bolts as a service replacement for S301614 suction tube only. Order 198801A1 suction tube for all other models.

1шт.

28

130346A1

BOLT

8-1.25 x 30 mm

2шт.

29

100081A1

LARGE PLATE

PLATE, LARGE support

2шт.

30

185380A1

SCREW

BOLT hex, special

2шт.

31

185381A1

BOLT

BOLT hex, lift eye

1шт.

32

315733A1

SENSOR

Transmission Speed, Replaces S300494

1шт.

Service bulletin NWL SB 005 94 gives set-up information & the tools for installation.

1шт.

32a

S300501

SHIM,2mm Thk

If used

1шт.

32a

S300506

SHIM,1.8mm Thk

If used

1шт.

32a

S300505

BLOCK

SHIM, 1.6 mm thick, if used

1шт.

32a

S300497

SHIM,1.5mm Thk

If used

1шт.

32a

S300498

SHIM,1.4mm Thk

If used

1шт.

32a

S300499

SHIM,1.2mm Thk

If used

1шт.

32a

S300500

SHIM,1mm Thk

If used

1шт.

32a

S300502

SHIM,0.5mm Thk

If used

1шт.

32a

S300503

SHIM,0.3mm Thk

If used

1шт.

32a

S300504

SHIM,0.2mm Thk

If used

1шт.

33

198801A1

TUBE

TUBE suction, replaces 182856A1 tube

1шт.

For models with S301614 suction tube, order 130347A1 suction tube, S300507 gasket, and (2) 130346A1 bolts as a service replacement for S301614 suction tube only. Order 198801A1 suction tube for all other models.

1шт.

34

E135010

PLUG

22 mm, Not Illustrated

1шт.

35

E135011

PLUG

30 mm, Not Illustrated

1шт.
